While it offers almost the same mechanical performance as stainless steel knotted rope mesh, the ferrule system gives it a clean, contemporary look, stable panel geometry, and makes installation easier on straight, curved, or irregular structures.
Types of Ferrules for Stainless Steel Rope Mesh

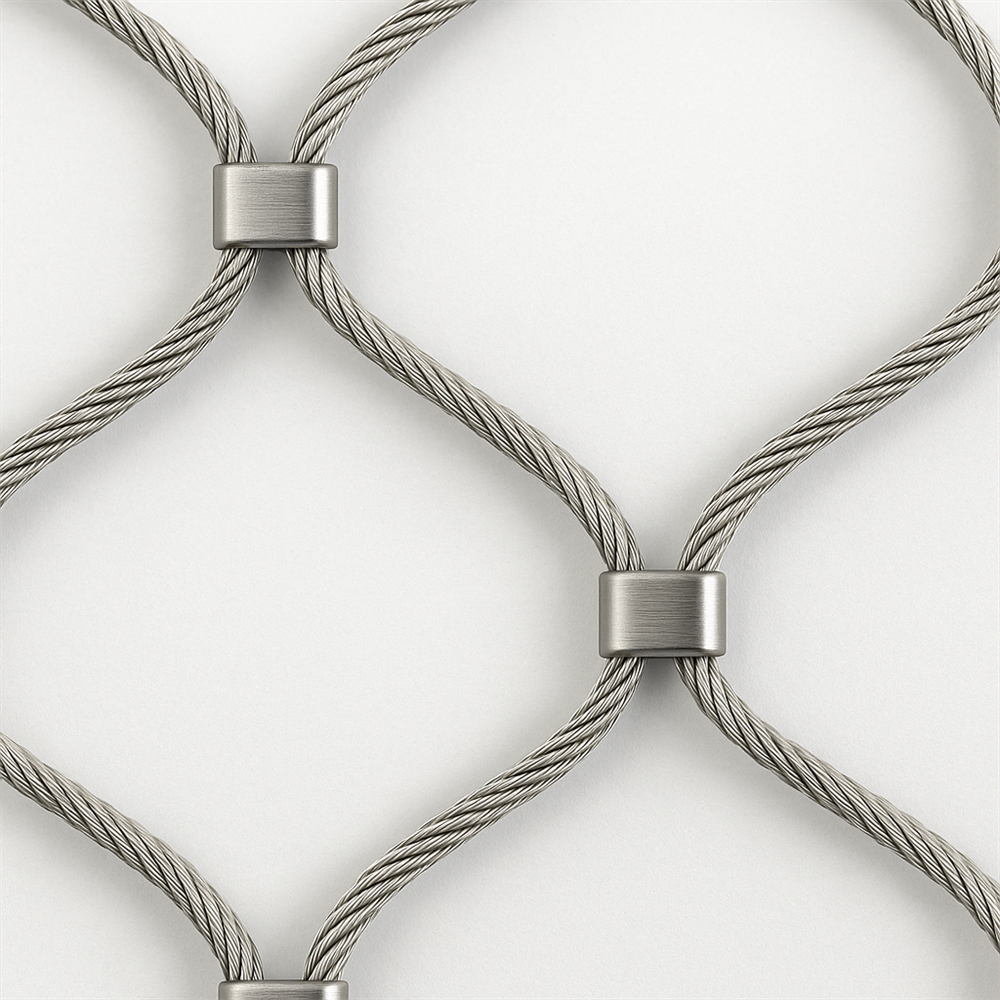

Stainless steel oval ferrules
Stainless steel oval ferrules are the most common type, swaged onto two overlapping cables to create strong, neat diamond-shaped mesh openings that match the look and corrosion resistance of the rope.
End ferrules (terminal ferrules)
End ferrules are pressed on the free ends of the cables to form clean terminations or loops, improving safety at the edges and allowing easy connection to frames or tensioning hardware.
Threaded ferrules
Threaded ferrules have internal or external threads so the cable can be directly connected to turnbuckles, bolts or other fittings, making alignment and tension adjustment more precise and convenient.
Cross ferrules and clamps
Cross ferrules or X-shaped clamps connect intersecting cables at right angles, helping to build rigid cable grids or reinforce specific areas of the mesh where additional support is required.
Stop ferrules
Stop ferrules are small end sleeves pressed on a single cable to act as a mechanical stop, preventing the cable from slipping through holes, slots or other fittings in the support structure.
Stainless Steel Rope Mesh with Ferrules – Overview Photos

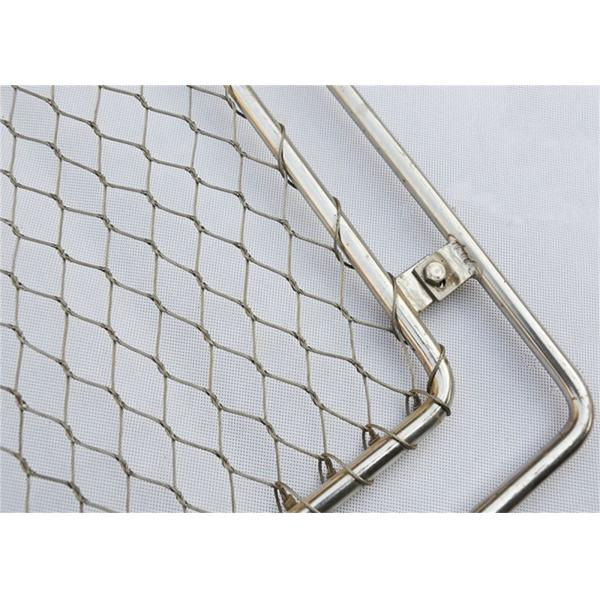

| Stainless steel rope mesh with ferrules is solid and firm. | Fixed on a rigid frame or fixture, stainless steel rope mesh with ferrules is resistant to heavy impact. |
 |  |
What Is Stainless Steel Rope Mesh with Ferrules?

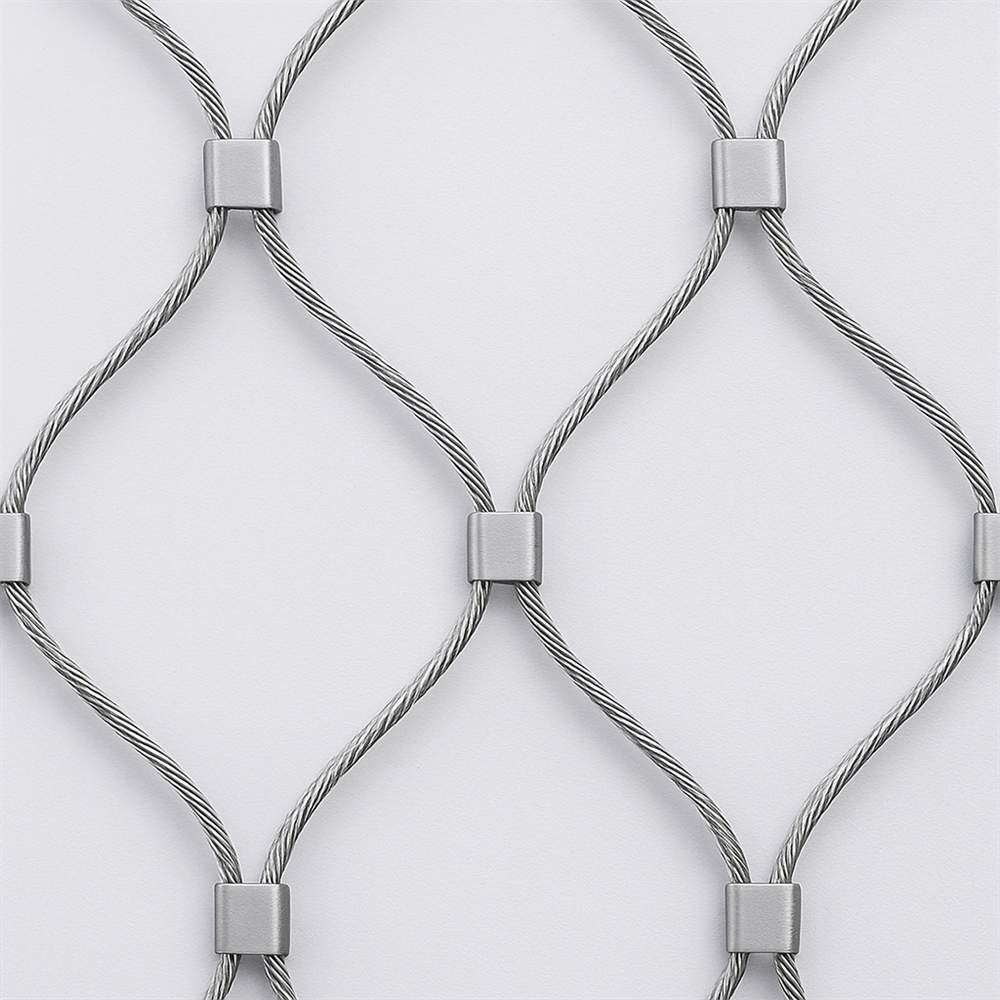

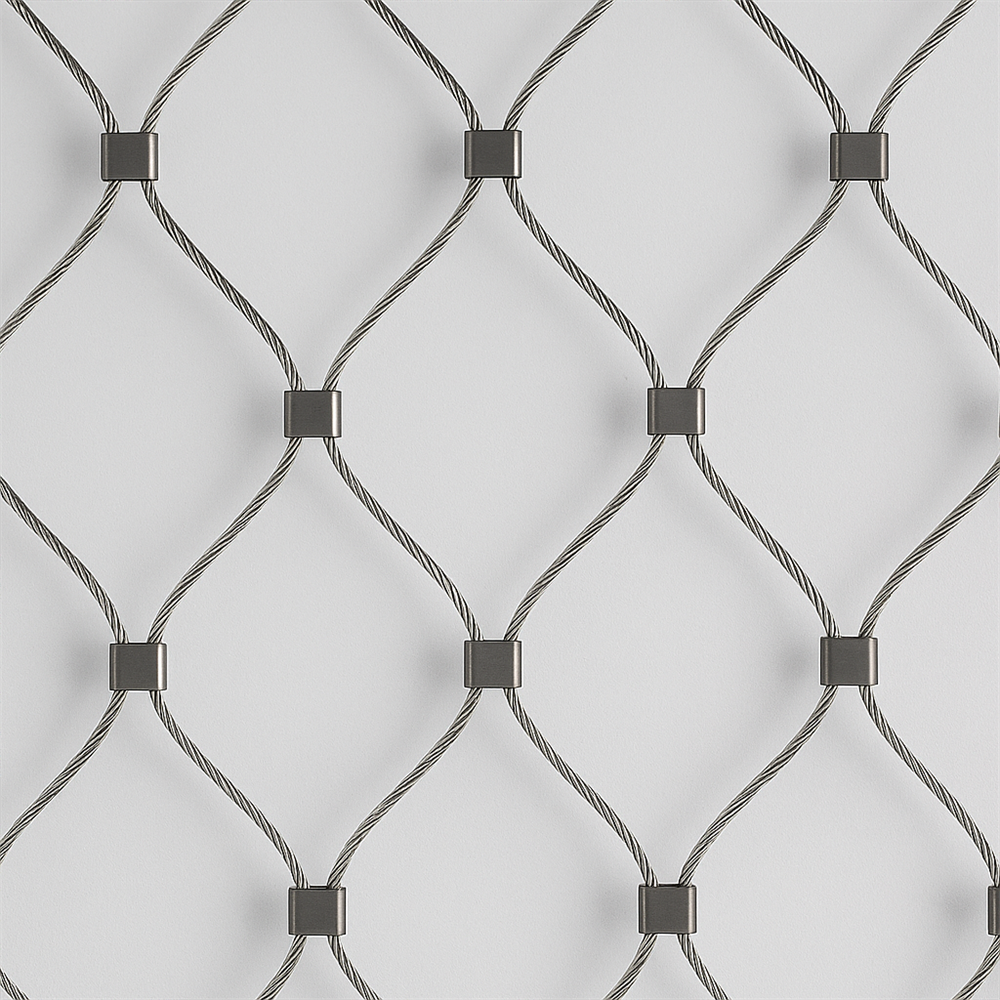

Stainless steel rope mesh with ferrules is woven from 7×7 or 7×19 stainless steel wire ropes and then crimped with high-precision ferrules made from the same stainless steel grade, with each ferrule firmly joining two neighboring cables so that the whole mesh forms continuous diamond-shaped openings and works as one strong and flexible net.
The standard diamond angle for stainless steel rope mesh with ferrules is 60°, which offers excellent load distribution and a balanced visual effect, while other angles such as 10° or 90° can be customized to match unique architectural designs and special layouts.
Features of Stainless Steel Rope Mesh with Ferrules
Features:
- Lightweight and highly flexible. Stainless steel rope mesh with ferrules is light in weight and allows flexible adjustment of width, length, rope diameter and mesh aperture, and it can also be manufactured in diagonal or irregular shapes to follow complex structures, making installation easy in almost any condition.
- High strength and excellent fatigue and impact resistance. The ferrules clamp the stainless steel ropes tightly so that the stainless steel rope mesh with ferrules behaves as a single solid structure with outstanding resistance to fatigue, vibration and impact loads.
- Soft, safe and easy to handle. The 7×7 and 7×19 rope constructions give stainless steel rope mesh with ferrules a smooth and soft surface that can be curved and folded for transport and installation without hurting hands, people, animals or plants.
- Superior corrosion resistance and long service life. Produced from 304, 304L, 316 or 316L stainless steel, stainless steel rope mesh with ferrules is highly resistant to rust and weathering, providing a typical service life of more than 30 years in most outdoor environments.
- Outstanding transparency and elegant appearance. The diamond-shaped openings and neat ferrule pattern provide excellent perspectivity and a grand architectural look, so stainless steel rope mesh with ferrules is often used as bird aviaries, zoo enclosures, safety balustrades, green wall support mesh and decorative façade elements.
- Maintenance-free and environmentally friendly. Stainless steel rope mesh with ferrules contains no toxic coatings or harmful substances, does not rust or deform easily, requires almost no maintenance once installed and is fully recyclable at the end of its service life.

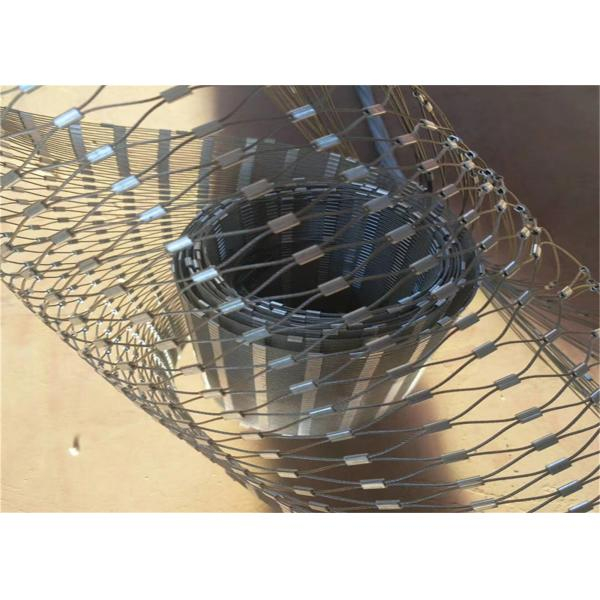

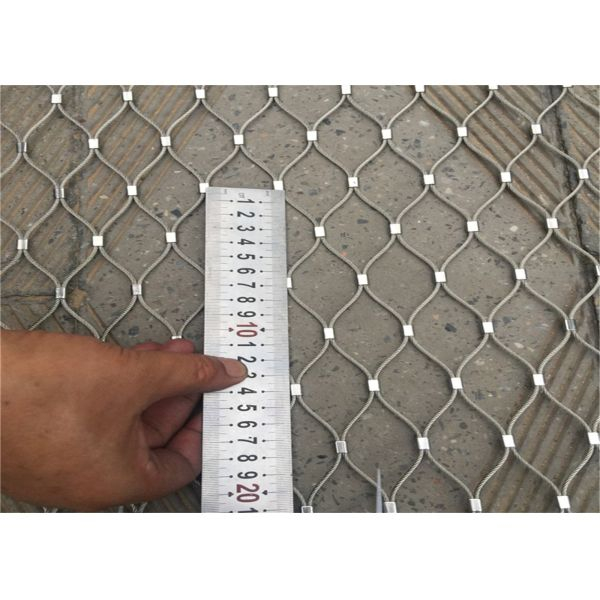

| High flexibility of stainless steel rope mesh with ferrules allows use in many conditions. | Ferrules clamp the cable mesh tightly and firmly. | Uniform diamond mesh openings create a grand appearance. |
 |  |  |
Applications of Stainless Steel Rope Mesh with Ferrules
With its unique combination of strength, flexibility, transparency and durability, stainless steel rope mesh with ferrules is widely used in architectural, safety and zoo projects.
- Zoo and animal enclosures. Aviaries, big-cat enclosures, monkey islands, bird cages and other wildlife barriers use stainless steel rope mesh with ferrules to provide safety while ensuring maximum visibility and comfort for animals and visitors.
- Stainless steel balustrade mesh. Balconies, stairways, bridges and mezzanines are protected by stainless steel rope mesh with ferrules acting as a fall protection barrier that blends perfectly with modern architecture.
- Green wall and plant support mesh. Green wall Stainless steel rope mesh with ferrules is an ideal climbing support for vertical gardens and green façades, allowing plants to grow freely while maintaining a neat and stable structure.
- Facade and interior decoration. Designers use stainless steel rope mesh with ferrules as decorative partitions, ceiling nets, feature walls and façade cladding to achieve transparent and stylish effects.
- Sports, playground and public safety protection. Stadiums, playgrounds and public areas use stainless steel rope mesh with ferrules as safety nets, anti-ball barriers and edge protection nets.
Packaging Details of Stainless Steel Rope Mesh with Ferrules
- The inner packing of stainless steel rope mesh with ferrules is water-proof cloth to keep the mesh clean and dry.
- The outer packing is strong wooden cases suitable for long-distance transportation and repeated loading and unloading.
- Each panel or roll of stainless steel rope mesh with ferrules is fixed into a bundle with durable strings or straps to avoid loosening.
- Special packing methods, labels and pallets can be provided according to customers’ requirements.
Specification of Stainless Steel Rope Mesh with Ferrules
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BM-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BM-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BM-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BM-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BM-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BM-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BM-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BM-08 | 7 × 7 | 5/64 | 2.0 | 100 × 173 | 3.17 |
| BM-09 | 7 × 7 | 5/64 | 2.0 | 90 × 156 | 3.17 |
| BM-10 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
| BM-11 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
| BM-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BM-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BM-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BM-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BM-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BM-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BM-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BM-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
How to Order Stainless Steel Rope Mesh with Ferrules
When you send an inquiry for stainless steel rope mesh with ferrules, please provide basic project information such as height, length, installation position, preferred rope diameter, mesh aperture and stainless steel grade so that we can recommend suitable specifications and supply accurate quotations.
Stainless Steel Rope Mesh with Ferrules – FAQ
What is stainless steel rope mesh with ferrules?
rope mesh with ferrules is a flexible mesh made from stainless steel wire ropes that are connected by pressed stainless steel ferrules, forming strong diamond-shaped openings used for safety, enclosure and decorative applications.
What are the main advantages of stainless steel with ferrules?
Stainless steel rope mesh with ferrules offers high strength, excellent flexibility, corrosion resistance, long service life, good transparency and an elegant appearance, making it ideal for modern architectural and safety projects.
Which stainless steel grades are used for rope mesh with ferrules?
Most stainless steel rope mesh with ferrules is manufactured from AISI 304, 304L, 316 or 316L stainless steel, with 316 and 316L recommended for coastal, high humidity or highly corrosive environments.
Is stainless steel rope mesh with ferrules suitable for outdoor use?
Yes, stainless steel rope mesh with ferrules is specifically designed for outdoor use and can withstand rain, UV, temperature changes and most environmental conditions when the correct stainless steel grade is selected.
What are the common applications of rope mesh with ferrules?
Common applications of rope mesh with ferrules include zoo aviaries and animal enclosures, stainless steel balustrade mesh for stairs and bridges, green wall and plant support systems, safety nets, façade cladding and decorative partitions.
How strong is rope mesh with ferrules?
The strength of rope mesh with ferrules depends on the rope diameter and construction, but even small diameters can reach high breaking forces, providing reliable fall protection and animal containment when correctly specified and installed.
Can the aperture and rope diameter of rope mesh with ferrules be customized?
Yes, both the rope diameter and the diamond aperture of stainless steel rope mesh with ferrules can be customized to meet different safety requirements, design preferences and animal sizes, according to your project drawings or specifications.
How is stainless steel rope mesh with ferrules installed?
Stainless steel rope mesh with ferrules is usually supplied as prefabricated panels that are fixed to frames, edge flats or tensioned cables using stainless steel hardware, and the mesh is then tensioned evenly to create a flat, secure and visually clean surface.
How long does rope mesh with ferrules last?
With proper material selection and installation, stainless steel rope mesh with ferrules can provide more than 30 years of service life, remaining structurally stable and aesthetically pleasing with minimal maintenance.
How do I choose the right stainless steel rope mesh with ferrules for my project?
To choose the right rope mesh with ferrules, you should consider the application, required safety level, span, desired transparency, environmental conditions and budget, then select a suitable combination of stainless steel grade, rope diameter and mesh aperture, or consult the manufacturer for recommendations.
