Stainless steel safety netting (also called stainless steel cable mesh or wire rope mesh) is a modern safety solution designed to protect people, animals and assets without blocking views or light. Made from multi-strand stainless steel cables connected into a diamond-shaped mesh, it combines high strength, excellent corrosion resistance and long service life with a clean, architectural appearance.
At POLYMETAL, our 316L High Strength Stainless Steel Cable Mesh Safety Netting is engineered for demanding environments – from zoo enclosures and bird aviaries to balustrades, bridges and construction safety barriers.
1. Material and Construction
Our stainless steel safety netting is manufactured from high-quality austenitic stainless steels:
- Materials: SS304, SS316, SS316L
- Rope Diameters: 1.2 mm, 1.5 mm, 1.6 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm
- Mesh Openings (Hole Size): 30 mm, 35 mm, 38 mm, 40 mm, 50 mm, 60 mm, 75 mm, 100 mm, and custom sizes
The mesh is formed by crossing stainless steel wire ropes and connecting them at each intersection with ferrules or by knotted construction, creating flexible diamond-shaped openings. This structure works in tension to deliver outstanding load-bearing performance while remaining lightweight and visually unobtrusive.
2. Mesh Types and Styles
We offer two main mesh types to suit different design and performance requirements:

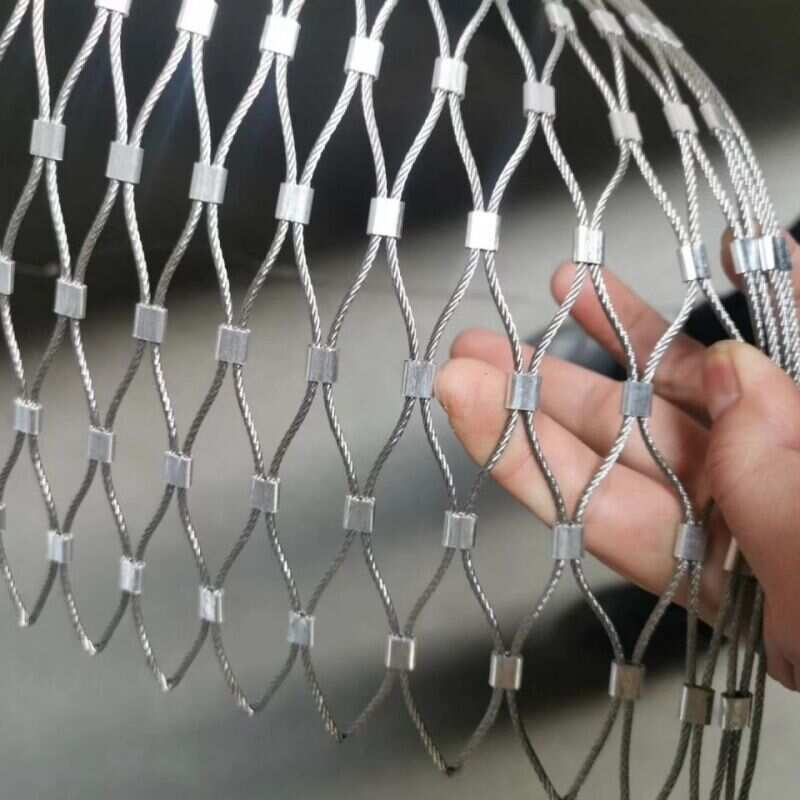

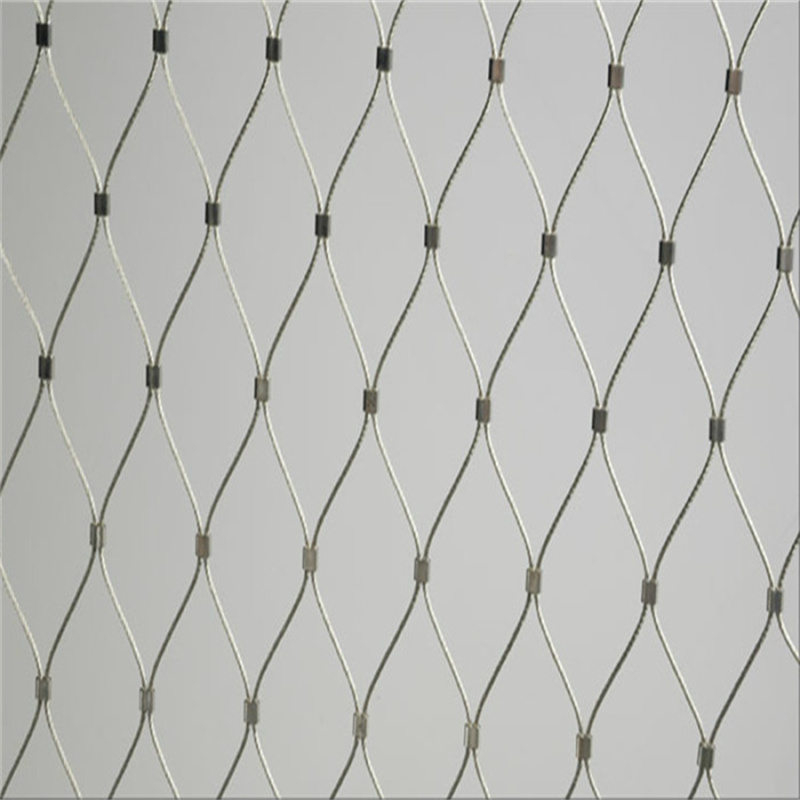

● Ferruled Type

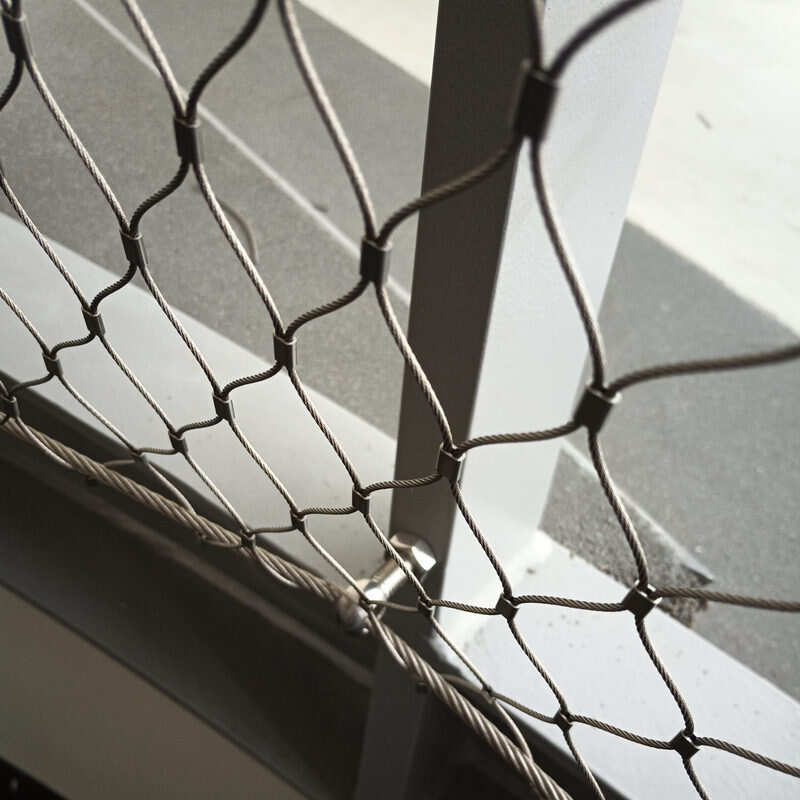

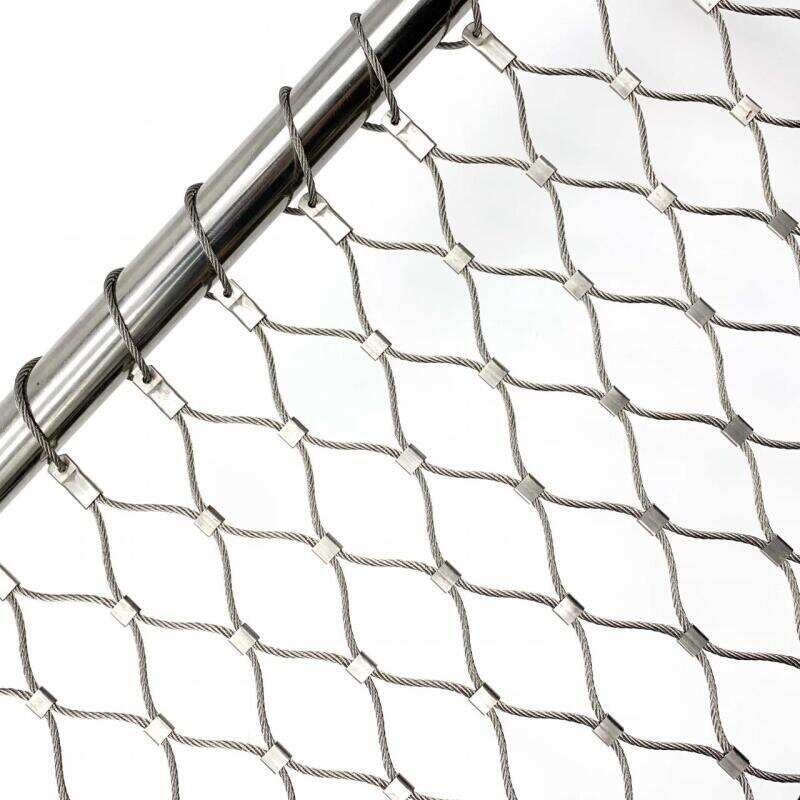

Cables are joined with stainless steel ferrules, creating smooth, uniform diamonds and a highly refined architectural look. Ideal for:
- Balustrades and stair infill
- Facades and tensile screens
- Public areas where appearance is critical
● Knotted Type
Cables are directly knotted at intersections, giving a slightly more flexible mesh with excellent strength and adaptability. Ideal for:

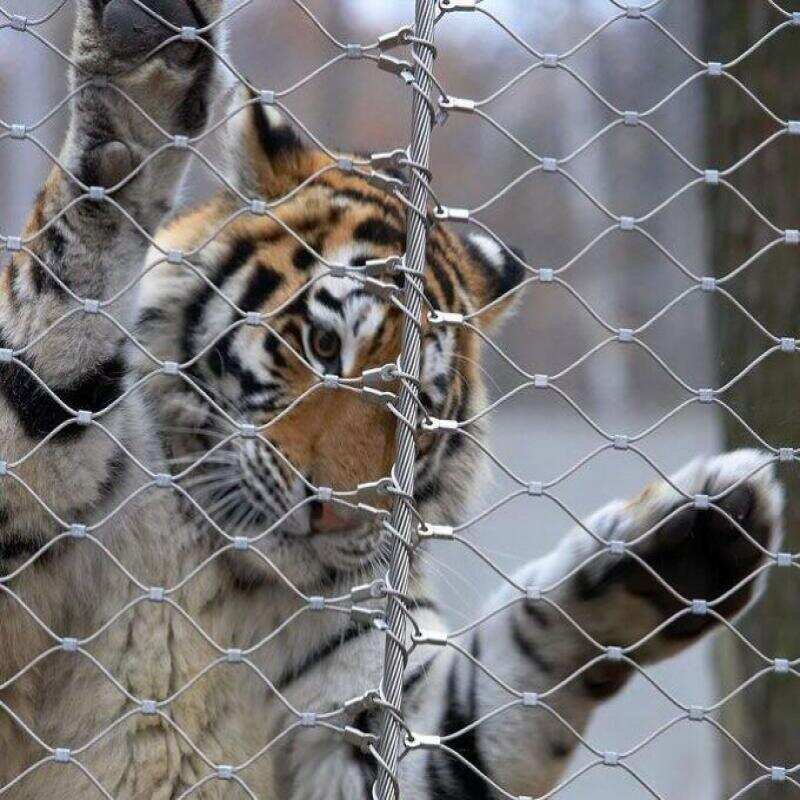

- Animal enclosures and zoo mesh
- Bird aviaries and overhead roofs
- Complex 3D shapes and curved structures
Orientation Options
- Horizontal or Vertical diamond orientation to match your design concept
- Custom mesh style design to align with other systems such as chain link, high-security fence lines, or architectural facades
Stainless Steel Safety Netting – Example Specification Table (Ferruled, 60° Diamond)
| No. | Mesh Aperture (MW × MH, mm) | Wire Rope Ø (mm) | Rope Structure | Min. Cable Break Load F (kN) | Open Area / Porosity (%) | Mesh Angle (°) | Materials (Cable & Ferrules) | Weight (kg/m²) |
|---|---|---|---|---|---|---|---|---|
| 1 | 30 × 53.5 | 1.5 | 7×7 | 1.86 | 86 | 60 | AISI 316 (1.4401) | 1.12 |
| 2 | 40 × 70.5 | 1.5 | 7×7 | 1.86 | 90 | 60 | AISI 316 (1.4401) | 0.76 |
| 3 | 50 × 88.1 | 1.5 | 7×7 | 1.86 | 92 | 60 | AISI 316 (1.4401) | 0.57 |
| 4 | 60 × 105.2 | 1.5 | 7×7 | 1.86 | 94 | 60 | AISI 316 (1.4401) | 0.46 |
| 5 | 80 × 139.3 | 1.5 | 7×7 | 1.86 | 95 | 60 | AISI 316 (1.4401) | 0.32 |
| 6 | 35 × 62.0 | 2.0 | 7×19 | 2.88 | 84 | 60 | AISI 316 (1.4401) | 1.68 |
| 7 | 50 × 88.1 | 2.0 | 7×7 | 2.88 | 90 | 60 | AISI 316 (1.4401) | 1.00 |
| 8 | 60 × 105.6 | 2.0 | 7×7 | 2.88 | 91 | 60 | AISI 316 (1.4401) | 0.79 |
| 9 | 80 × 139.6 | 2.0 | 7×7 | 2.88 | 94 | 60 | AISI 316 (1.4401) | 0.56 |
| 10 | 100 × 174.3 | 2.0 | 7×7 | 2.88 | 95 | 60 | AISI 316 (1.4401) | 0.43 |
| 11 | 40 × 71.4 | 3.0 | 7×19 | 5.12 | 79 | 60 | AISI 316 (1.4401) | 3.37 |
| 12 | 50 × 89.6 | 3.0 | 7×19 | 5.12 | 84 | 60 | AISI 316 (1.4401) | 2.48 |
| 13 | 60 × 105.9 | 3.0 | 7×19 | 5.12 | 87 | 60 | AISI 316 (1.4401) | 1.94 |
| 14 | 80 × 140.0 | 3.0 | 7×19 | 5.12 | 90 | 60 | AISI 316 (1.4401) | 1.34 |
| 15 | 100 × 175.0 | 3.0 | 7×19 | 5.12 | 92 | 60 | AISI 316 (1.4401) | 1.01 |
3. Surface Finish Options
To meet aesthetic requirements and environmental conditions, stainless steel safety netting can be supplied with:
- Natural stainless steel finish

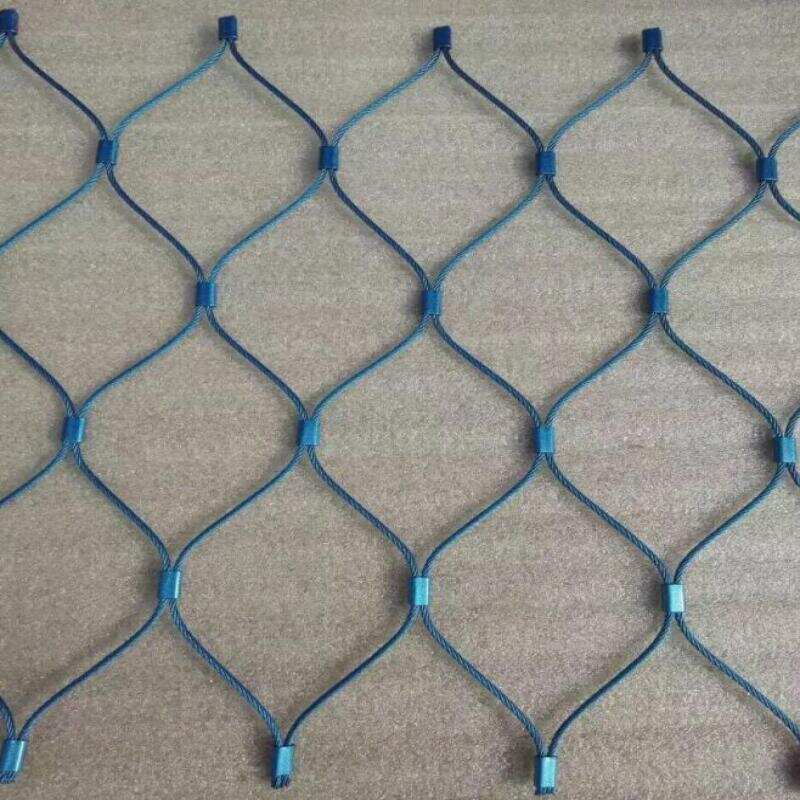

- PVC coated finish

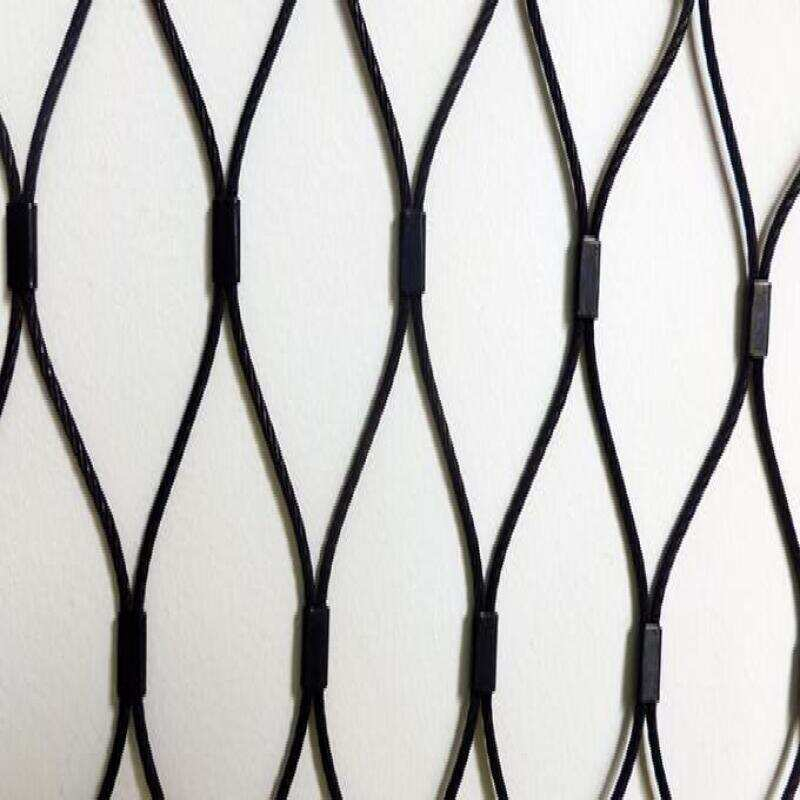

- Black oxide finish for a low-reflection, discreet appearance (perfect when you want the net to “disappear” visually, e.g. in zoos or high-end architecture)
4. Custom-Made Panels for Your Project
Every project is different, so our cable mesh is custom manufactured in width and length to suit your exact application:
- Panels are produced to your required height, width and mesh aperture
- Finished as a diamond mesh style when stretched at a 60° angle

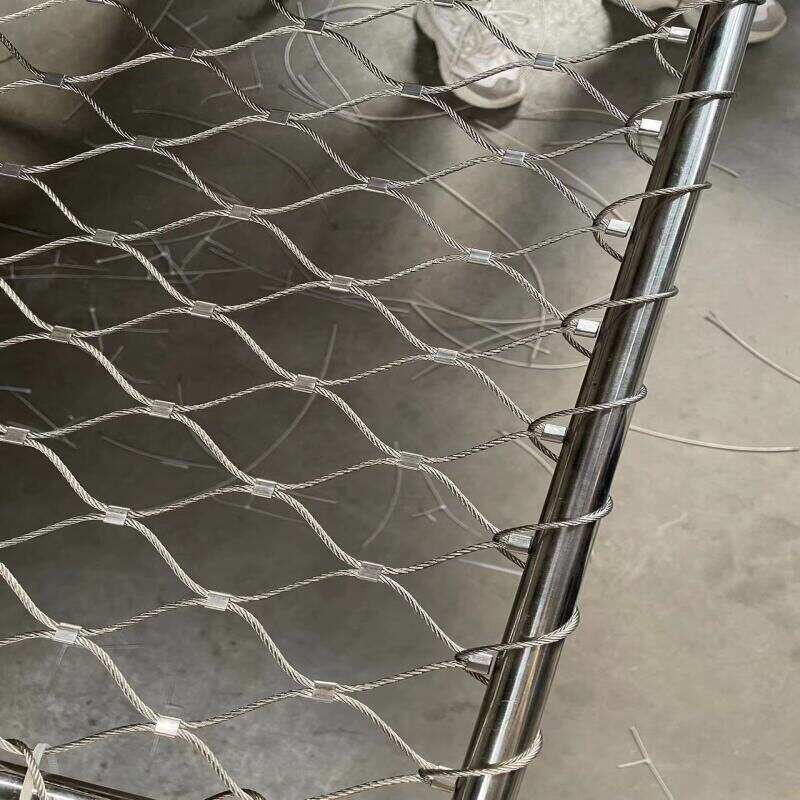

- Easily integrated with frames, posts, edge protection barriers and existing steel structures
This flexibility makes stainless steel safety netting compatible with a wide range of our other products, such as Birds Aviary systems, Rope Mesh, Zoo Mesh, Edge Protection Barriers, High Security Wire Fence, Temporary Fencing and Construction Fence.
5. Key Advantages of Stainless Steel Safety Netting
High Strength & Safety
- Multi-strand stainless steel cables offer excellent tensile strength and impact resistance
- Designed to prevent falls, stop thrown objects and safely contain animals
- Load is distributed across many cables and joints to avoid local failure
Long-Term Durability
- SS316 / 316L options are ideal for marine, coastal and industrial atmospheres
- Outstanding resistance to rust, UV exposure and chemicals
- No repainting or recoating required – simply clean with water or mild detergent
Transparency & Aesthetic Appeal
- Slim cables and large diamond openings provide very high open area
- Maintains natural light, airflow and visibility
- Ideal where safety is critical but unobstructed views are required (bridges, balconies, viewing decks, stadium edges, aviaries)
Flexible & Lightweight
- Easily wraps around curves, ramps, roofs and irregular shapes
- Lightweight system reduces the need for heavy supporting steelwork
- Can be combined with other systems like Hercules fencing, Clearvu fencing, chain wire fencing and more
6. Typical Applications
Stainless steel cable mesh safety netting is used across many of your product categories and project types:

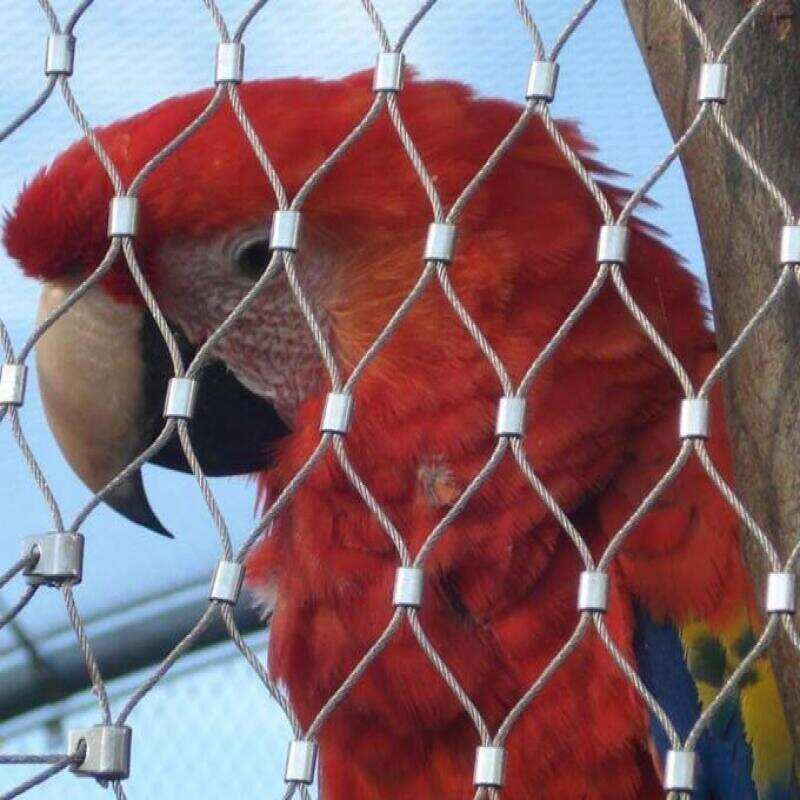

- Birds Aviary & Zoo Mesh: Secure, escape-proof, animal-friendly enclosures

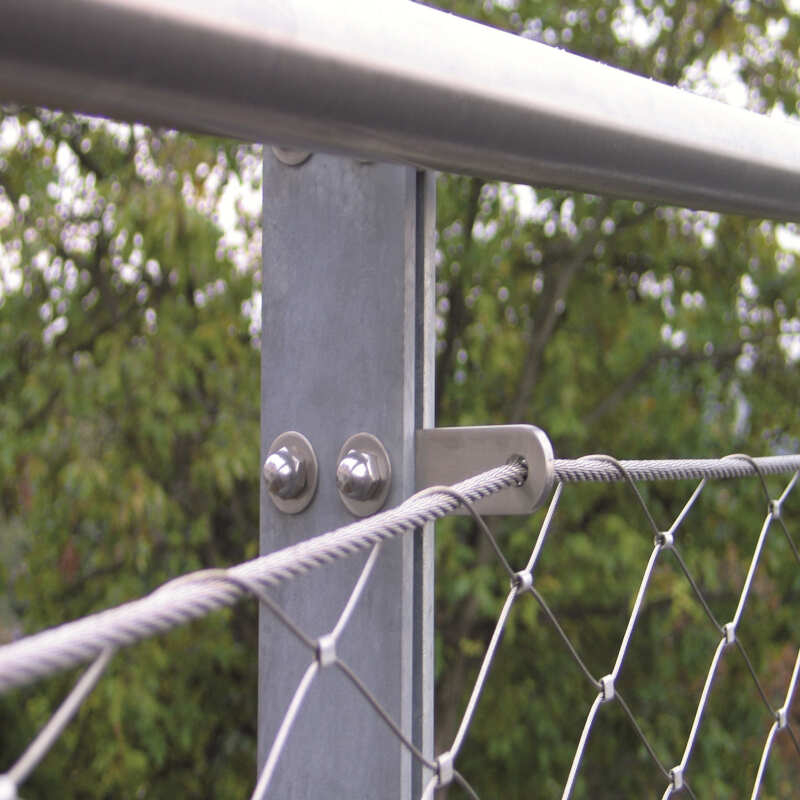

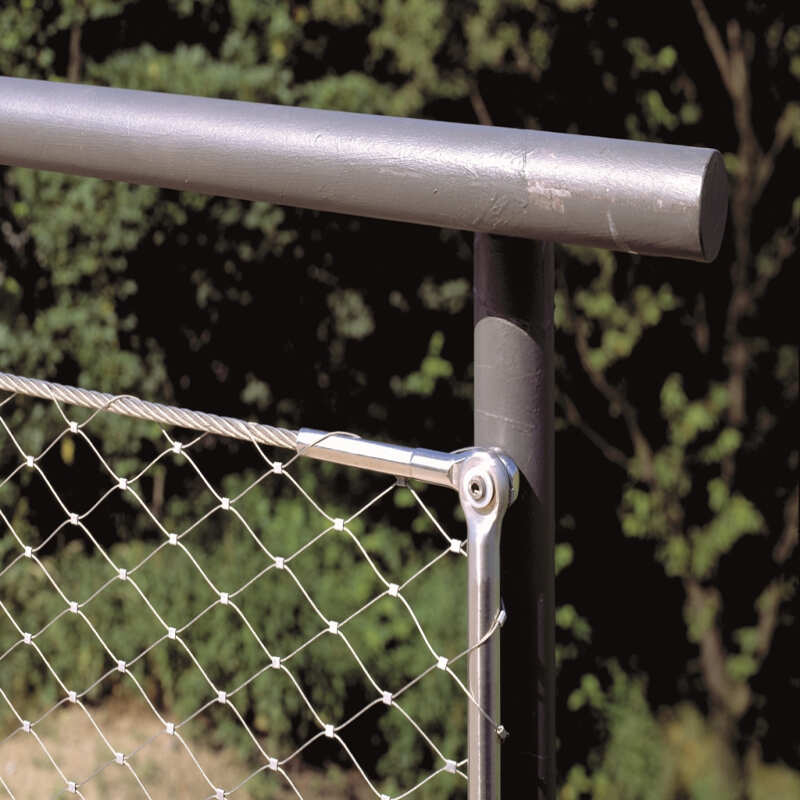

- Balustrades & Stair Infill: Modern, safe infill panels for public and residential buildings
- Bridges & Walkways: Fall protection on pedestrian bridges, skywalks and platforms
- Edge Protection Barriers & Construction Safety: Perimeter safety on high-risk areas
- Green Walls & Facades: Support mesh for climbing plants and architectural “second skin” facades
- Stadiums & Arenas: Anti-throw and crowd safety netting where visibility is crucial
7. Why Choose Our 316L High Strength Stainless Steel Cable Mesh?
- Certified quality (ISO) with strict control over wire diameter, mesh size and ferrule pressing
- High production capacity – up to 10,000 m² per week
- MOQ from 100 m² to suit both medium and large projects
- Competitive pricing (from approx. US$12.88/m², depending on specification)
- Technical support on design, selection of mesh aperture and cable diameter, and connection to your existing fencing systems
