Stainless Steel Safety Window Cable Mesh 12 Ultimate Options

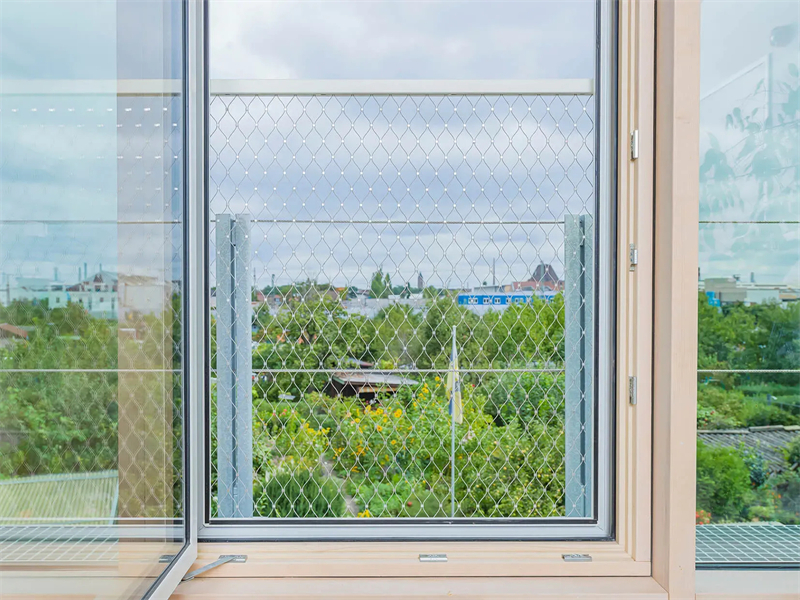

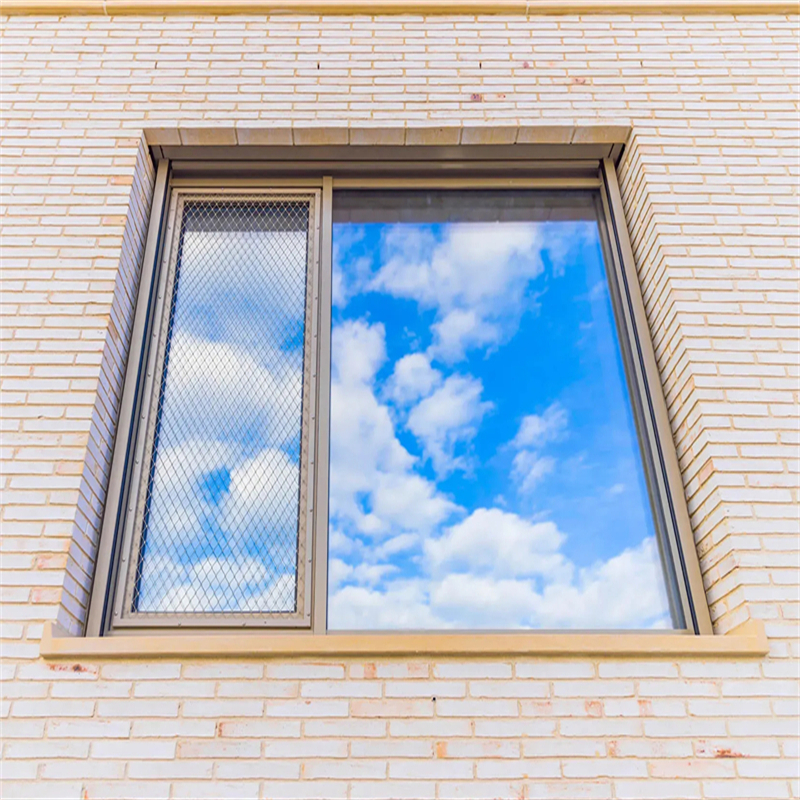

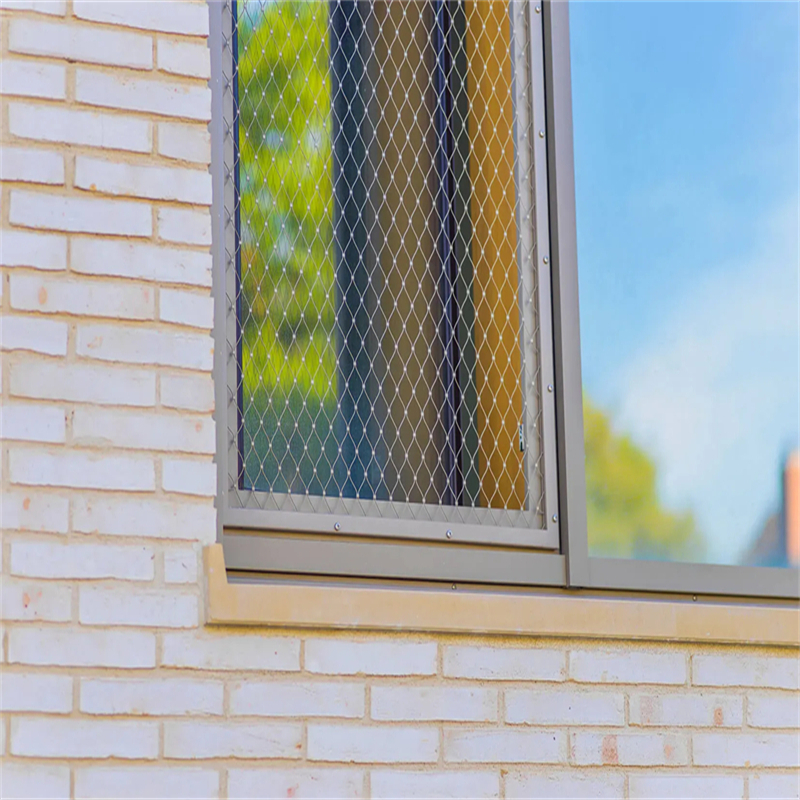

Stainless steel safety window cable mesh is a flexible, high-strength safety net installed in front of windows and high openings. It is designed to prevent falls, stop objects from dropping and make intrusion more difficult, while still allowing full light, air and visibility.The mesh is made from stainless steel wire ropes arranged in two directions and either interwoven (knotted) or connected with ferrules to form diamond-shaped openings. Each panel is custom-made to the exact size of the window and fixed to the frame or surrounding structure with stainless steel fittings.Compared with traditional window bars or heavy welded grilles, stainless steel safety window cable mesh is lighter, more transparent and more elegant. It is suitable for residential apartments, stair windows, schools, hospitals, offices and high-rise buildings where safety and modern design are both important.Wire rope mesh (also called cable mesh) is made from high quality stainless steel wire rope. It offers excellent resistance to corrosion and UV rays and has a long service life even in harsh environments. Its biggest advantages are resilience and flexibility. The mesh can be supplied as knotted mesh, ferrule type mesh, woven square mesh or square mesh with cross clamps, and is widely used by architects in modern projects.

Stainless Steel Safety Window Cable Infilled Mesh Optional

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	4 × 4	102 × 102	1600
1/8	3.2	3 × 3	76 × 76	1600
1/8	3.2	2 × 2	51 × 51	1600
3/32	2.4	4 × 4	102 × 102	920
3/32	2.4	3 × 3	76 × 76	920
3/32	2.4	2 × 2	51 × 51	920
5/64	2.0	3 × 3	76 × 76	676
5/64	2.0	2 × 2	51 × 51	676
5/64	2.0	1½ × 1½	38 × 38	676
1/16	1.6	3 × 3	76 × 76	480
1/16	1.6	2 × 2	51 × 51	480
1/16	1.6	1½ × 1½	38 × 38	480
1/16	1.6	1 × 1	25.4 × 25.4	480
3/64	1.2	1½ × 1½	38 × 38	270
3/64	1.2	1 × 1	25.4 × 25.4	270
3/64	1.2	4/5 × 4/5	20 × 20	270

Main Features of Stainless Steel Safety Window Cable Mesh

The mesh is clipped to the cable for a clean, secure connection.
The hole size and cable diameter can be modified according to project requirements.
Can be made to customer orders and statically tested, especially suitable for facades and safety applications.
High strength and strong toughness, can curve and fold at free angles, easy for transportation and installation.
Anti-corrosive and rust-resistant, can be reused.
Resists chewing by rodents and other pests.
Can bear heavy snow loads and strong wind pressure.
Contains no toxic material, safe and environmentally friendly.

Technology – Types of Stainless Steel Safety Window Cable Mesh

There are two main types of stainless steel rope mesh used as safety window cable mesh.

Knotted cable mesh is a plain weave mesh where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft cables generally have the same diameter. The combination is inter-woven.

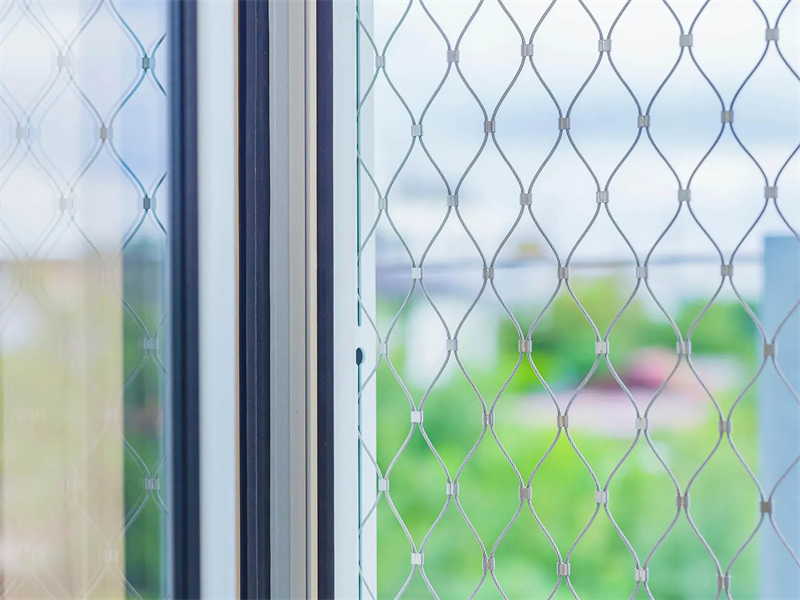

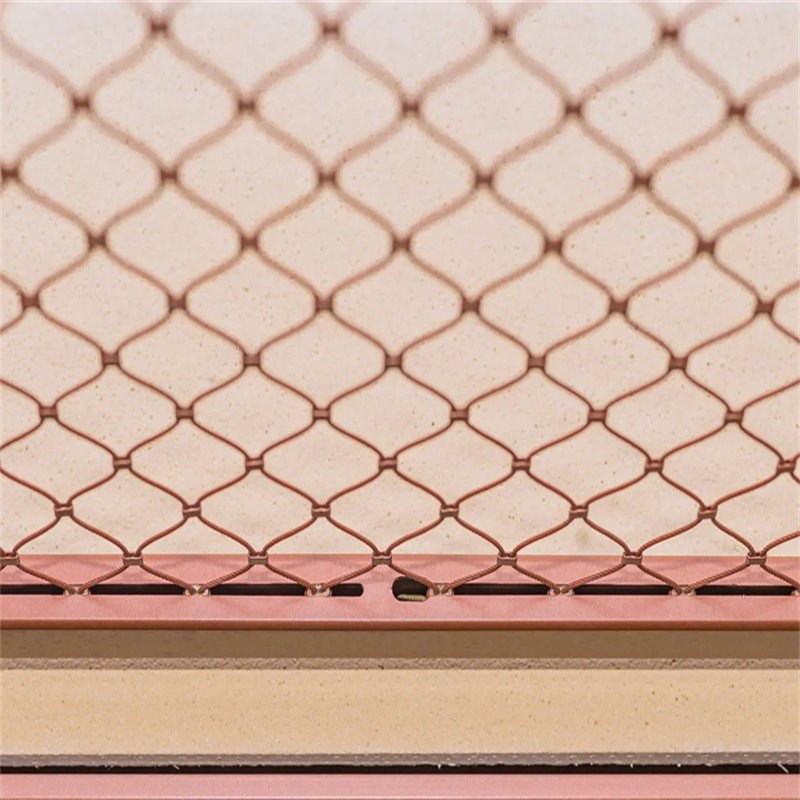

Ferrule cable mesh has the same physical properties as knotted mesh, but the cables are connected by stainless steel ferrules. This creates very neat diamond openings and is widely used in architectural projects.

Flexible Stainless Steel Cable Mesh
Type	Knotted cable mesh	Ferrule cable mesh
Image	Inter-woven cable net	Cable net with stainless ferrules
Combination	Inter-woven	Seamless ferrule
Hole pattern	90° diamond hole	60° diamond hole
Material	SS304, SS316, SS316L and similar grades
Cable diameter	1 – 4 mm
Cable structure	7 × 7 (1.5 mm, 2 mm, 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size	20 – 200 mm
Mesh orientation	Horizontal or vertical installation
Feature summary	High quality material, high flexibility, anti-corrosion, long service life, cost effectiveness, easy installation

Product Data – Stainless Steel Safety Window Cable Mesh

Model No.	Material Grade	Rope Diameter	Mesh Opening	Mesh Type	Rope Construction	Mesh Orientation	Frame Code	Frame Type	Frame Section Size	Recommended Application
SWM-01-FR00	AISI 304	1.2 mm	25 mm	Knotted	7 × 7	Vertical	FR-00	No rigid frame (cable perimeter only)	Perimeter cable Ø 3–5 mm	Small indoor windows, hidden installation, child & pet safety
SWM-02-FR20	AISI 316	1.5 mm	30 mm	Ferruled	7 × 7	Vertical	FR-20	Flat bar frame	30 × 4 mm	Coastal apartment windows, high anti-fall protection
SWM-03-FR10	AISI 304L	1.5 mm	40 mm	Knotted	7 × 7	Horizontal	FR-10	Flat bar frame	20 × 3 mm	Stairwell and corridor windows in residential buildings
SWM-04-FR20	AISI 316L	2.0 mm	40 mm	Ferruled	7 × 7	Vertical	FR-20	Flat bar frame	30 × 4 mm	High-rise balcony and French window safety mesh
SWM-05-FR30	AISI 316	2.0 mm	50 mm	Ferruled	7 × 7	Vertical	FR-30	Square tube frame	25 × 25 × 2 mm	School, hospital and office window protection
SWM-06-FR00	AISI 304	2.0 mm	60 mm	Ferruled	7 × 7	Vertical / Horizontal	FR-00	No rigid frame (cable perimeter only)	Perimeter cable Ø 3–5 mm	Standard apartment windows and balcony openings
SWM-07-FR40	AISI 316	2.5 mm	60 mm	Knotted	7 × 19	Vertical	FR-40	Square tube frame	30 × 30 × 2 mm	Heavy-duty window safety in public buildings
SWM-08-FR40	AISI 316L	2.5 mm	80 mm	Ferruled	7 × 19	Vertical	FR-40	Square tube frame	30 × 30 × 2 mm	Coastal high-rise tower windows and patios
SWM-09-FR80	AISI 304L	3.0 mm	80 mm	Knotted	7 × 19	Horizontal	FR-80	Heavy square tube frame	40 × 40 × 3 mm	Industrial and warehouse high window protection
SWM-10-FR60	AISI 316	3.0 mm	100 mm	Ferruled	7 × 19	Vertical	FR-60	Angle frame	40 × 40 × 3 mm	Large viewing windows with safety and high transparency
SWM-11-FR70	AISI 316L	1.5 mm	50 mm	Ferruled	7 × 7	Vertical	FR-70	Slim frame	15 × 15 × 2 mm	Residential coastal homes, minimal look, child & pet safety
SWM-12-FR50	AISI 304	1.2 mm	20 mm	Knotted	7 × 7	Vertical	FR-50	Angle frame	30 × 30 × 3 mm	Small openings requiring very tight aperture and neat interior finish

Example Specification Sets for Window Safety

Type / Use	Rope Diameter	Mesh Opening	Typical Application
Light safety (child / pet protection)	1.2 – 1.5 mm	30 – 50 mm	Interior windows, stair windows, children’s rooms where anti-fall is more important than anti-theft.

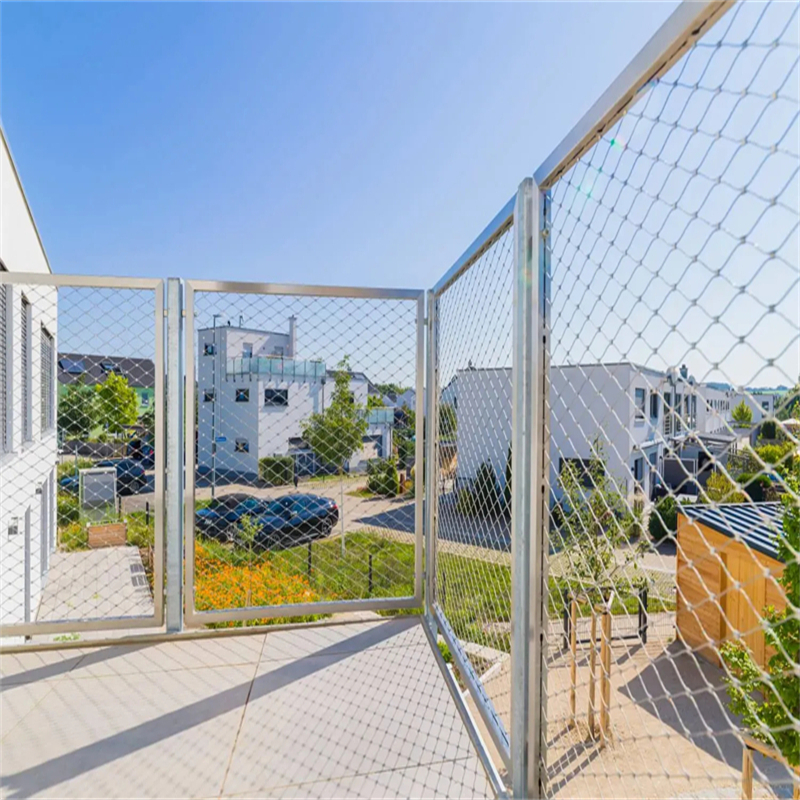

Standard window / balcony safety mesh	1.5 – 2.0 mm	50 – 80 mm	Residential window protection and balcony infill in apartments and houses.
Heavy anti-theft / high-rise safety	2.5 – 3.0 mm	60 – 100 mm	High-rise windows, patio openings and areas where stronger cables are required for security.
