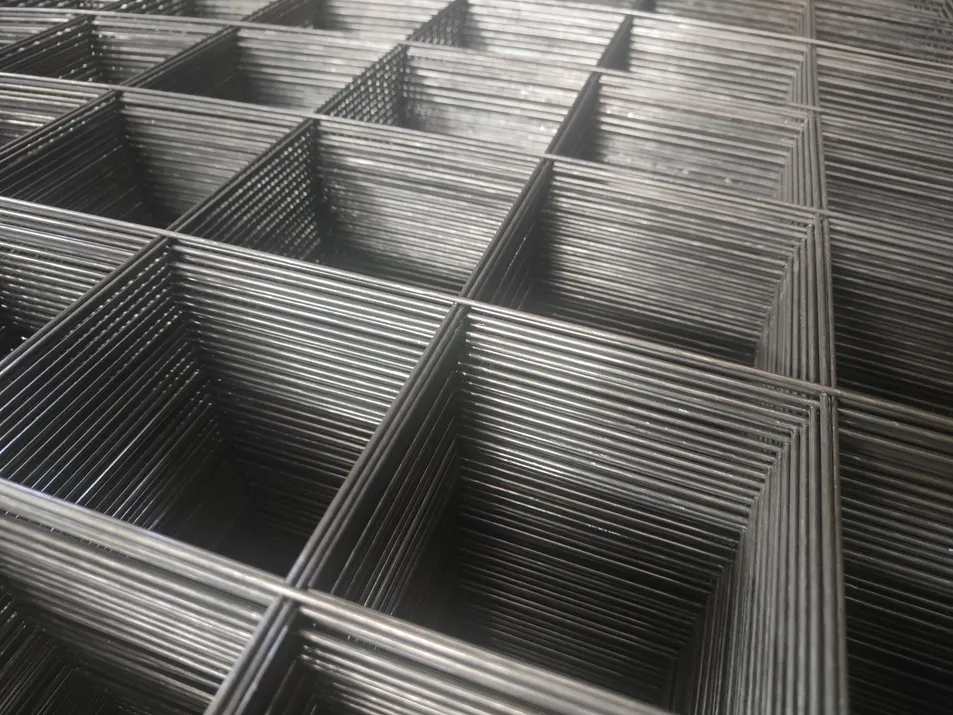

Stainless steel welded wire mesh is made by arranging longitudinal and cross wires at right angles and resistance-welding each intersection. The result is a rigid, square or rectangular grid that holds its shape, offers clean edges, and installs quickly as rolls or flat panels. It’s widely produced in 304/304L and 316/316L stainless for corrosion resistance, hygiene, and strength.
Materials & Grades Stainless Steel Welded Wire Mesh
Primary (recommended): 304/304L, 316/316L stainless steel wire
Also available (for non-stainless projects): galfan wire mesh (Zn–Al alloy), galvanized iron wire, e-metal, aluminum–zinc alloy wire
Wire diameter range: 0.5–6.0 mm
Opening size range: 10–300 mm
Hole shape: Square or rectangular
Welding & Surface Options
Welding route: welded from stainless wire (best for corrosion/hygiene)
Galvanized after welding (GAW) or galvanized before welding (GBW) for carbon steel options
Surface treatments (non-stainless builds): electric-galvanized, hot-dip galvanized, PVC coated (all colors)
Optional stainless finishes: pickled/passivated or electropolished for enhanced cleanliness and corrosion performance
Features
Simple, practical structure with clean geometry
Strong welded intersections—no wire slippage, excellent panel rigidity
Corrosion resistant (stainless) / anti-erosion (galvanized routes)
Anti-aging, UV resistant when PVC coated
Attractive appearance for visible guarding and architectural use
Applications Stainless Steel Welded Wire Mesh
Civil / Public: Security & isolation fencing for sidewalks, transport hubs, campuses, and other public spaces
Agriculture & Forestry: Goat/horse/farm fencing; livestock enclosures; crop protection
Earth Surface Stability & Mining: Fabricated into cages/baskets for slope support and mine exploitation tasks
Industry & General Use: Machine guards, equipment cages, cable/pipe supports, fan and ventilation covers, coarse filtration/venting
Building & Transportation: Partitions, infill panels, perimeter fencing, barrier systems
 |  |
 |  |
Specifications
| Tolerances on Mesh Dimensions | |
| Mesh Dimensions(mm) | Tolerance(mm) |
| < 50 | ±2.0 |
| ≥50 to < 200 | ±3.0 |
| Mesh Size and Wire Diameter | ||||
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24-22 | 0.56-0.71 | 0.90-1.05 |
| 9.5 | 3/8 | 23-19 | 0.64-1.07 | 1.00-1.52 |
| 12.7 | 1/2 | 22-16 | 0.71-1.65 | 1.10-2.20 |
| 15.9 | 5/8 | 21-16 | 0.81-1.65 | 1.22-2.30 |
| 19.1 | 3/4 | 21-16 | 0.81-1.65 | 1.24-2.40 |
| 25.4 × 12.7 | 1 × 1/2 | 21-16 | 0.81-1.65 | 1.24-2.42 |
| 25.4 | 1 | 21-14 | 0.81-2.11 | 1.28-2.90 |
| 38.1 | 1 1/2 | 19-14 | 1.07-2.11 | 1.57-2.92 |
| 25.4 × 50.8 | 1 × 2 | 17-14 | 1.47-2.11 | 2.00-2.95 |
| 50.8 | 2 | 16-12 | 1.65-2.77 | 2.20-3.61 |
| Welded Wire Mesh Roll Size | |
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft |
| 1/2 | 5 ft. × 50 ft. |
| 1/2 | 6 ft. × 50 ft. |
| 3/4 | 3 ft. × 50 ft |
| 3/4 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft |
| 3/4 | 6 ft. × 50 ft. |
| 1 | 3 ft. × 50 ft. |
| 1 | 4 ft. × 50 ft. |
| 1 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |
| Welded wire Mesh Panels Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1″ × 1″ | 25 mm × 25 mm | 11 G – 14 G | 2 mm – 3 mm |
| 2″ × 1″ | 50 mm × 25 mm | 8 G – 14 G | 2 mm – 4 mm |
| 2″ × 2″ | 50 mm × 50 mm | 8 G – 14 G | 2 mm – 4 mm |
| 3″ × 2″ | 75 mm × 50 mm | 6 G – 14 G | 2 mm – 5 mm |
| 3″ × 3″ | 75 mm × 75 mm | 6 G – 14 G | 2 mm – 5 mm |
| 4″ × 2″ | 100 mm × 50 mm | 4 G – 14 G | 2 mm – 6 mm |
| 4″ × 4″ | 100 mm × 100 mm | 4 G – 14 G | 2 mm – 6 mm |
| 5″ × 5″ | 125 mm × 125 mm | 4 G – 14 G | 2 mm – 6 mm |
| 6″ × 6″ | 150 mm × 150 mm | 4 G – 14 G | 2 mm – 6 mm |
| Note: Special specifications can be customized. | |||
Packing & Delivery
Rolls: waterproof paper wrap, moisture barrier as needed; labeled with grade, opening, wire diameter, width/length, lot/heat

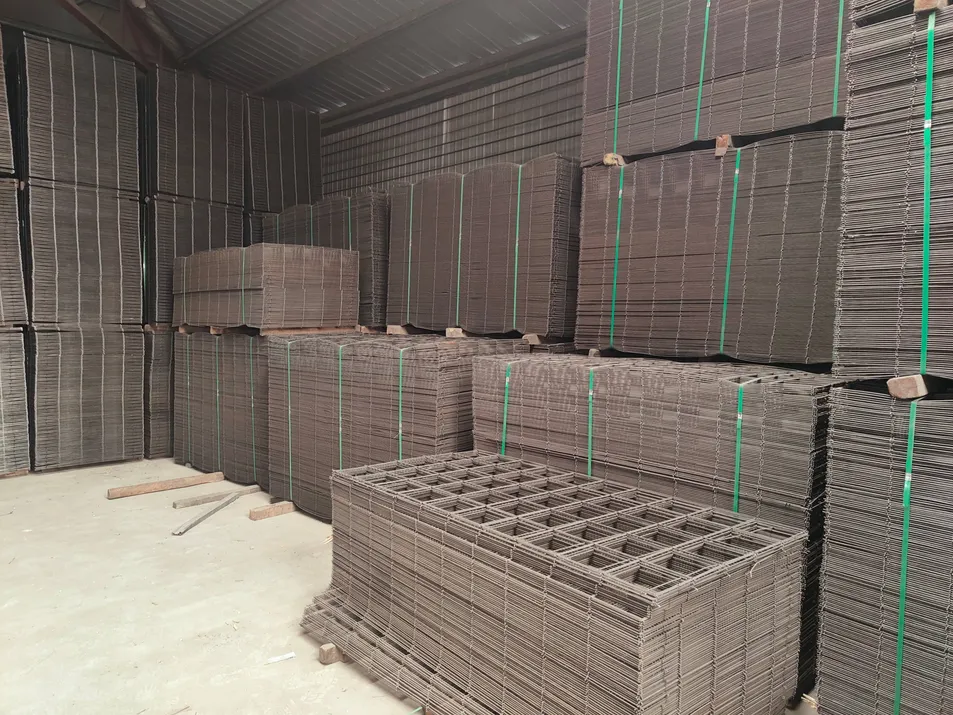

Panels: stacked with interleaves and edge/corner protectors; strapped to pallets or crated for export
Custom packing: PVC film, VCI, wooden cases/pallets per site requirements
Conclusion Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh delivers the right mix of rigidity, corrosion resistance, cleanability, and easy installation for civil works, agriculture, mining, and industrial guarding. Choose 304/304L for general duty or upgrade to 316/316L in chloride or harsh-washdown environments. Define opening, wire diameter, form/size, and finish on the PO, and you’ll receive durable, dimensionally stable mesh—ready for fast, reliable service.
