- Square opening stainless steel woven wire cloth: 1–635 mesh
- Dutch woven stainless steel wire cloth: 12×64 mesh to 400×2800 mesh
Materials of Stainless Steel Woven Wire Cloth
Our stainless steel woven wire cloth is produced from high-grade stainless steel and
special alloys to ensure excellent corrosion resistance and mechanical strength:
- SUS304 / AISI 304
- SUS304L / AISI 304L
- SUS316 / AISI 316
- SUS316L / AISI 316L
- SUS310S, SUS321, SUS430 and other stainless grades on request
Alternative materials such as carbon steel, galvanized steel, copper, brass, nickel alloys and Monel can also be supplied for specific operating conditions.

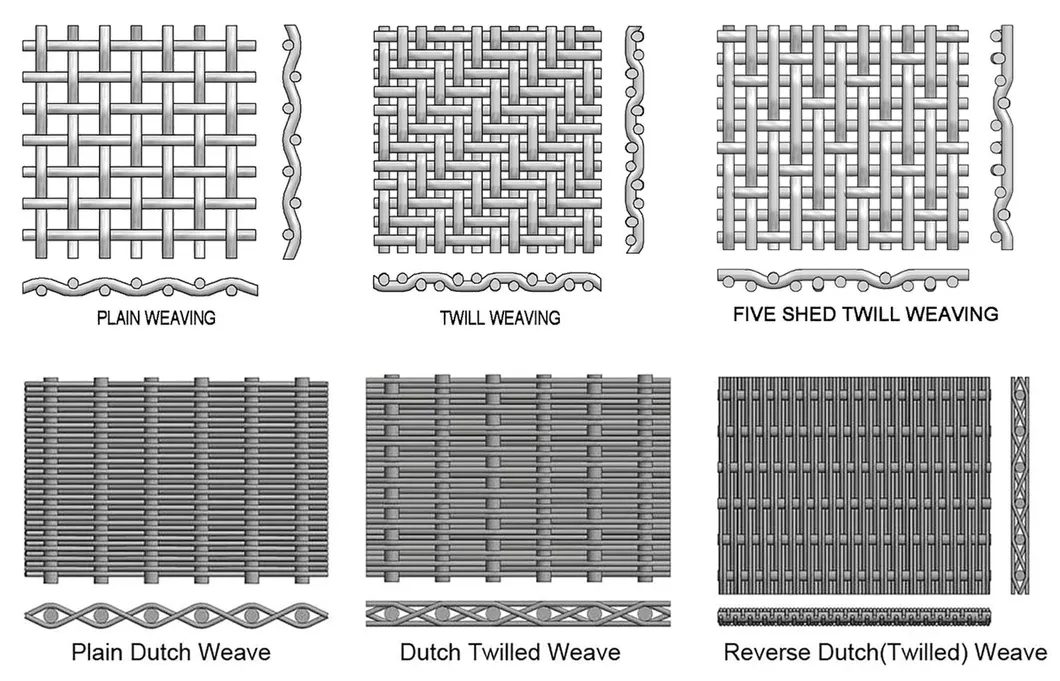

Weaving Types & Mesh Patterns
Stainless steel woven wire cloth is manufactured on high-precision looms in a variety of weaving styles to meet different performance requirements:
- Plain weave: the most common type; each warp wire passes over one and under one weft wire, forming a simple and stable square opening.
- Twill weave: each warp wire passes over two and under two weft wires; produces a diagonal pattern with higher strength and finer mesh capabilities.
- Plain Dutch weave: similar to plain weave but with different warp/weft diameters and mesh counts; offers improved filtration with small openings.

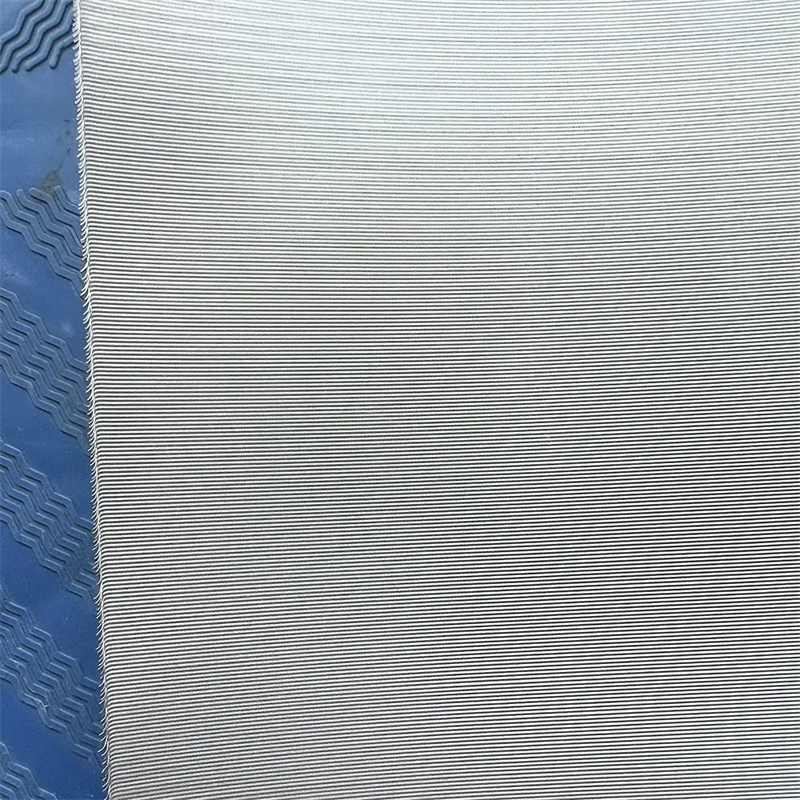

- Twill Dutch weave: combines twill pattern with Dutch construction for very fine filtration, high pressure resistance and excellent retention.
- Reverse Dutch weave: heavier warp wires and fewer weft wires for high mechanical strength and low pressure drop.
- Crimped / pre-crimped weave: wires are crimped before weaving to create a rigid structure suitable for heavy-duty screening and grills.
Standard Sizes & Custom Options
Standard roll sizes for stainless steel woven wire cloth:
- Standard width: 1.0 m or 48″
- Standard roll length: 30 m or 100′
Custom widths, lengths, mesh counts and wire diameters can be produced according to project requirements. Cut-to-size sheets, discs, rings, tubes and fabricated filters are also available.
Key Properties of Stainless Steel Woven Wire Cloth
- Excellent resistance to corrosion, oxidation and chemical attack
- High tensile strength and good load-bearing capacity
- Stable mesh structure with accurate and uniform openings
- Good abrasion resistance and long service life
- Wide temperature range and suitability for harsh environments
- Easy to cut, form, weld and fabricate into custom parts
Main Applications
Due to its versatility and durability, stainless steel woven wire cloth is widely used in:
- Filtration & separation: liquid and gas filtration, oil and chemical processing, polymer and plastic filtration, hydraulic and lubrication systems.
- Screening & grading: sizing of powders, minerals, pigments, sand, aggregates and bulk materials.
- Process industry: sugar, food & beverage, pharmaceutical, paper making and pulp industries.
- Protective mesh: machine guards, equipment protection, ventilation covers and safety screens.
- BBQ & food equipment: grill meshes, baking trays, baskets and cooking supports in stainless or copper/stainless combinations.
- Construction & architecture: decorative mesh, infill panels, ceilings, façades and partitions.
- Filter elements: wire mesh tubes, filter discs, filter caps and multi-layer sintered packs.
Typical Specification Range
The following table shows some representative specifications of stainless steel woven
wire cloth. Other mesh counts and wire diameters are available on request.

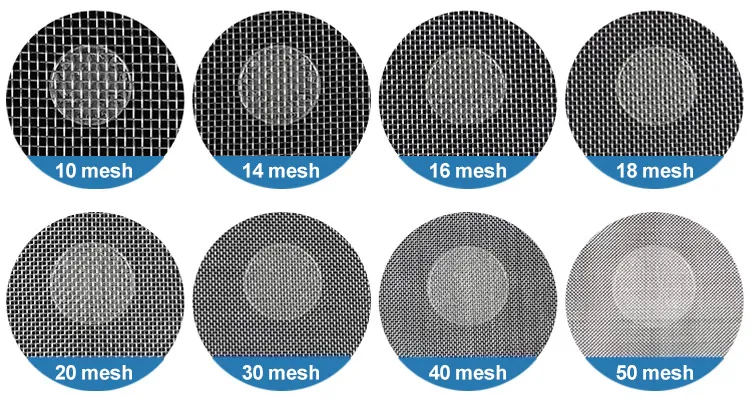

| Mesh (per inch) | Wire Diameter (mm) | Aperture (mm) | Open Area (%) |
|---|---|---|---|
| 2 | 1.60 | 11.10 | ≈76 |
| 4 | 1.20 | 5.10 | ≈66 |
| 10 | 0.50 | 2.04 | ≈65 |
| 40 | 0.21 | 0.425 | ≈45–50 |
| 100 | 0.10 | 0.154 | ≈37 |
| 200 | 0.04 | 0.087 | ≈47 |
| 325 | 0.03 | 0.048–0.050 | ≈38–41 |
| 400 | 0.023–0.03 | 0.034–0.046 | ≈27–41 |
Product Functions & Performance
Our stainless steel woven wire cloth is designed to reduce downtime and improve process
efficiency by providing stable filtration and screening performance. Accurate mesh
openings ensure reliable particle retention, while high mechanical strength minimizes
deformation under load or pressure. The material’s corrosion resistance allows long-term
operation in aggressive media, including acids, alkalis, high humidity and high
temperature environments.
Packing & Delivery
- Inner core: strong paper tube to maintain roll shape
- Inner wrap: moisture-proof paper and/or plastic film
- Outer protection: woven bag and reinforced wooden case or pallet
- Custom labeling and export packing available upon request
Why Choose Our Stainless Steel Woven Wire Cloth
- Wide mesh range from coarse to ultra-fine (1–635 mesh and up to 400×2800 Dutch)
- Multiple stainless grades and special alloys for specific applications
- Advanced weaving equipment and strict quality inspection for consistent mesh accuracy
- OEM, custom sizes and fabricated filter elements available
- Fast delivery and professional technical support
If you need high-quality stainless steel woven wire cloth for filtration,screening, protection or architectural design, our technical team can recommend the optimum mesh specification based on your working conditions and performance targets.
