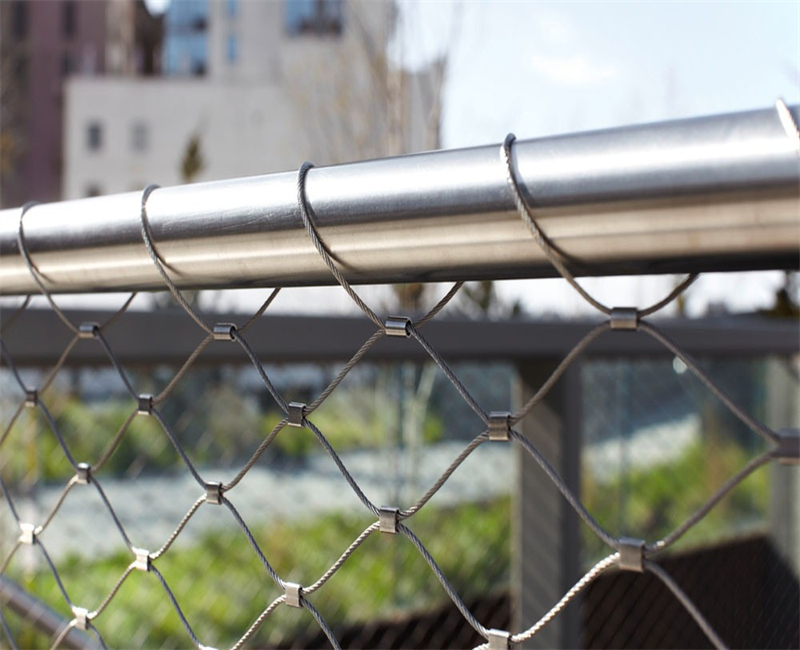

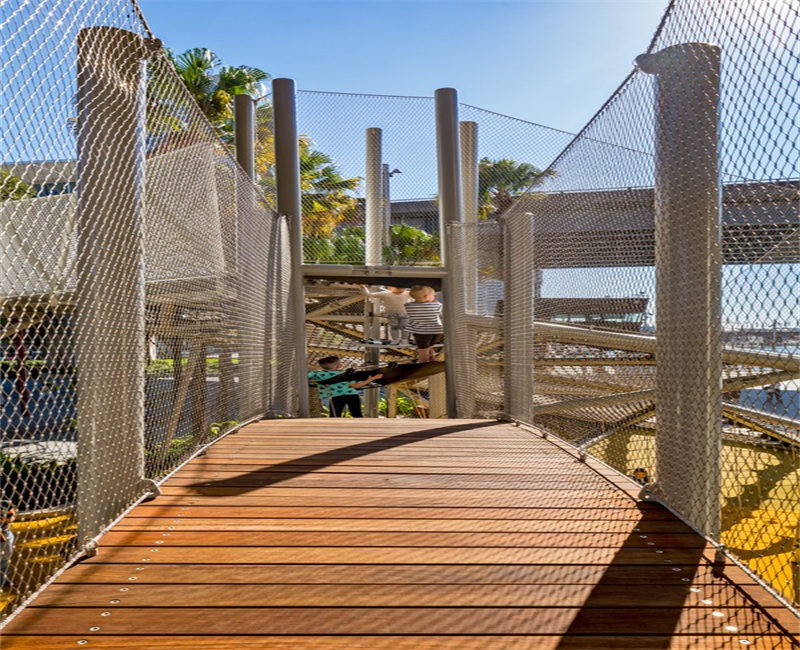

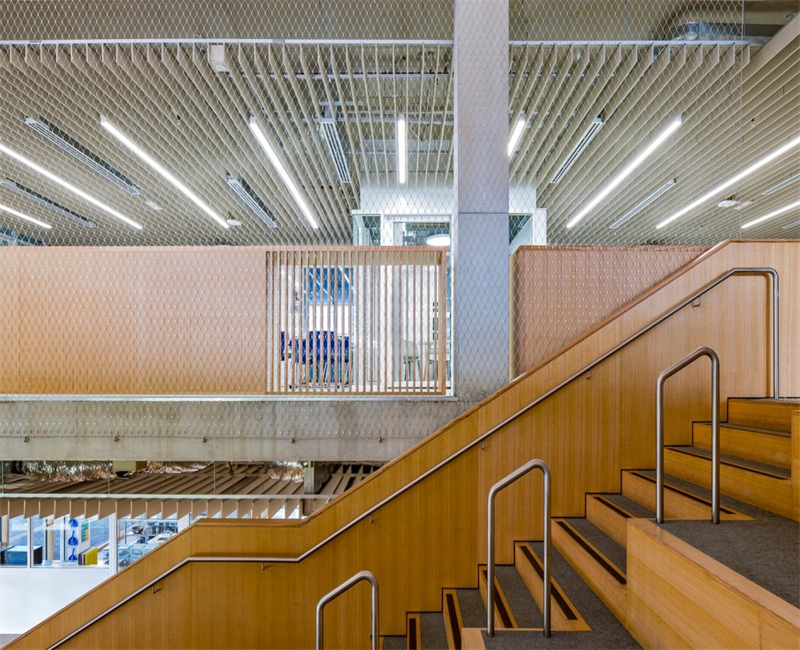

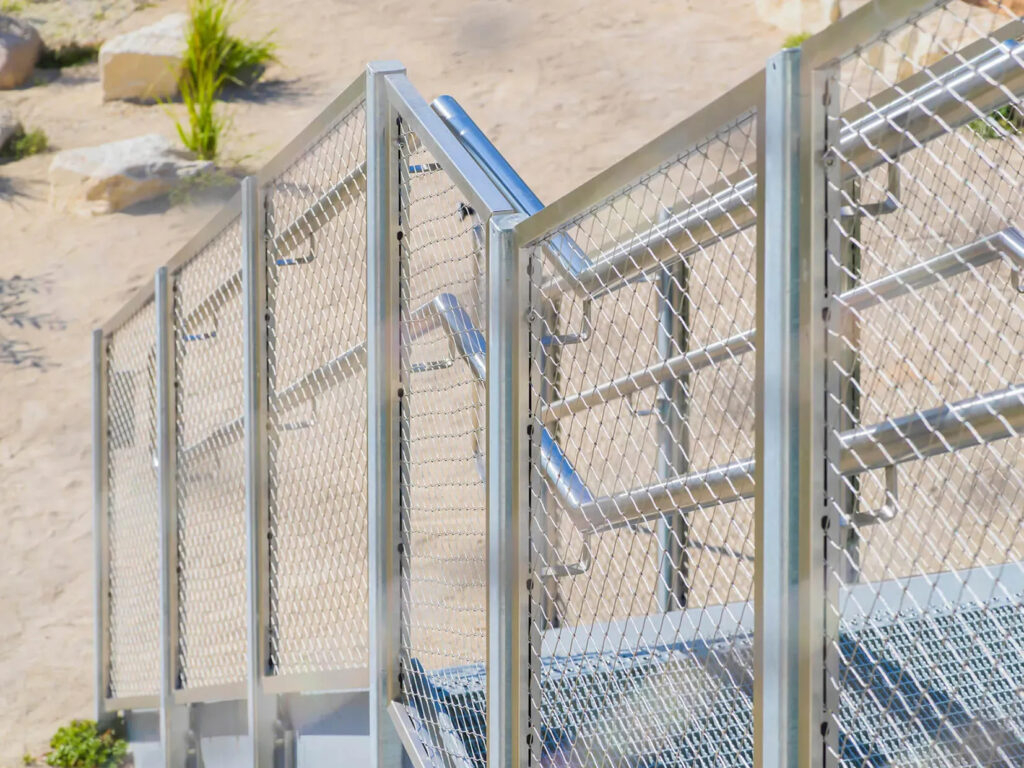

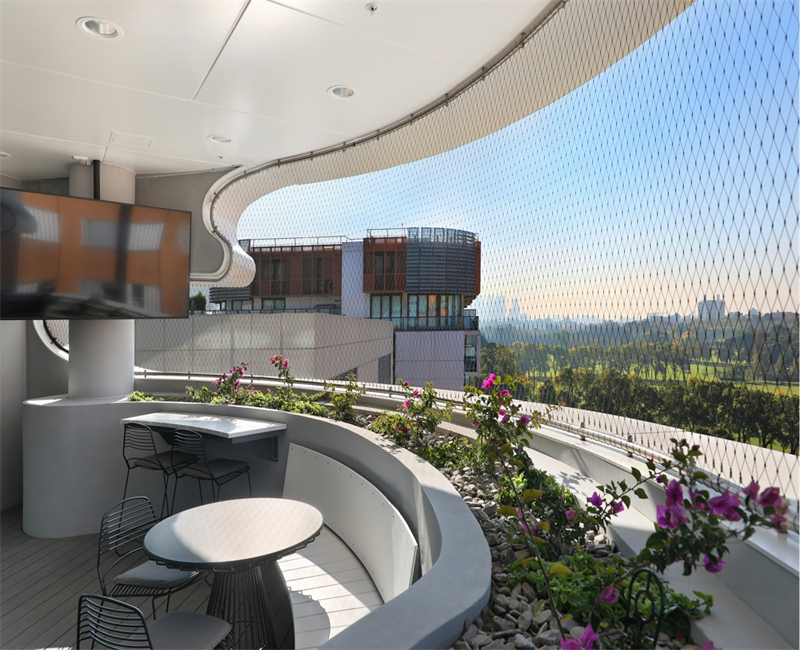

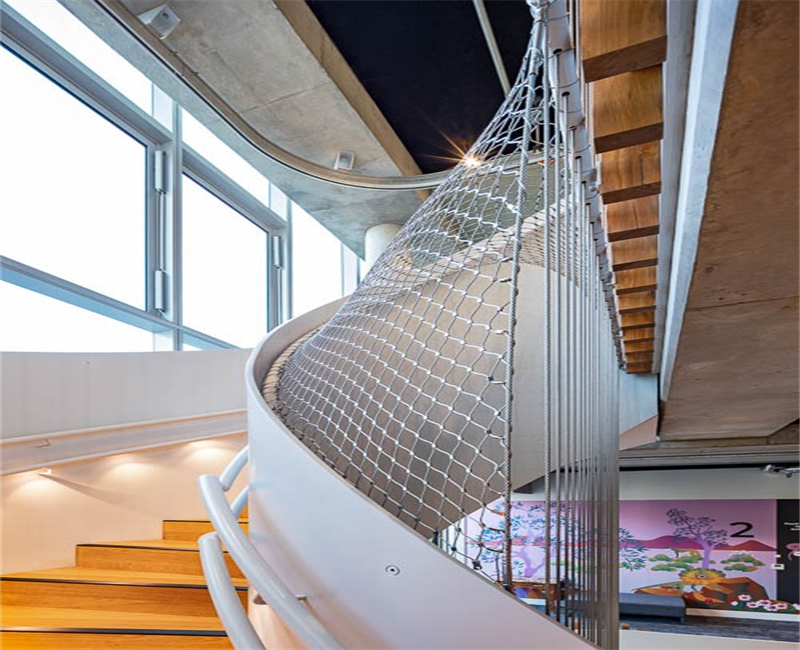

Stairs safety rope mesh is a specialised protective infill system designed for staircases, landings and open voids where safety and aesthetics must work together. Made from thin stainless-steel wire ropes woven mesh or clamped into elegant diamond or square patterns, or from heavy-duty synthetic rope netting such as nylon or polyester, it forms a continuous barrier that helps prevent people—especially children—from slipping through gaps and stops objects from falling into stairwells. Tensioned securely between handrails, posts or perimeter frames, the mesh keeps the area safe while maintaining an open, bright and airy feel, and its flexibility allows it to follow curved stairs, split-level landings and double-height voids that are difficult for rigid panels.
1. Stairs Safety Rope Mesh (Stainless Steel) Specifications
| Item | Unit | Value / Range |
|---|---|---|
| Product name | – | Stairs Safety Rope Mesh |
| Material | – | Stainless steel wire rope |
| Steel grade | – | 304 / 316 |
| Wire rope diameter | mm | 2.0 – 3.0 |
| Mesh opening (diamond) | mm | 50 – 80 (approx.) |
| Wire rope construction | – | 7×7 / 7×19 |
| Panel width (max.) | m | 3.0 – 3.5 |
| Panel height (max.) | m | up to 8.0 |
| Recommended railing height | mm | 900 (stairs) / 1000 (landings) |
| Recommended post spacing | mm | 1200 – 1500 |
| Service temperature | °C | -30 to +200 |
| Design safety factor (rope) | – | ≥ 4.0 |
| Typical application | – | Stairs, landings, voids, balconies |
2. Standard Models – Stainless Steel Rope Mesh (Easy Comparison)
| Model | Use Type | Wire Ø (mm) | Mesh Opening (mm) | Grade | Typical Area of Use |
|---|---|---|---|---|---|
| SSM-50/2-304 | Standard indoor | 2.0 | 50 × 87 (diamond) | 304 | Indoor stairs, galleries |
| SSM-50/3-316 | Heavy duty / public | 3.0 | 50 × 87 (diamond) | 316 | Public stairs, commercial |
| SSM-80/2-304 | Open view indoor | 2.0 | 80 × 139 (diamond) | 304 | Large voids, light traffic |
| SSM-80/3-316 | Open view outdoor | 3.0 | 80 × 139 (diamond) | 316 | Outdoor stairs, balconies |
How to read (very simple):
Wire Ø bigger → stronger & heavier
Mesh opening bigger → more open view, less “net” feeling
316 grade → better corrosion resistance, good for outdoor / coastal
3. Structural / Installation Key Numbers (Only the essentials)
If you want one simple “engineering” block – keep just this.
| Item | Unit | Value |
|---|---|---|
| Recommended post tube (round) | mm | Ø50 × 3.0 |
| Recommended post spacing | mm | 1200 – 1500 |
| Edge fixing spacing (max.) | mm | 120 – 150 |
| Top edge cable diameter | mm | 8 – 10 |
| Bottom edge cable diameter | mm | 6 – 8 |
| Design line load on handrail | kN/m | 0.75 – 1.00 |
| Local load on mesh (test) | kN | 1.5 – 2.0 |
4. Optional Product – Children Stair Safety Net (Synthetic)
If you also sell a soft net for kids/pets, here’s a super simple table:
| Item | Unit | Value |
|---|---|---|
| Product name | – | Children Stair Safety Net |
| Material | – | Polyester / Nylon / PE |
| Rope diameter | mm | 4 – 6 |
| Mesh opening | mm | 45 – 60 |
| Panel size | m | Custom (e.g. 1×2, 2×3…) |
| Recommended installation | mm | Height 900 – 1000 |
| Fixing point spacing | mm | 100 – 120 |
| Service life (indoor) | years | 5 – 6 |
| Service life (outdoor) | years | 2 – 3 |
Safety & Compliance Performance
Because stairways are a common source of accidents, building regulations in many regions require minimum barrier heights and strict control over opening sizes so a child cannot pass through. Stairs safety rope mesh is engineered to support these requirements by controlling mesh aperture and edge detailing, creating a seamless safety layer without accidental gaps. For households with children or pets, the mesh can be specified with smaller openings to reduce the risk of climbing and to stop toys and other small items being dropped. At the same time, the system is designed so that, when correctly framed and tensioned, it can help the balustrade meet structural load expectations for people leaning, pushing or impacting the barrier.
Design, Light & Visual Comfort

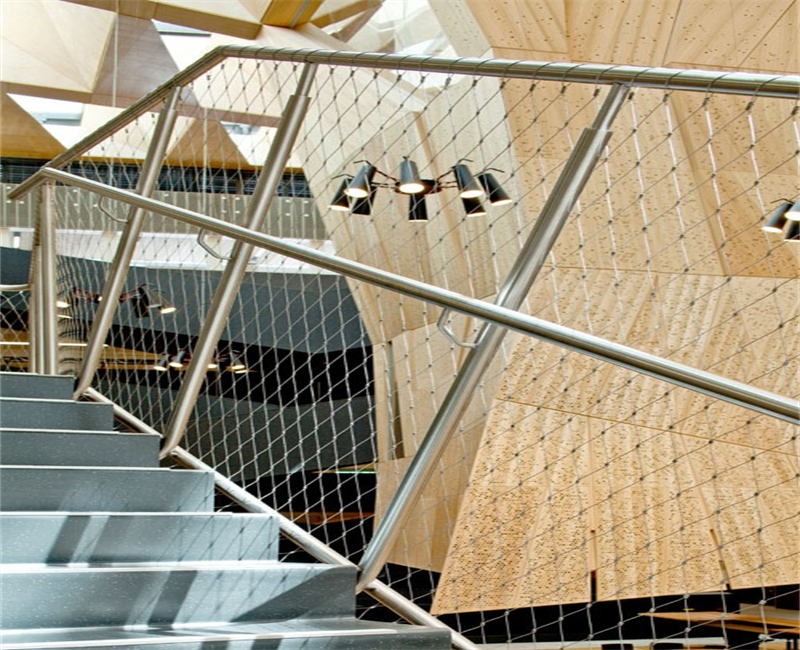

Visually, stairs safety rope mesh is exceptionally light and discreet, allowing clear views across stairwells and atriums and letting natural light penetrate to lower levels. The slender cables provide excellent transparency and airflow, making the mesh a modern alternative to bulky balusters or high-maintenance glass panels. Designers often choose rope mesh where glass would be too heavy, too reflective, or too demanding to clean, but they still want an open, minimal look that enhances contemporary interiors and blends smoothly into industrial, commercial and residential environments.
Materials & Technical Options
From a technical perspective, stainless-steel wire rope mesh is a robust architectural solution. It is typically produced from 304 or marine-grade 316 stainless steel in rope diameters ranging from about 1.5 to 4 millimetres, using constructions such as 7×7 or 7×19 strands to balance flexibility and strength. Mesh aperture can be tuned from fine patterns to more open layouts to align with both safety requirements and design intent. As a complementary option, synthetic safety nets made from UV-stabilised nylon, polyester or polyethylene offer a more economical choice for domestic and light-commercial use, ideal for temporary or semi-permanent child-proofing in homes, rental properties, play areas and bunk beds.
Installation, Durability & Maintenance

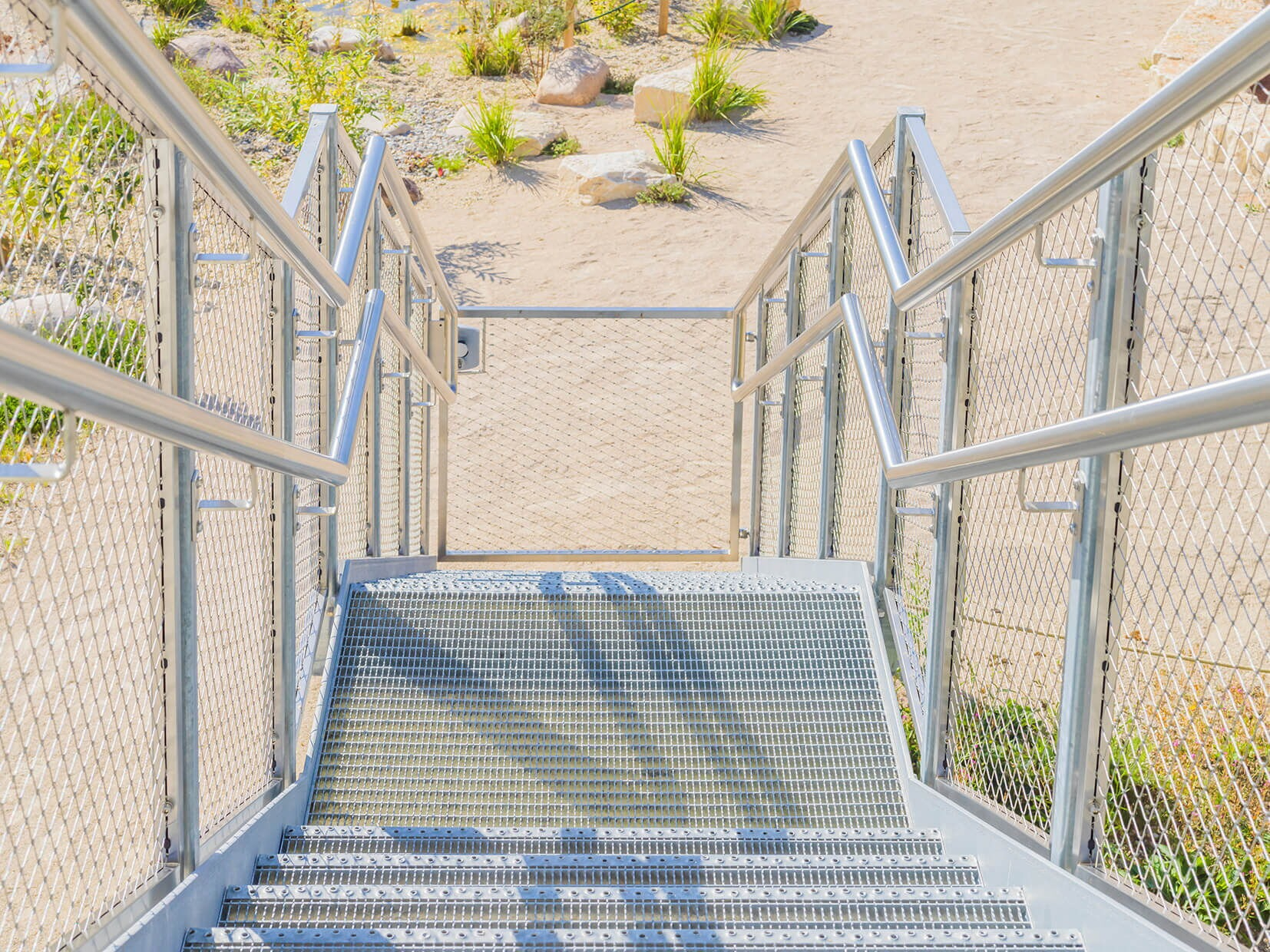

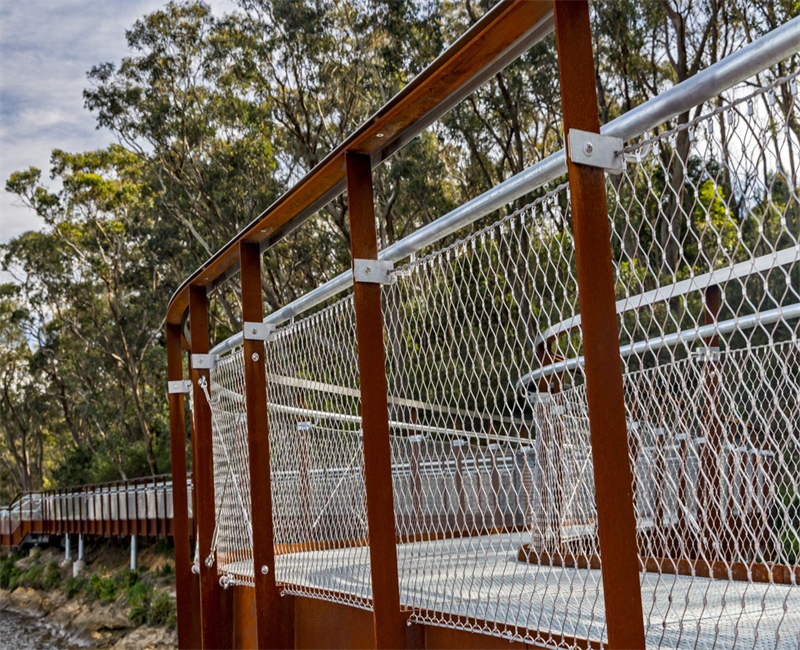

A well-designed stairs safety rope mesh system considers barrier height, maximum opening size, climbability and structural loads right from the planning stage. The mesh generally acts as infill between posts and rails, helping the overall balustrade achieve the required height on stairs and landings, while aperture, framing and pre-tension are selected so that openings remain within code limits even under deflection. For outdoor or coastal projects, 316 stainless steel and high-quality fasteners are recommended to ensure long-term durability and resistance to corrosion. Routine maintenance is simple: periodic visual checks for damaged wires, frayed knots or loose fixings, and basic cleaning with mild detergent for stainless mesh or following product instructions for synthetic nets.
Brand Concept – “FROM IDEA TO REALITY”
Under the brand “ln” and guided by the slogan “FROM IDEA TO REALITY”, our wire rope mesh solutions are developed to turn architectural concepts into practical, buildable systems. Over years of project experience in traffic hubs, commercial complexes, plazas, hotels, business centres and high-grade office buildings, we have gained a deep understanding that each architectural vision is unique. This insight allows us to interpret design intent accurately and provide mesh configurations that match the functional, aesthetic and technical expectations of architects, designers and builders around the world.
Decorative Wire Mesh Product Range
Our stairs safety rope mesh is part of a broader Decorative Wire Mesh portfolio manufactured in Hebei Province, China. Available in woven, perforated and welded styles, the range covers wire diameters from 0.1 to 10 millimetres and can be tailored to ceilings, partitions, façades, laminated glass, cabinets, wall cladding and curtains, as well as stair and balcony infill. A wide choice of surface treatments—PVD, PVDF, spray painted, powder coated and antique finishes—gives designers full flexibility to match project colours and textures. Sizes are customised according to your project, products are securely packed in water-proof paper and wooden cases, and our after-sale service includes reliable technical support to help you integrate stairs safety rope mesh and decorative wire mesh smoothly into your design from concept through to completion.
