304 316 stainless steel rope safety wire mesh is a modern architectural and safety material woven from high grade stainless steel wire rope. It combines the corrosion resistance of 304 and 316 stainless steel with the flexibility of cable structures to form elegant diamond openings that are strong, light and visually unobtrusive. This safety wire mesh is widely used for protective fences, zoo enclosures, balustrade infill and green wall systems where long service life, minimal maintenance and premium appearance are required.
The structure of the stainless steel wire rope mesh gives it excellent impact resistance, high breaking force and fatigue resistance. Service life is typically more than 30 years even in harsh outdoor environments. The flexible cable mesh is smooth and soft to the touch, which protects birds’ feathers and animals’ skin while effectively preventing rodents or other animals from biting the fence, creating a safe and comfortable living environment.
 |  |
Specifications – 304 316 Stainless Steel Rope Safety Wire Mesh
| Product Name | 304 316 Stainless Steel Rope Safety Wire Mesh / Stainless Steel Wire Rope Cable Mesh |
| Material | 303, 304, 304L, 316, 316L stainless steel wire (mainly SS304/316) |
| Rope / Wire Diameter | 1.0–5.0 mm overall range; common options 1.2 mm, 1.5 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm, 4.0 mm, 5.0 mm; typical fence mesh 1.5 / 2.0 / 2.5 mm |

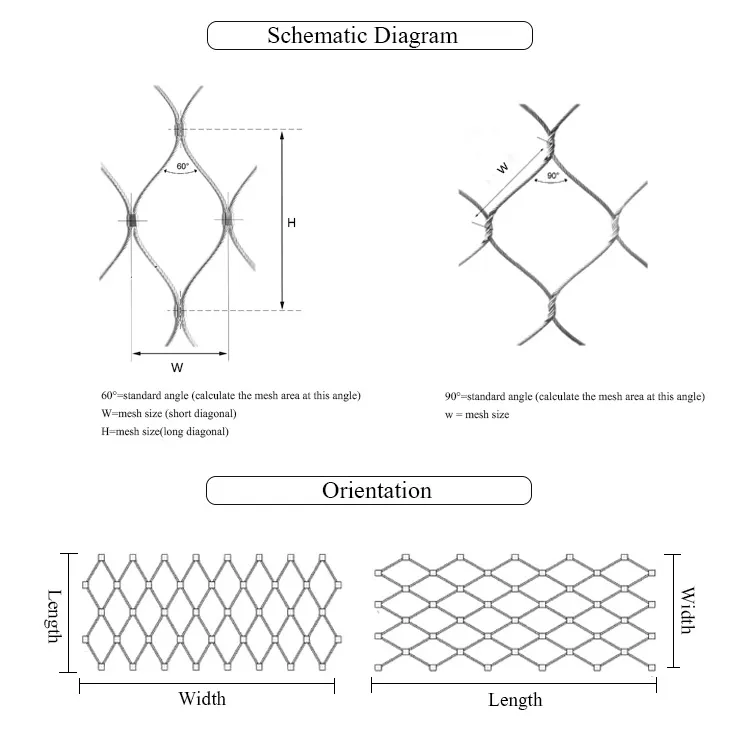

| Hole / Mesh Shape | Diamond (rhombus) mesh, formed at approx. 60° when tensioned |
| Mesh Opening | Inch: 2″ × 2″, 3″ × 3″, 4″ × 4″ (customized available) Metric: 25×25 mm, 30×30 mm, 50×50 mm, 60×60 mm, 80×80 mm, 90×90 mm, 120×120 mm (other sizes on request) |
| Panel / Boundary Dimension | Standard examples: 1×10 m, 2×5 m, 2×3 m, 10×10 m; fully customized to project drawings |
| Colour | Natural stainless steel silver (can be customized coated if required) |

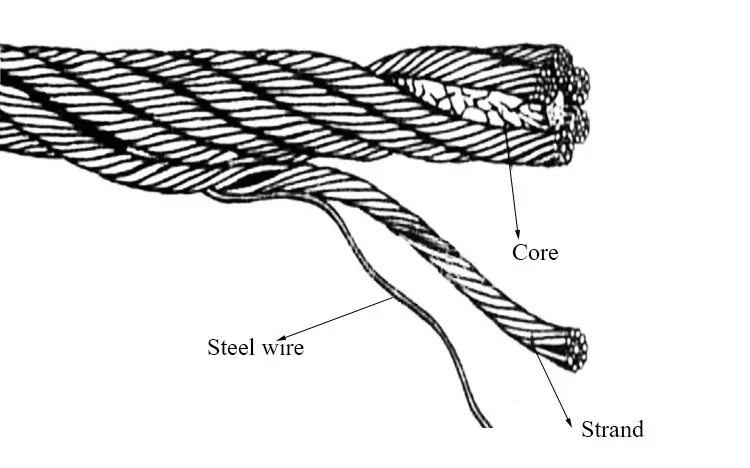

| Structure | 7×7 or 7×19 stainless steel wire rope, hand-knitted or ferrule-connected |
| Installation Direction | Vertical, horizontal, diagonal and irregular shapes to follow straight, curved or complex structures |
| Key Features | Hand-knitting craftsmanship; light weight; high strength and impact resistance; rustless and anti-corrosion; flexible and easy to shape; recyclable and eco-friendly; maintenance free; long service life (>30 years); easy assembly and tensioning on site |
| Performance | Excellent flexibility, high fatigue resistance, good transparency, smooth surface safe for animals and people |
| Main Applications | Protection rope mesh, zoo and wildlife enclosures, aviary and bird mesh, balustrade and railing infill, bridge and stair safety mesh, facade and partition mesh, green wall support and other architectural safety uses |
| Keyword | Anti Corrosion stainless steel rope safety wire mesh |
Product Details:
 |  |  |

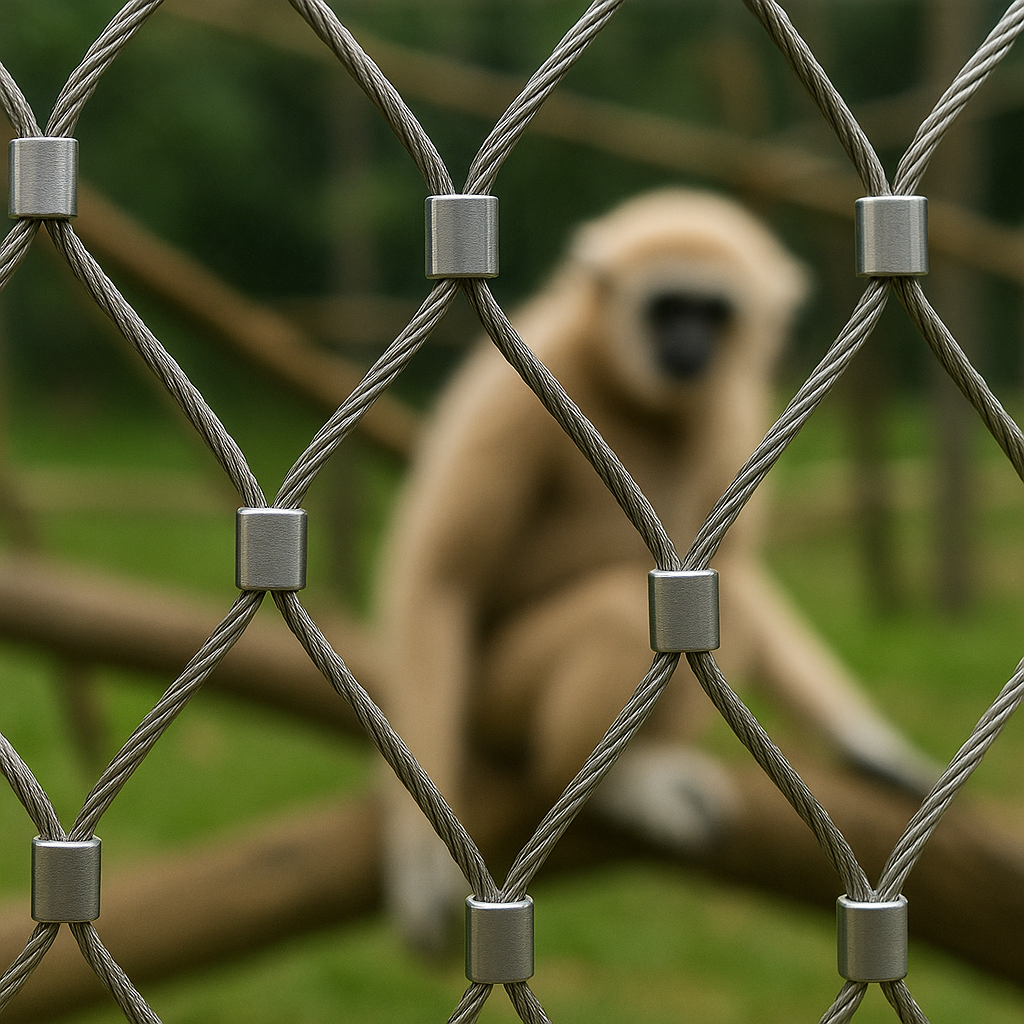

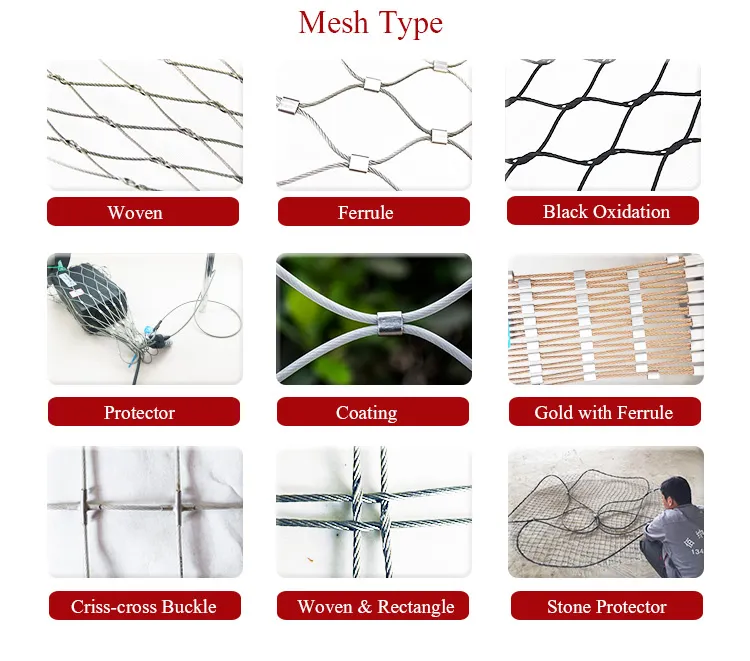

304 316 stainless steel rope safety wire mesh can be produced with either inter-woven (knotted) connections or ferrule connections. The 7×7 and 7×19 cable constructions provide a smooth and flexible surface that can be easily folded for transport and quickly opened and tensioned on site. All edges are reinforced with additional cables or framed profiles to ensure even load transfer and long-term stability.
Applications
Thanks to its high transparency and superior mechanical properties, 304 316 stainless steel rope safety wire mesh is suitable for many architectural and safety applications.
 |  |  |

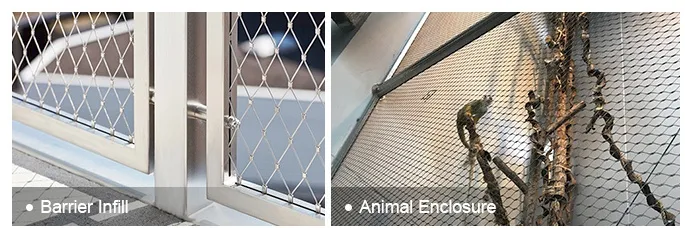

- Zoo and wildlife park enclosures, aviary mesh, bird cages and big cat habitats.

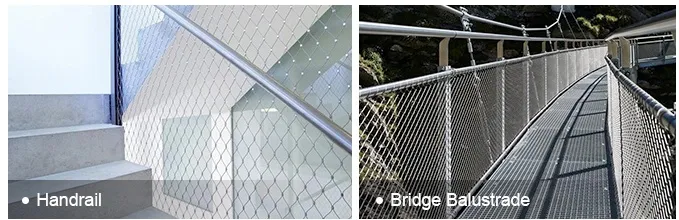

- Balustrade and railing infill for stairs, balconies, bridges and viewing platforms.
- Safety nets for high-rise buildings, stadiums, playgrounds and fall protection areas.
- Green wall mesh and plant climbing support systems on building facades.
- Architectural facades, partitions and interior design features where transparency and security are needed.
Installation steps:
The installation of 304 316 stainless steel rope safety wire mesh is simple. Panels are prefabricated to size with edge cables or frames, then fixed to supporting structures using tensioning hardware.
 |

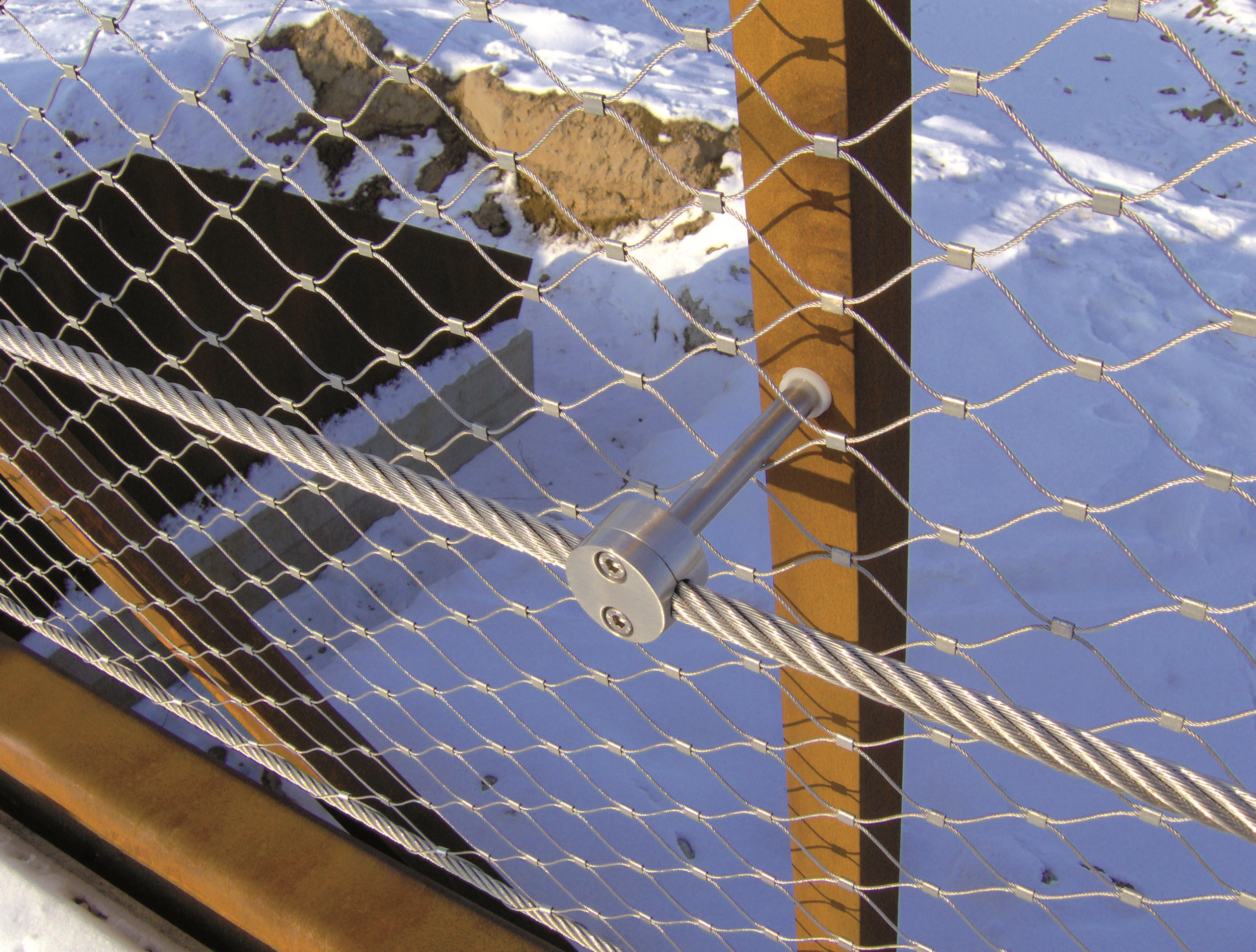

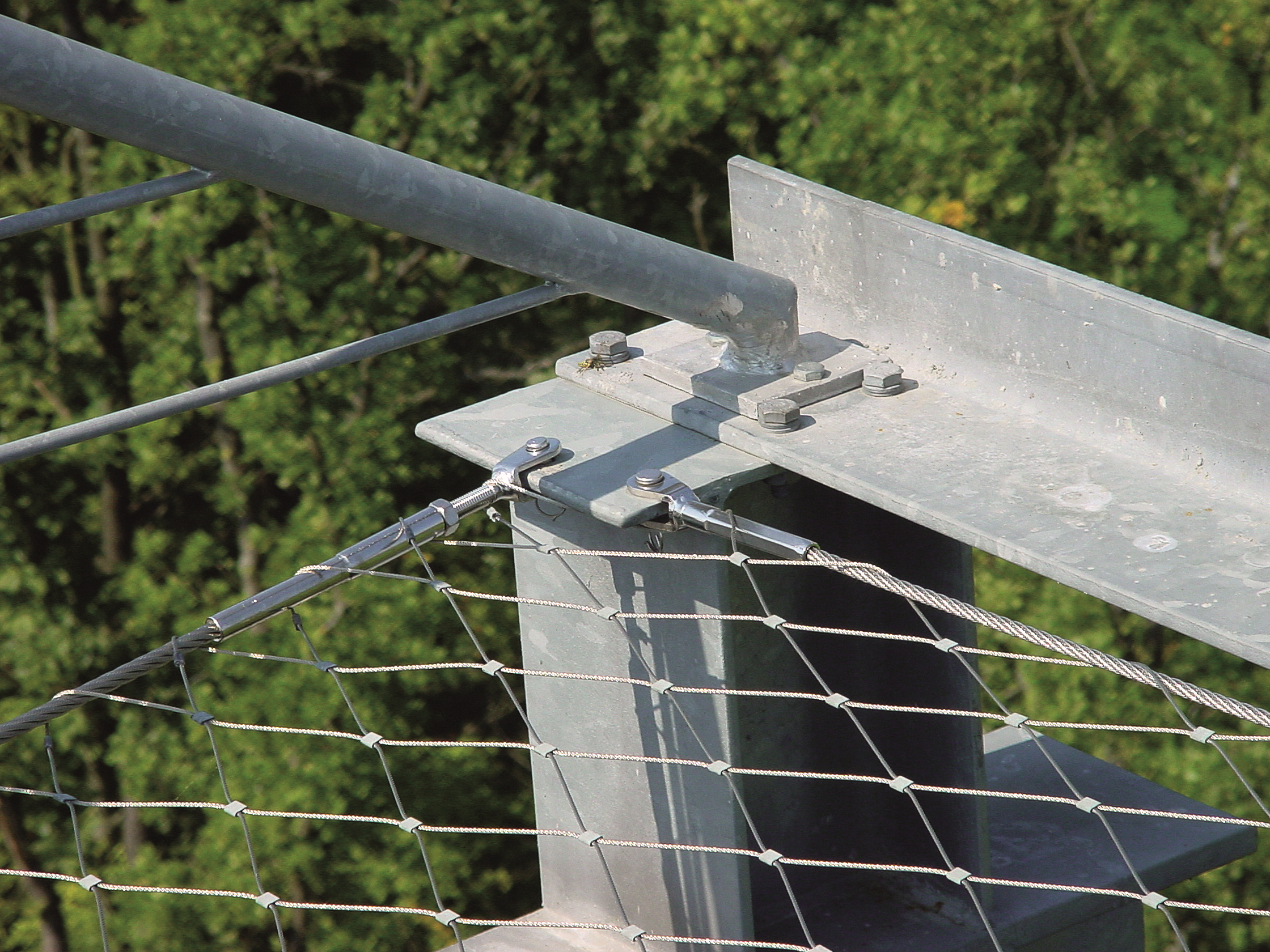

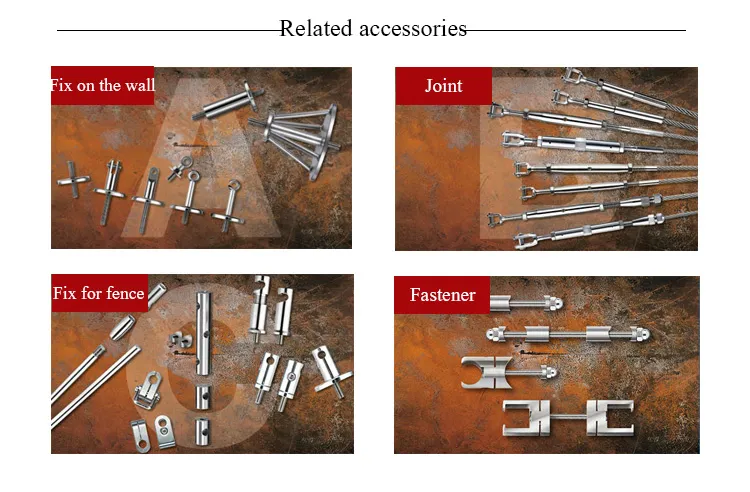

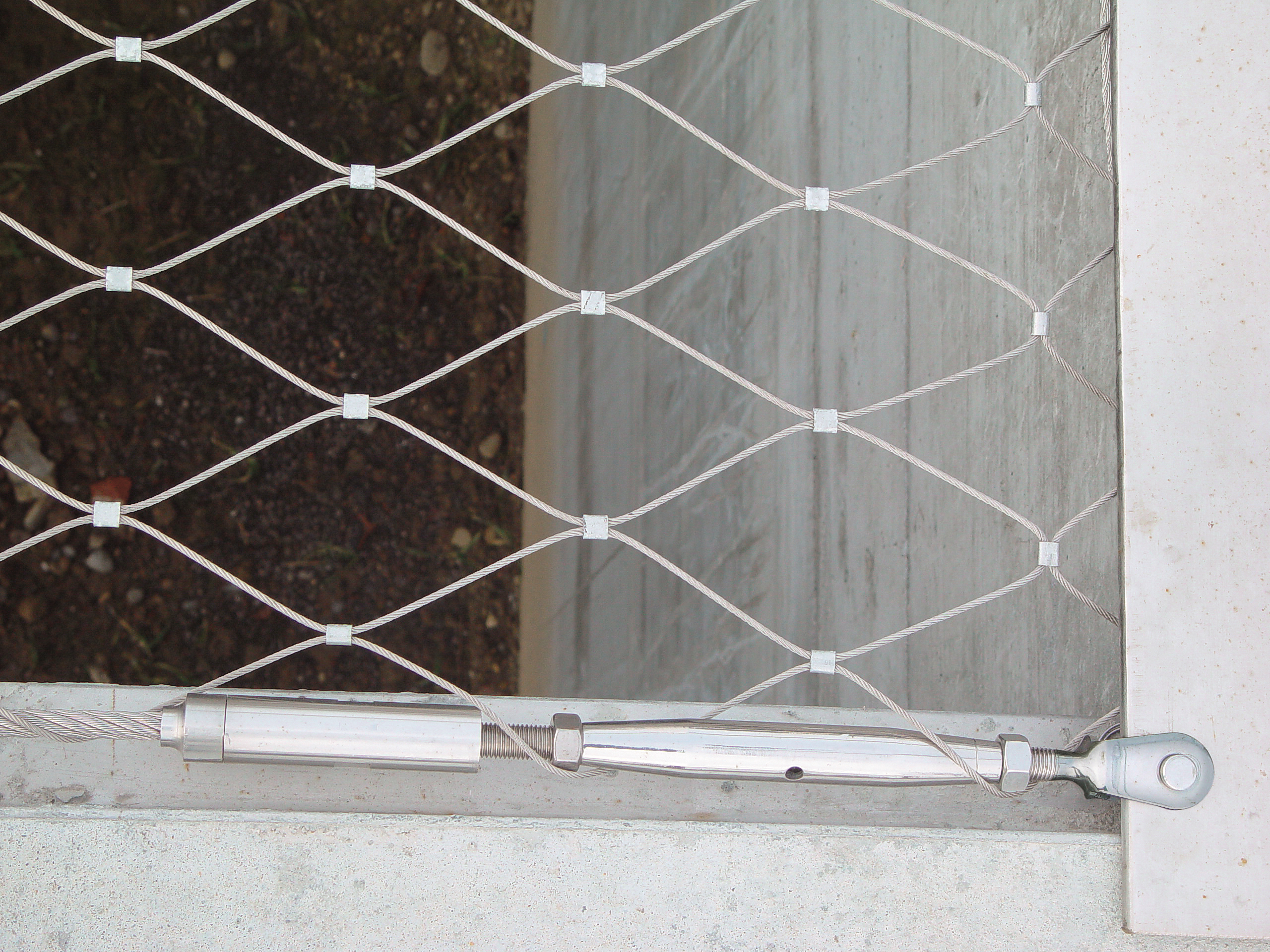

Typical installation involves fixing anchor plates or frames, attaching the boundary cables of the mesh with eye bolts or clamps, and then tensioning the mesh evenly so that the diamond openings become regular and the surface is flat. Our team can supply detailed shop drawings, installation accessories and on-line technical guidance to help you complete projects quickly and safely.
Packaging & Shipping
 |
Each piece of 304 316 stainless steel rope safety wire mesh is carefully rolled and wrapped with waterproof film, then packed into strong woven bags or wooden cases according to the size and quantity. Proper packaging prevents mesh deformation and surface damage during transportation and repeated loading and unloading.
Shipping
- Custom sample time: 5~7 days.
- Mass production time: 10~15 days (depending on the quantity).
- Stock items time: 2~3 days after we receive the payment.
- Express way: 3~7 days (such as DHL, FedEx, UPS, TNT, EMS etc.).
- By Air: 3~10 days.
- By Sea: 30~45 days.
Key Advantages
- Light weight and high flexibility: Customizable width, length, rope diameter and opening size, available in diagonal and irregular shapes for easy installation in various conditions.
- High strength and durability: Stainless steel ferrules combine ropes firmly, creating a mesh resistant to fatigue and impact.
- Excellent corrosion resistance: Made from 304, 316, 304L or 316L stainless steel with a lifespan exceeding 30 years.
- Eco-friendly and low maintenance: Fully recyclable material requiring minimal upkeep.
Applications
The flexible and customizable nature of cable rope mesh makes it suitable for diverse applications including:
- Slope protection rope mesh
- Zoo enclosures and animal barriers
- Green wall support systems
- Balustrade and railing safety mesh
- Suspension bridge railings
- Anti-theft backpack protectors
- Architectural facades and partitions
