Stainless steel cable mesh is a new generation of flexible safety and architectural netting. It is woven from high quality stainless steel wire rope, typically AISI 316 stainless steel, and is also available in grades 304 and 316L. Stainless steel rope mesh combines high strength, transparency and flexibility, making it ideal for balustrade nets, safety netting, zoological enclosures, zoo mesh fence, building facades, green walls and creative art installations.
The Specification of Stainless Steel Ferrule Rope Mesh

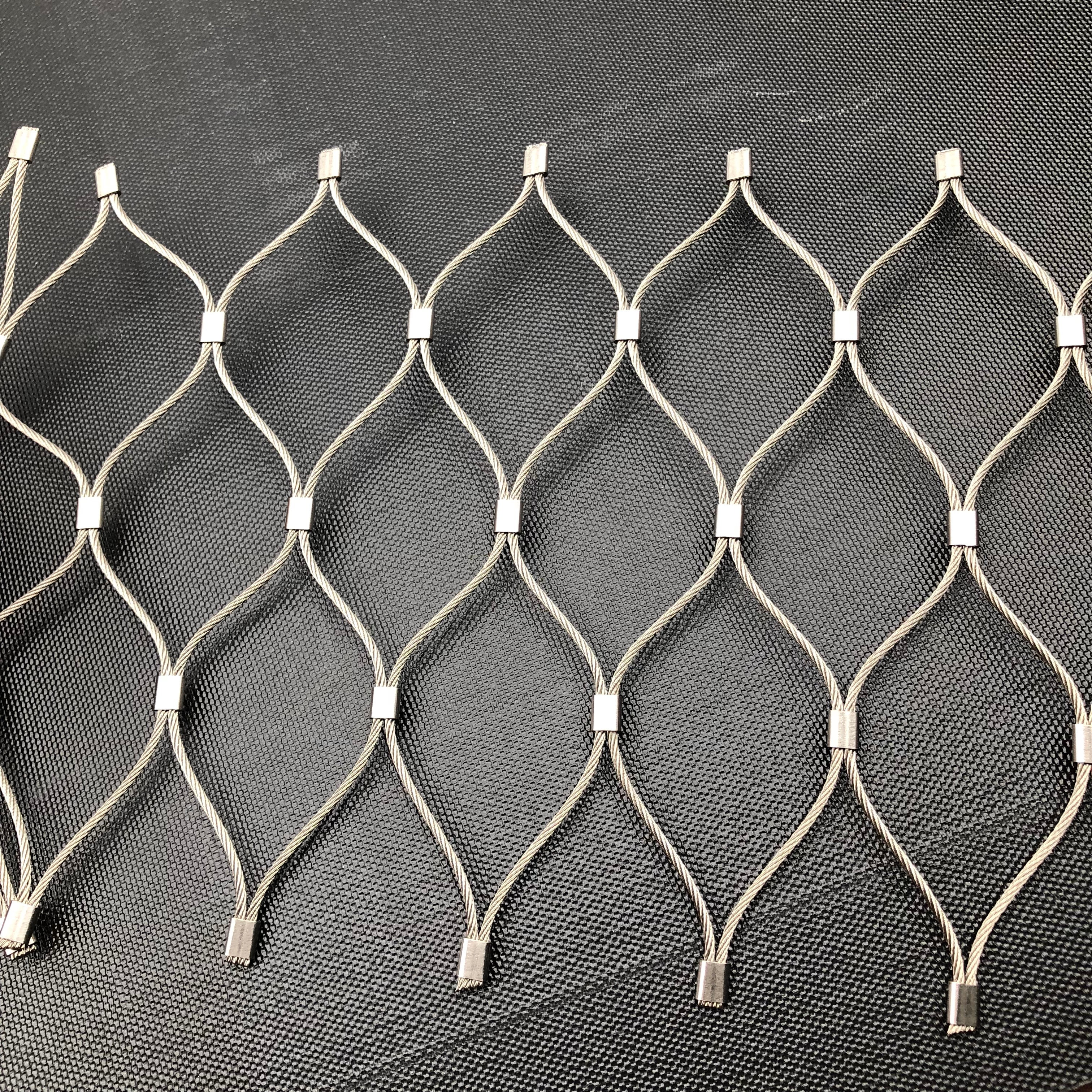

Ferrule type stainless steel cable mesh is made from S.S 304, 316 or 316L wire rope. Each cable is connected with pressed stainless steel ferrules to form a strong and elegant diamond mesh. Below is the standard specification list for ferruled stainless steel wire rope mesh.
The list of Stainless Steel Wire Rope Mesh (ferruled mesh) – Material made of S.S 304 or 316 and 316L | ||||||
Code | Wire Rope Construction | Min. Breaking Load (KN) | Wire Rope Diameter | Aperture | ||
Inch | mm | Inch | mm | |||
POLYMETAL-3210F | 7×19 | 8.735 | 1/8 | 3.2 | 4″ x 4″ | 102 x 102 |
POLYMETAL-3276F | 7×19 | 8.735 | 1/8 | 3.2 | 3″ x 3″ | 76 x 76 |
POLYMETAL-3251F | 7×19 | 8.735 | 1/8 | 3.2 | 2″ x 2″ | 51 x 51 |
POLYMETAL-2410F | 7×7 | 5.315 | 3/32 | 2.4 | 4″ x 4″ | 102 x 102 |
POLYMETAL-2476F | 7×7 | 5.315 | 3/32 | 2.4 | 3″ x 3″ | 76 x 76 |
POLYMETAL-2451F | 7×7 | 5.315 | 3/32 | 2.4 | 2″ x 2″ | 51 x 51 |
POLYMETAL-2076F | 7×7 | 3.595 | 5/64 | 2.0 | 3″ x 3″ | 76 x 76 |
POLYMETAL-2051F | 7×7 | 3.595 | 5/64 | 2.0 | 2″ x 2″ | 51 x 51 |
POLYMETAL-2038F | 7×7 | 3.595 | 5/64 | 2.0 | 1.5″ x 1.5″ | 38 x 38 |
POLYMETAL1676F | 7×7 | 2.245 | 1/16 | 1.6 | 3″ x 3″ | 76 x 76 |
POLYMETAL-1651F | 7×7 | 2.245 | 1/16 | 1.6 | 2″ x 2″ | 51 x 51 |
POLYMETAL-1638F | 7×7 | 2.245 | 1/16 | 1.6 | 1.5″ x 1.5″ | 38 x 38 |
POLYMETAL-1625F | 7×7 | 2.245 | 1/16 | 1.6 | 1″ x 1″ | 25.4 x 25.4 |
POLYMETAL-1251F | 7×7 | 1.36 | 3/64 | 1.2 | 2″ x 2″ | 51 x 51 |
POLYMETAL-1238F | 7×7 | 1.36 | 3/64 | 1.2 | 1.5″ x 1.5″ | 38 x 38 |
POLYMETAL-1225F | 7×7 | 1.36 | 3/64 | 1.2 | 1″x1″ | 25.4×25.4 |
 |  |  |
Application of Stainless Steel Cable Mesh

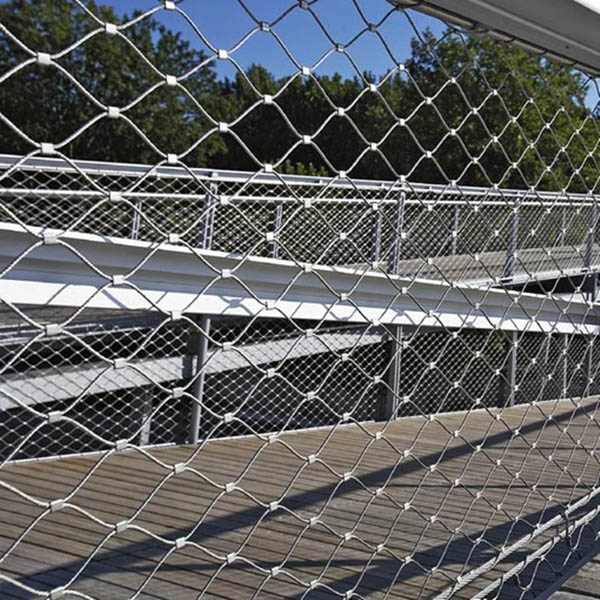

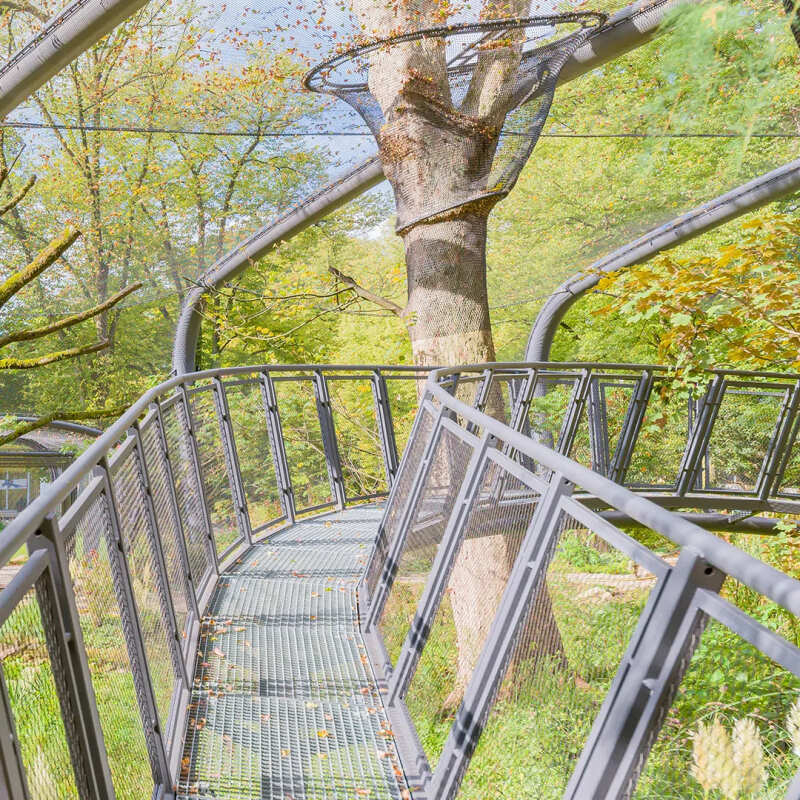

Zoo construction: animal enclosures, aviary mesh, bird cages, wildlife parks, marine parks and other zoological facilities.
Protective device: playground fences, acrobatic show protection nets, stadium protection, wire rope mesh fences and fall protection barriers.

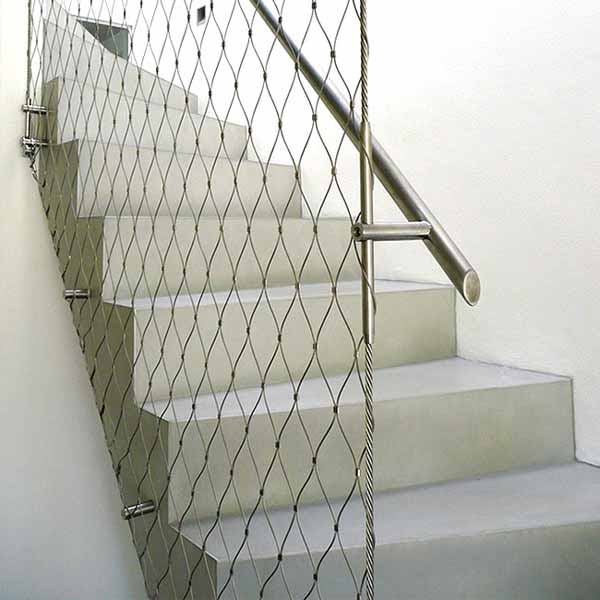

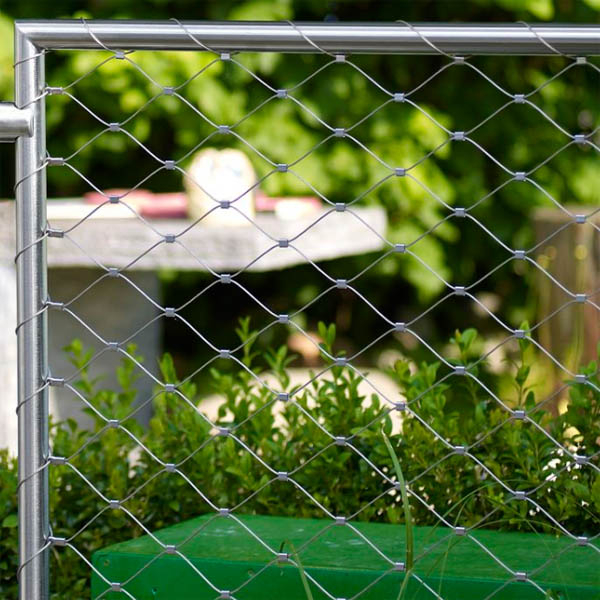

Architecture safety net: stair and balcony railing infill, balustrades, bridge safety nets, anti-fall nets and edge protection for high-rise buildings.

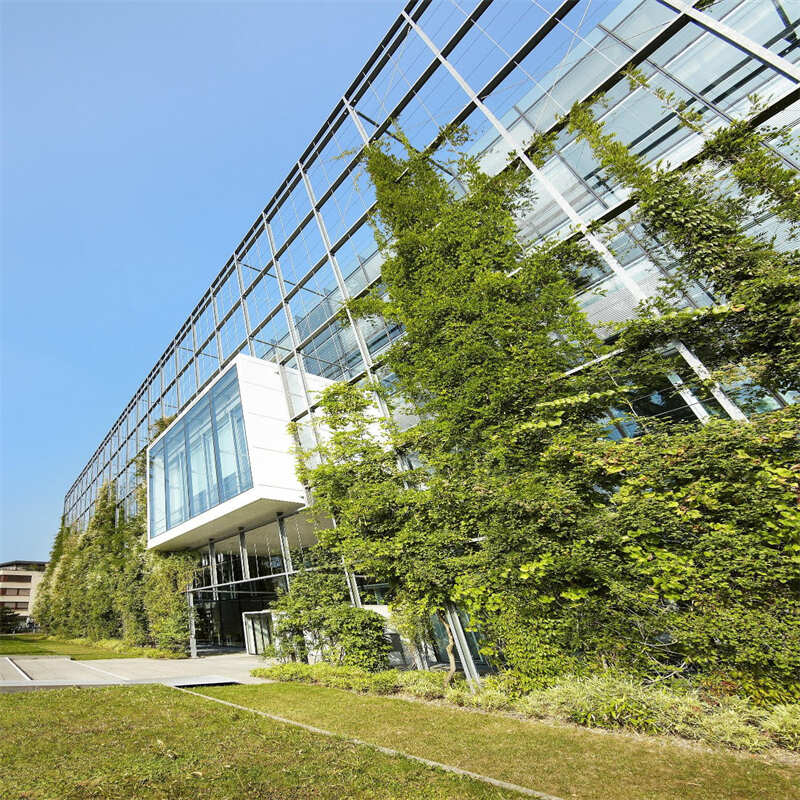

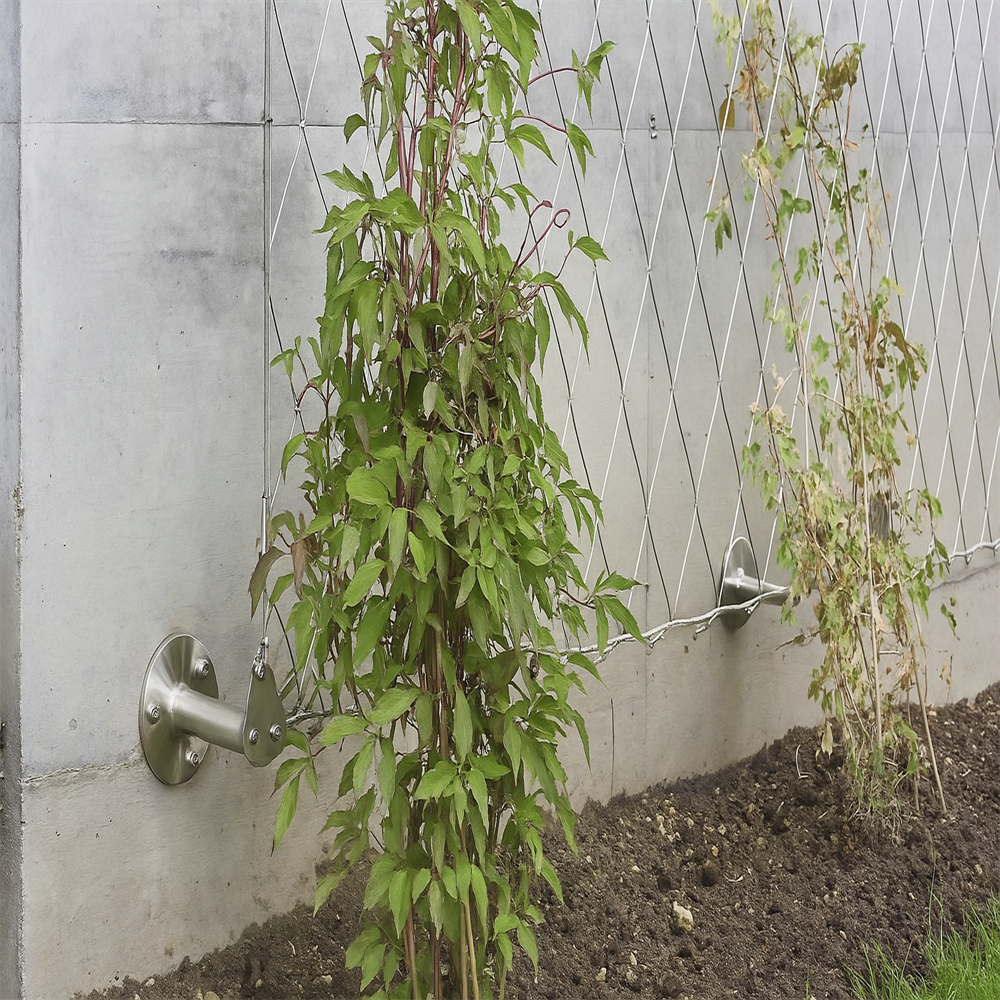

Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall and plant climbing support structures.
Stainless Steel Wire Rope ferrule mesh is a rhombus mesh with excellent flexible performance, virtually indestructible, high impact resistance and strong breaking strength, and it effectively resists rain, snow and hurricane. Because the material is high grade stainless steel, stainless steel cable mesh can safely contain any species on land or in the air, indoors or outdoors. The weave opening of stainless steel cable mesh can be infinitely customized to match your exact exhibit or project specifications and ensure complete security.
Specifications / Special Features
- We produce stainless steel wire mesh from first-class stainless steel wire materials in SUS302, 304, 316, 304L and 316L.
- Typical weaving patterns for stainless steel wire mesh include plain weave, twill weave and dutch weave.
- Because of its excellent resistance to acid, alkali, heat and corrosion, stainless steel wire mesh is widely used in the processing of oils, chemicals, food and pharmaceuticals, and for sorting and screening of solid, liquid and gas in mining, metallurgy, aerospace and machinery industries.
- We provide practical advice and full support on specification choices and installation schemes for stainless steel cable mesh projects.
Materials – Stainless Steel Cable Mesh
Flexible stainless steel cable mesh is made from stainless steel wire rope in material types SUS304, SUS304L, SUS316 and SUS316L, with two main strand structures: 7×7 and 7×19. Our stainless steel cable mesh products are supplied in two main series according to weave type: inter-woven (knotted) mesh and ferrule type mesh. The ferrule type series is sub-divided into aluminium alloy ferrule mesh and stainless steel ferrule mesh according to the ferrule material.
Specification – Stainless Steel Rope Mesh (Cable Mesh)
| Cable Construction | Cable Diameter | Mesh Hole Size (W x H) | Breaking Strength | ||
| inch | mm | inch | mm | KN | |
| 7×19 | 1/8 | 3.2 | 4.75” x 4.75” | 120×120 | 7.38 |
| 7×19 | 1/8 | 3.2 | 4” x 4” | 102×102 | 7.38 |
| 7×19 | 1/8 | 3.2 | 3.6” x 3.6” | 90×90 | 7.38 |
| 7×19 | 1/8 | 3.2 | 3” x 3” | 76×76 | 7.38 |
| 7×19 | 1/8 | 3.2 | 2” x 2” | 51×51 | 7.38 |
| 7×7 | 3/32 | 2.4 | 4” x 4” | 102×102 | 4.18 |
| 7×7 | 3/32 | 2.4 | 3.6” x 3.6” | 90×90 | 4.18 |
| 7×7 | 3/32 | 2.4 | 3” x 3” | 76×76 | 4.18 |
| 7×7 | 3/32 | 2.4 | 2.4” x 2.4” | 60×60 | 4.18 |
| 7×7 | 3/32 | 2.4 | 2” x 2” | 51×51 | 4.18 |
| 7×7 | 5/64 | 2.0 | 3” x 3” | 76×76 | 3.17 |
| 7×7 | 5/64 | 2.0 | 2.4” x 2.4” | 60×60 | 3.17 |
| 7×7 | 5/64 | 2.0 | 2” x 2” | 51×51 | 3.17 |
| 7×7 | 5/64 | 2.0 | 1-1/2” x 1-1/2” | 38×38 | 3.17 |
| 7×7 | 1/16 | 1.6 | 3” x 3” | 76×76 | 2.17 |
| 7×7 | 1/16 | 1.6 | 2” x 2” | 51×51 | 2.17 |
| 7×7 | 1/16 | 1.6 | 1-1/2” x 1-1/2” | 38×38 | 2.17 |
| 7×7 | 1/16 | 1.6 | 1.2” x 1.2” | 30×30 | 2.17 |
| 7×7 | 1/16 | 1.6 | 1” x 1” | 25.4×254 | 2.17 |
| 7×7 | 3/64 | 1.2 | 1-1/2” x 1-1/2” | 38×38 | 1.22 |
| 7×7 | 3/64 | 1.2 | 1.2” x 1.2” | 30×30 | 1.22 |
| 7×7 | 3/64 | 1.2 | 1” x 1” | 25.4×25.4 | 1.22 |
| 7×7 | 3/64 | 1.2 | 4/5” x 4/5” | 20×20 | 1.22 |

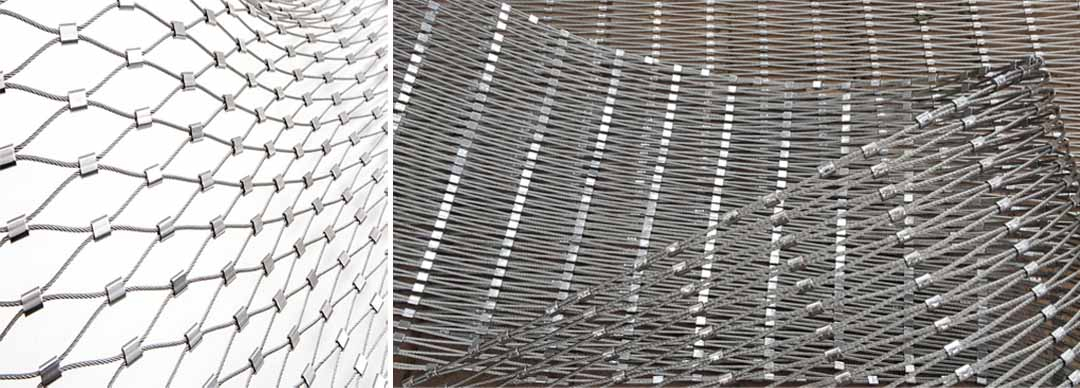

The architectural stainless steel wire mesh Webnet is a vibrant and top-quality form of stainless steel cable mesh, where the mesh size (from very tight to wide) and the wire rope diameter (1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine both its functionality and aesthetics.
Stainless Steel Rope Mesh Description
- Stainless steel cable mesh is made of stainless steel wire cable, available in three main types: inter-woven (weave type), loose ferrule type and seamless sleeve type, and can be colored by surface treatment for decorative applications.
- Stainless steel knotted cable mesh has unique rhombic openings that provide excellent visibility, making it very suitable for zoo mesh and bird cages so visitors can watch animals clearly while being safely protected.
- Stainless steel knotted rope mesh can be used in any climate and environment; it is resistant to rust, sunlight, rain, snow and fog, offers a service life of more than 30 years, can be reused and requires almost no maintenance after installation.
- Stainless steel knotted rope mesh has a smooth surface and diamond-shaped openings, giving it a luxurious appearance so that the mesh itself becomes a beautiful landscape element.
- Knotted rope mesh has good elasticity and buffer ability, so it resists impact from animals when used in zoos without hurting animals or damaging the stainless steel cable mesh, providing a safe and comfortable living environment for animals and birds.
| rod articulation | stainless steel cables |
| stainless steel sleeves | cable eye ends |
| suspension rope clamps | wall mount |
| external thread ends | stainless steel turnbuckle |
Service
- Free sample: a sample smaller than 1-foot square of stainless steel cable mesh is provided free of charge, and the requester pays the courier cost.

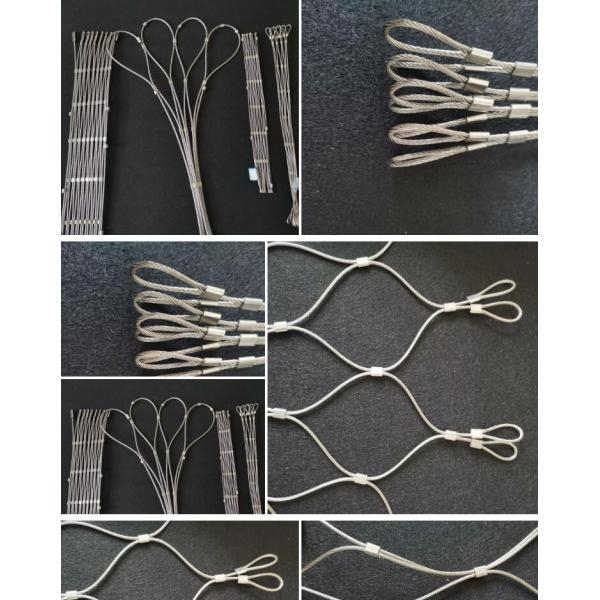

- Panel size: stainless steel cable mesh panels can be customized to the sizes you provide, reducing cost and making installation easier.
- Packaging: the rope mesh will be rolled and packed into P.P. woven bags or pallets to ensure safe transport.
- Lead time: orders can be arranged within 24 hours, and the lead time is typically 7–30 days depending on the order quantity.
- For individual users: we can provide installation tools and accessories so that you can efficiently complete DIY installation of stainless steel cable mesh.
- Order terms: we charge a 30% deposit, and you can check and accept the goods and pay the final balance before shipment.
