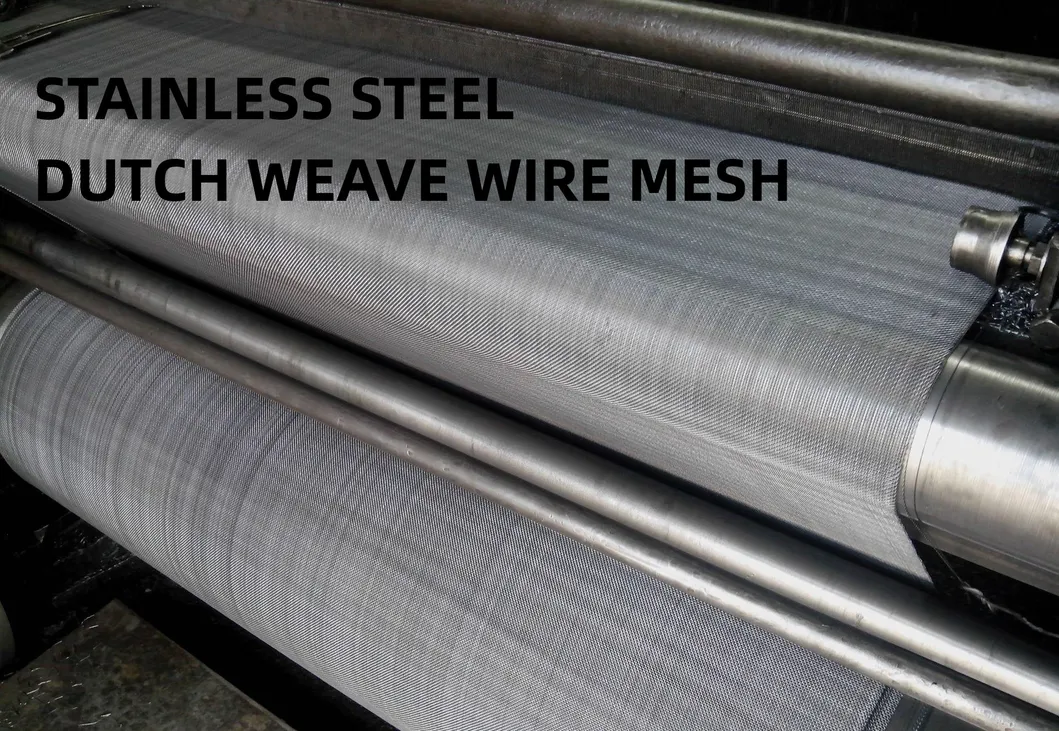

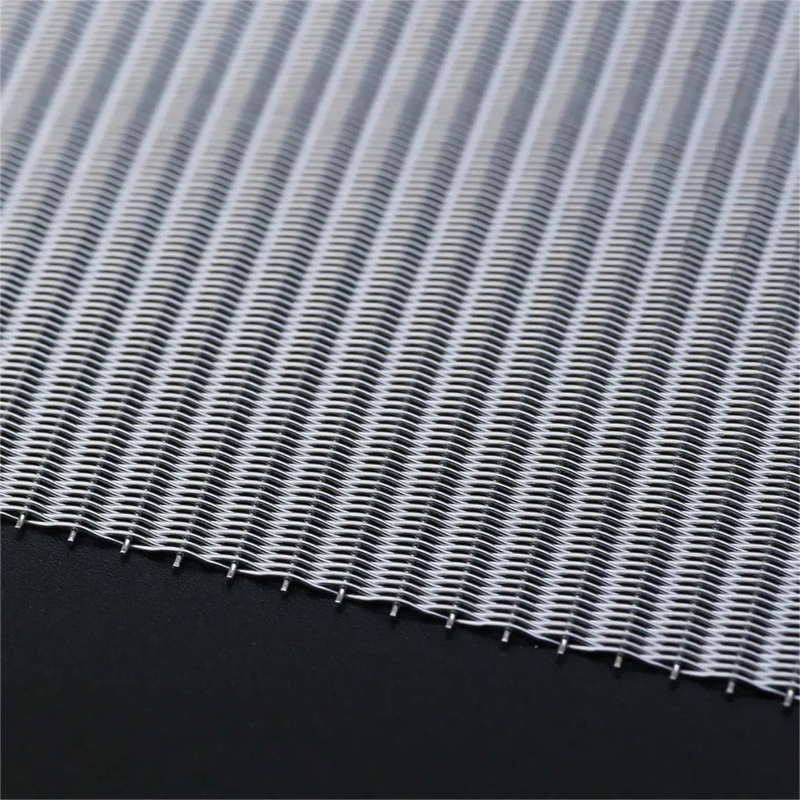

Stainless Steel Dutch Weave Wire Cloth

Stainless Steel Dutch Weave Wire Cloth is a precision-woven filter mesh specially designed for high-performance liquid and gas filtration. Unlike standard square woven mesh, Dutch weave combines
different wire diameters in warp and weft with very dense weft spacing to create extremely fine, elongated flow channels. This gives excellent micron-level filtration, high mechanical strength and
stable pore size, making it an ideal filter cloth for demanding industrial processes.Dutch weave wire cloth is commonly produced from stainless steel wire, but it can also be woven from nickel wire, brass wire ( copper wire mesh ) and galvanized wire according to the working environment and corrosion requirements. Stainless steel (304, 316, etc.) is especially popular for its outstanding corrosion resistance, cleanliness and long service life.

Plain-Dutch-Weave-165-1200-Mesh-304-316-Stainless-Steel-Woven-Wire-Mesh-3

Stainless Steel Dutch Weave Wire Cloth

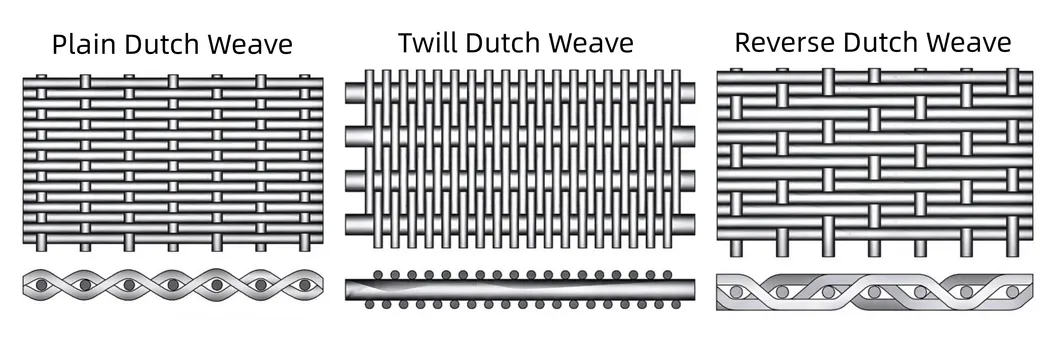

Dutch Weave Wire Cloth has four main types of weaves: plain Dutch woven, twill Dutch woven, reverse Dutch woven and five heddle weave.
All of them can be produced using:

Stainless steel wire
Nickel wire
Brass wire
Galvanized wire

These different Dutch weaves are primarily used as filter cloth. The coarser warp wires supply tensile strength and dimensional stability, while the finer, densely packed weft wires create tiny flow channels for accurate filtration.

Plain-Dutch-Weave-165-1200-Mesh-304-316-Stainless-Steel-Woven-Wire-Mesh-2

Plain-Dutch-Weave-165-1200-Mesh-304-316-Stainless-Steel-Woven-Wire-Mesh-1

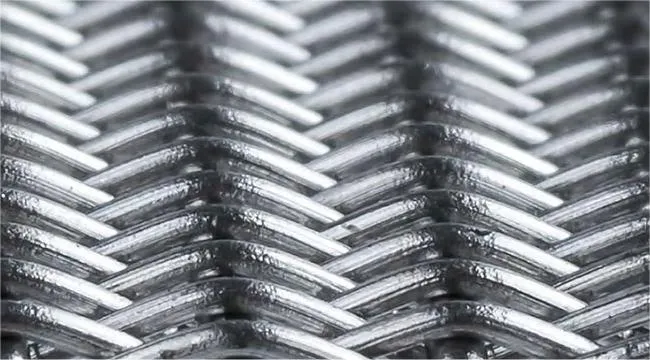

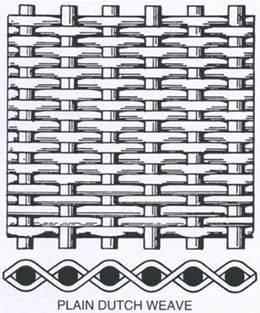

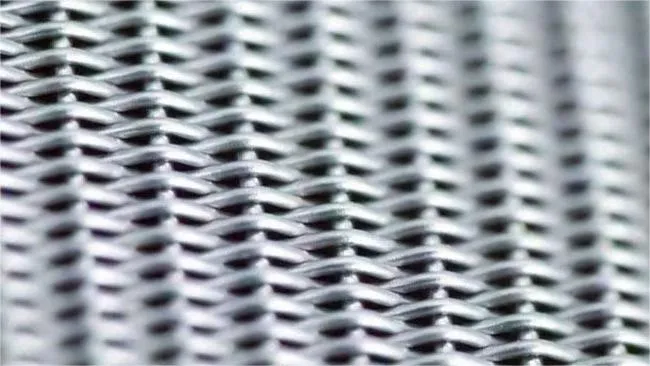

1. Plain Stainless Steel Dutch Weave Wire Cloth

Plain Dutch Woven Wire Cloth is woven with a large wire diameter in the warp direction and a relatively smaller wire in the shute (weft) direction. The warp wires pass alternately over and under each weft wire (plain weave pattern), while the fine weft wires are driven close together to form continuous, narrow filtration channels.

High tensile strength in the warp direction.
Wide range of micron filtration values.
Optimized for filtering liquid and slurry products.

It is primarily used to filter a wide range of liquid and slurry products and is suitable for applications in chemical, petrochemical, food, pharmaceutical and wastewater treatment systems.

1.1 Basic Specification of Plain Dutch Weave Wire Cloth

Specification of Plain Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m²	Filtering value μm
7 x 50	0.70 x 0.54	4.50	315
8 x 60	0.55 x 0.45	3.64	280
12 x 64	0.58 x 0.42	3.80	180
16 x 80	0.43 x 0.34	3.05	140
14 x 88	0.50 x 0.33	2.81	150
18 x 100	0.40 x 0.28	2.61	140
24 x 110	0.35 x 0.25	2.45	115
25 x 140	0.30 x 0.20	1.96	100
30 x 150	0.23 x 0.18	1.61	95
30 x 160	0.23 x 0.18	1.69	90
40 x 200	0.18 x 0.14	1.30	75
45 x 220	0.18 x 0.125	1.22	56
50 x 250	0.14 x 0.11	1.00	60
50 x 280	0.14 x 0.10	0.84	45
60 x 300	0.14 x 0.09	0.80	40
65 x 320	0.12 x 0.085	0.75	36
70 x 350	0.11 x 0.08	0.70	32
70 x 400	0.11 x 0.07	0.68	31
80 x 400	0.12 x 0.07	0.77	35

1.2 Detailed Specification Sheet of Plain Dutch Weave Woven Wire Cloth

Below is a more detailed specification sheet of plain Dutch weave woven wire cloth, including absolute and nominal filtration values and maximum widths:

Specification Sheet of the Plain Dutch Weave Woven Wire Cloth
Serial Number	Mesh Count	Wire Diameter		Absolute Filtration Value	Nominal Filtration Value	Maximum Width
Serial Number	Mesh Count	Inch	mm	μm	μm	mm
PDW-1	8 × 85	0.0140 × 0.0126	0.36 × 0.32	300–320	310	2000
PDW-2	12 × 64	0.0240 × 0.0165	0.61 × 0.42	260–280	250	2000
PDW-3	12 × 90	0.0178 × 0.0120	0.45 × 0.30	270–300	211	2000
PDW-4	14 × 88	0.0200 × 0.0130	0.51×0.33	255–275	250	2000
PDW-5	14 × 100	0.0160 × 0.0110	0.41×0.28	235–260	182	2000
PDW-6	16 × 80	0.0170 × 0.0135	0.43 × 0.34	210–230	260	2000
PDW-7	16 × 100	0.0157 × 0.0110	0.40 × 0.28	200–220	160	2000
PDW-8	16 × 120	0.0140 × 0.0094	0.36 × 0.24	180–198	150	2000
PDW-9	20 × 150	0.0098 × 0.0070	0.25 × 0.18	155–185	120	2000
PDW-10	24 × 110	0.0150 × 0.0100	0.38 × 0.25	115–128	110	2000
PDW-11	30 × 150	0.0090 × 0.0070	0.23 × 0.18	90–105	90	2000
PDW-12	30 × 280	0.0110 × 0.0037	0.28 × 0.09	100–110	100	2000
PDW-13	40 × 200	0.0070 × 0.0055	0.18 × 0.14	70–80	70	2000
PDW-14	40 × 340	0.0098 × 0.0030	0.25 × 0.08	78–84	75	2000
PDW-15	50 × 250	0.0055 × 0.0045	0.14 × 0.11	52–57	55	2000
PDW-16	50 × 280	0.0055 × 0.0040	0.14 × 0.10	50–55	50	2000
PDW-17	50 × 460	0.0078 × 0.0023	0.20 × 0.06	60–65	60	1300
PDW-18	60 × 500	0.0065 × 0.0020	0.17 × 0.05	48–54	50	1300
PDW-19	70 × 350	0.0050 × 0.0030	0.13 × 0.08	41–47	35	1300
PDW-20	70 × 620	0.0060 × 0.0018	0.15 × 0.05	45–48	45	1300
PDW-21	80 × 300	0.0050 × 0.0035	0.13 × 0.09	45–50	45	1300
PDW-22	80 × 400	0.0050 × 0.0028	0.13 × 0.07	40–45	40	1300
PDW-23	80 × 700	0.0040 × 0.0013	0.10 × 0.03	35–44	35	1300

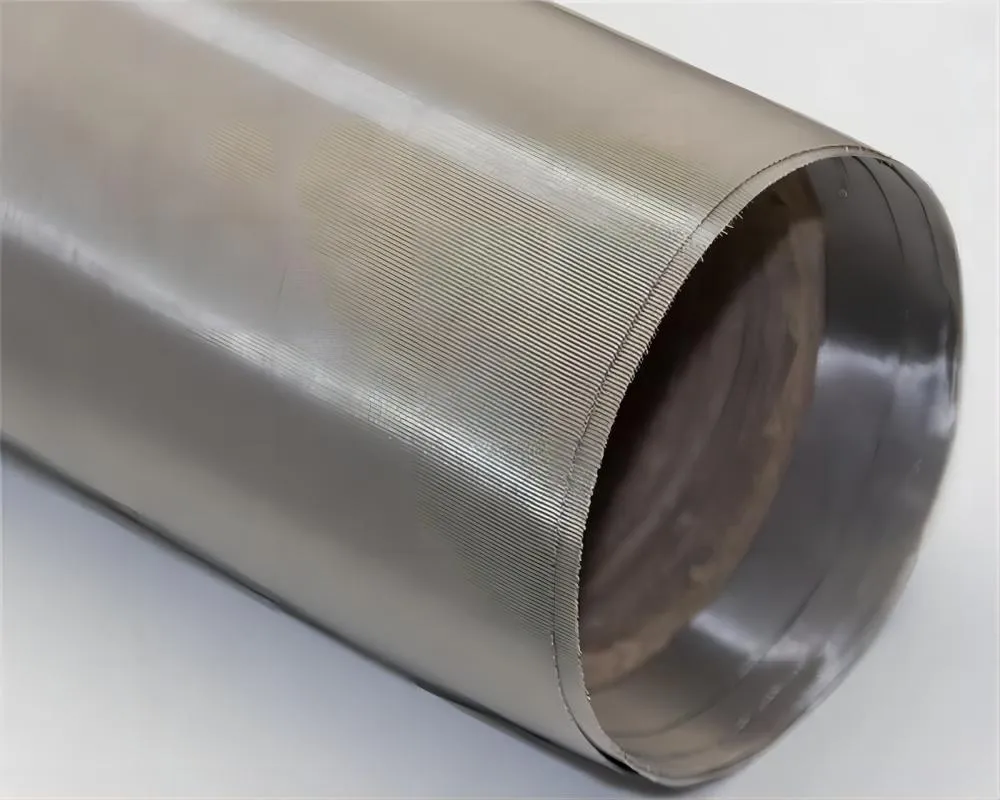

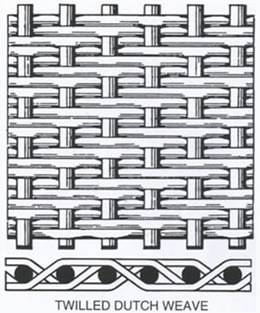

2. Twill Dutch Weave Wire Cloth

Twill Dutch Weave Wire Cloth is a combination of Dutch weave and twill weave. The larger diameter warp wires successively pass over and under the lighter diameter shute wires, and each pass of the shute wires shifts the over-and-under movement by one wire. The fine weft wires are driven up very close together, resulting in a tightly woven filter cloth with tapered or wedge-shaped openings.

Compared with normal twill woven wire cloth, twill Dutch weave has:

Much finer openings for better filtration performance.
Higher tensile strength due to the heavy warp wires.
Ability to handle ultra-fine filtration at low micron levels.
A more stable and robust structure under pressure.

Twill Dutch woven wire mesh is suitable for filtering heavy or high-viscosity materials and is widely used in polymer melt, hydraulic systems, chemical and petrochemical filtration and other high-pressure,
high-precision processes.

Plain-Dutch-Weave-165-1200-Mesh-304-316-Stainless-Steel-Woven-Wire-Mesh-4

2.1 Basic Specification of Stainless Steel Dutch Weave Wire Cloth

Specification of Twill Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m²	Filtering value μm
20 x 250	0.90 x 0.20	6.55	87
30 x 250	0.25 x 0.20	2.96	70
80 x 700	0.10 x 0.08	1.32	25
80 x 780	0.11 x 0.07	1.19	27
100 x 780	0.10 x 0.07	1.20	25
100 x 900	0.10 x 0.06	1.06	22
100 x 780	0.10 x 0.07	1.21	24
120 x 400	0.10 x 0.06	0.66	40
120 x 600	0.10 x 0.06	0.84	30
120 x 1100	0.08 x 0.05	0.88	18
165 x 800	0.07 x 0.05	0.70	15
165 x 1200	0.07 x 0.04	0.68	19
165 x 1400	0.07 x 0.04	0.76	14
200 x 600	0.06 x 0.045	0.48	20
200 x 900	0.05 x 0.035	0.40	23
200 x 1400	0.07 x 0.04	0.80	10
250 x 2000	0.04 x 0.027	0.46	8
280 x 2200	0.035 x 0.025	0.42	6.3
320 x 2300	0.033 x 0.024	0.41	5
325 x 2300	0.035 x 0.025	0.45	5
400 x 2800	0.025 x 0.020	0.36	3
500 x 3500	0.025 x 0.015	0.30	5

2.2 Twill Stainless Steel Dutch Weave Wire Cloth– Additional Specification Sheet

Twill dutch weave woven wire cloth.

Twill Dutch weave woven wire mesh is superior to standard twill woven wire cloth because of its finer openings and higher load-carrying capacity. It is especially suitable for filtering heavy materials and ultra-fine
products.

Advantages compared with twill Stainless Steel Dutch Weave Wire Cloth

Better filtering performance.
Higher tensile strength.
Can be used for filtering ultra-fine products.
Much more stable structure.

Specification Sheet of the Twill Dutch Weave Woven Wire Cloth
Item	Mesh/Inch	Absolute micron retention (μm)	Weight (kg/m²)	Cloth Thickness (mm)
TDW-01	510 × 3600	4 – 5	0.3	0.06
TDW-02	400 × 2800	5 – 6	0.36	0.06
TDW-03	375 × 2300	6 – 7	0.39	0.08
TDW-04	325 × 2300	7 – 8	0.47	0.09
TDW-05	260 × 1550	8 – 10	0.68	0.12
TDW-06	250 × 1400	11 – 12	0.68	0.12
TDW-07	200 × 1400	11- 13	0.75	0.14
TDW-08	130 × 700	13 – 15	1.6	0.28
TDW-09	200 × 1120	15 – 17	0.95	0.16
TDW-10	165 × 1400	15 – 18	0.7	0.15
TDW-11	165 × 1100	20 – 21	0.9	0.16
TDW-12	80 × 700	34 – 36	1.2	0.26
TDW-13	40 × 560	71 – 80	1.7	0.39
TDW-14	30 × 360	95 – 106	2.6	0.54
TDW-15	30 × 250	100 – 112	3.2	0.65
TDW-16	20 × 260	110 – 120	3.1	0.67
TDW-17	28 × 560	106 – 112	1.95	0.46
TDW-18	24 × 300	112 – 118	2.85	0.63

3. Reverse Stainless Steel Dutch Weave Wire Cloth

Reverse Dutch Weave Wire Cloth is a very strong woven product in which the arrangement of coarse and fine wires is reversed compared with standard Dutch weave. It is especially suitable for making filter belts and for applications requiring fine filtration combined with very high mechanical strength.

Properties:

Very good flow rates.
Small pressure drop.
Slightly structured surface.

Typical Applications:

Pressure filters.
Vacuum filters.
Filter candles.

3.1 Specification of Reverse Stainless Steel Dutch Weave Wire Cloth

Specification of Reverse Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter Warp x Weft mm	Wire Diameter Warp x Weft inch	Absolute Filter rating μm
63 x 18	0.40 x 0.60	0.0157 x 0.0236	220
107 x 20	0.24 x 0.60	0.0094 x 0.0236	210
130 x 35	0.20 x 0.40	0.0079 x 0.0157	80
132 x 16	0.24 x 0.60	0.0094 x 0.0236	200
132 x 32	0.20 x 0.40	0.0079 x 0.0157	105
140 x 40	0.19 x 0.38	0.0075 x 0.015	100
170 x 40	0.20 x 0.45	0.0079 x 0.0177	130
180 x 120	0.088 x 0.10	0.0035 x 0.004	75
200 x 120	0.08x 0.10	0.0031 x 0.004	70
175 x 40	0.15 x 0.38	0.0079 x 0.0157	70
175 x 50	0.15 x 0.30	0.0059 x 0.012	60
290 x 75	0.09 x 0.20	0.0035 x 0.0079	55
600 x 100	0.04x 0.14	0.0157 x 0.0055	25
615 x 130	0.04 x 0.13	0.0157 x 0.0051	22
615 x 102	0.04x 0.16	0.0157 x 0.0063	42
625 x 133	0.04 x 0.13	0.0157 x 0.0051	17
720 x 150	0.036 x 0.10	0.0014 x 0.0039	17
850 x 155	0.03 x 0.10	0.0012 x 0.004	10

4. General Description – Plain Dutch & Twill Dutch Woven Wire Mesh

Dutch weave woven wire mesh is manufactured mainly from stainless steel wire. It differs from plain weave and twill weave woven wire mesh because it uses two different wire diameters and
different mesh counts in warp and weft. Typically:

The warp wire is coarser, providing high tensile strength and stability for the cloth.
The weft wire is finer and packed very densely, ensuring excellent filter performance and
fine openings.

This unique structure with greater strength and finer openings is primarily used as a filter cloth in critical filtration processes.

Dutch woven wire mesh has zero aperture sizes for outstanding filtering performance.

Applications of Dutch Weave Woven Wire Mesh

Dutch weave woven wire mesh is mainly used for filtering. It provides superior filtration
capabilities for a wide range of applications:
- Aerospace
- Petrochemical
- Pharmaceutical
- Mining
- Waste water treatment
According to the material and process, plain Dutch and twill Dutch can be
used in different ways:
- The plain Dutch weave woven wire mesh is mainly used for filtering and separating
  liquid and slurry products.
- The twill Dutch weave woven wire mesh is used for filtering heavy materials and
  ultra-fine products where higher loads are involved.

Package of Stainless Steel Dutch Weave Wire Cloth

Waterproof brown paper.
Wooden box.

Stainless Steel Dutch Weave Wire Cloth Packing

Dutch weave woven wire mesh in waterproof brown paper package.

Dutch weave woven wire mesh in wooden box package.

5. Summary

From plain Dutch to twill Dutch and reverse Dutch weaves, stainless steel Dutch weave wire cloth provides a complete family of high-precision filter meshes. With different combinations of warp/weft diameters, mesh counts and weave patterns, these meshes deliver:

Micron-level filtration accuracy.
High mechanical strength and stability under pressure.
Excellent corrosion and temperature resistance.
Long service life and reliable performance in harsh industrial environments.

By selecting the proper weave type, material and specification, Dutch weave woven wire mesh can solve critical filtration challenges in aerospace, petrochemical, pharmaceutical, mining, wastewater and many other industries.
