Stainless steel wire rope mesh fence: 17 shocking secrets

Stainless steel wire rope mesh fence is not just another metal barrier. It is a modern tensile system made from multi-strand stainless steel cables arranged in a diamond pattern and tensioned between posts, frames or edge cables. When designed correctly, it behaves like an almost invisible safety net: strong enough to resist falls, impact and wind, yet open enough to preserve views, daylight and airflow.

You now see stainless steel wire rope mesh fences in airports, zoos, stadiums, bridges, hotels and high-end residential projects because they combine security, durability and architectural transparency in one system.

Secret 1 – The “invisible fence” look can hide dangerously weak performance

A stainless steel wire rope mesh fence can look light and elegant in photos but feel soft and unsafe on site if cable strength, frame stiffness and pretension are not matched. Judging only by appearance is the fastest way to end up with a fence that passes design renders but fails real inspections.

1. What Is Stainless Steel Wire Rope Mesh Fence?

Stainless steel wire rope mesh fence (also called stainless steel rope mesh fence, inox rope fence or zoo rope mesh) is made from multi-strand stainless steel wire rope, typically in 7×7 or 7×19 constructions. Cables are woven or joined with stainless steel ferrules to create diamond-shaped openings.

2. Structural behaviour of stainless steel wire rope mesh fence

Once the mesh is fixed to a rigid perimeter and correctly tensioned, the stainless steel wire rope mesh fence works primarily in tension rather than bending:

• Horizontal and impact loads are distributed across many cables and nodes instead of concentrating on a single bar.
• These forces are then carried back into the main structure through posts, edge beams or boundary cables.
• In practice, the fence behaves as a continuous tensile membrane, not a traditional rigid bar or welded panel.

Typical design ranges include:

• Wire rope diameter: approx. 1.2–4.0 mm
• Mesh aperture (short diagonal W): from about 20 × 20 mm up to 250 × 400 mm
• Angle degrees: 60° as the standard diamond angle, 90° available for square layouts
• Wire rope constructions: 7×7 and 7×19
• Materials: AISI 304 / 304L / 316 / 316L

Secret 2 – Mixing grades inside one stainless steel wire rope mesh fence quietly plants rust

A common cost-cutting trick is to use 316 cable but switch to cheaper 304 ferrules, clips or fittings. On the drawings, the system still appears as “stainless steel”, but in real outdoor exposure the lower-grade components start to corrode first, creating brown streaks exactly where clients see them most.

To avoid this hidden weakness, always confirm that all critical components – cable, ferrules, clips, tensioners and main fittings – are specified in the same, correct stainless steel grade for the project environment.

2. Material Grades, Corrosion And Real Exposure

Most stainless steel wire rope mesh fences use:

* AISI 304 / 304L – for dry, clean interiors with low chloride and pollution.
* AISI 316 / 316L – for exterior, coastal, poolside, zoo and industrial sites with salt, chlorides or chemicals.

A serious supplier will always ask:

* Is the project interior, semi-exposed or fully exterior?
* Distance to sea, pools, cooling towers or highways?
* What cleaning agents, de-icing salts or chemicals will be used?
* What service life and maintenance interval do you expect?

Secret 3 – Spaces that “look indoor” can attack your fence like harsh exterior

Car parks, seafront atria, airport concourses and pool halls **appear** interior but behave like aggressive exterior environments: moist air, chlorides and condensation. Using 304 stainless steel wire rope mesh fence here to “save cost” can create tea staining and pitting years earlier than the client expects.

3. Structural Behaviour: Why The Frame And Angle Degrees Matter

A stainless steel wire rope mesh fence behaves as a tensioned membrane:

* When loaded, diamond cells deform slightly and cables go into tension.
* Loads are shared across many diagonals and ferrules.
* Angle degrees (usually 60° standard or 90° square) affect stiffness and deflection.
* The frame, posts and anchor plates must be stiff enough to resist the mesh forces.

Secret 4 – A strong cable on a weak frame still fails the test

Many projects specify a very strong mesh (for example 3.2 mm 7×19 cable) but mount it on thin posts or flexible edge beams. During testing, the mesh does not break—but the handrail moves too much and fails deflection limits. Inspectors do not care that “the cable is strong” if the **whole fence system** is too flexible.

Secret 5 – Wrong angle degrees can make your fence softer than you think

Most stainless steel wire rope mesh fences are designed with **60° diamonds** as standard. If someone changes to 90° (square) layout without recalculating, stiffness and load paths change. The fence can deflect far more than expected under the same load, even though wire diameter and aperture look identical on paper.

4. Stainless Steel Wire Rope Mesh Fence Specifications

Below are typical specification tables in the format many engineers and buyers request. Values are indicative and should be confirmed against local codes and structural design. Angle degrees use **60°** as the standard mesh geometry unless otherwise noted.

4.1 Table 1 – Stainless Steel Wire Rope Mesh Fence For Residential & Commercial Perimeters

Secret 6 – A “too open” fence can feel unsafe even when it passes the code

Two stainless steel wire rope mesh fences can both meet the same regulation, but if one is extremely open (high light transmittance), users with a fear of heights may feel exposed and complain. Comfort and perception matter: too much transparency can force expensive retrofits with extra rails or panels.

4.2 Table 2 – Stainless Steel Wire Rope Mesh Fence For Zoos And Animal Enclosures

Secret 7 – Choosing mesh only by aperture ignores bite, claw and jump forces

A 50 × 50 mm stainless steel wire rope mesh fence might keep animals in, but will it survive years of chewing, clawing and jumping? If you don’t match cable diameter and structure to species behaviour, “perfect” zoo fences can deform or fail in high-stress areas.

4.3 Table 3 – Stainless Steel Wire Rope Mesh Fence For Green Walls & Facade Safety

Secret 8 – Too much transparency can burn plants and overheat façades

Pushing light transmittance as high as possible looks great in renderings, but in reality it can increase glare through glazing and create hot spots on south-facing façades. Some plants will burn or die in those zones. A slightly denser stainless steel wire rope mesh fence often performs better over the building’s life.

4.4 Table 4 – Stainless Steel Wire Rope Mesh Fence For Bridges & High-Security Zones

Secret 9 – Public-area load rules are much tougher than private projects

Bridges, stadiums and transport hubs must satisfy strict line loads, crowd loads and deflection limits. Copying a “nice residential” stainless steel wire rope mesh fence spec into these sites can mean failed tests, redesign under time pressure and painful delay claims.

5. Advantages Of Stainless Steel Wire Rope Mesh Fence

Key benefits:

* Soft but firm – absorbs impact yet remains safe.
* High flexibility – can follow curves, slopes and complex geometry.
* Excellent visibility – minimal obstruction of views and CCTV.
* Environmentally friendly – no toxic coatings, fully recyclable stainless steel.
* Premium appearance – modern, minimalist, “high-tech” look.
* Strong corrosion resistance – especially in 316 / 316L grades.

Secret 10 – “Maintenance free” is a marketing phrase, not engineering reality

Even with 316 stainless steel, a wire rope mesh fence still needs periodic inspection of anchors, clamps, tensioners and posts. Calling it “maintenance free” encourages owners to ignore small problems until they turn into major failures during storms or crowd events.

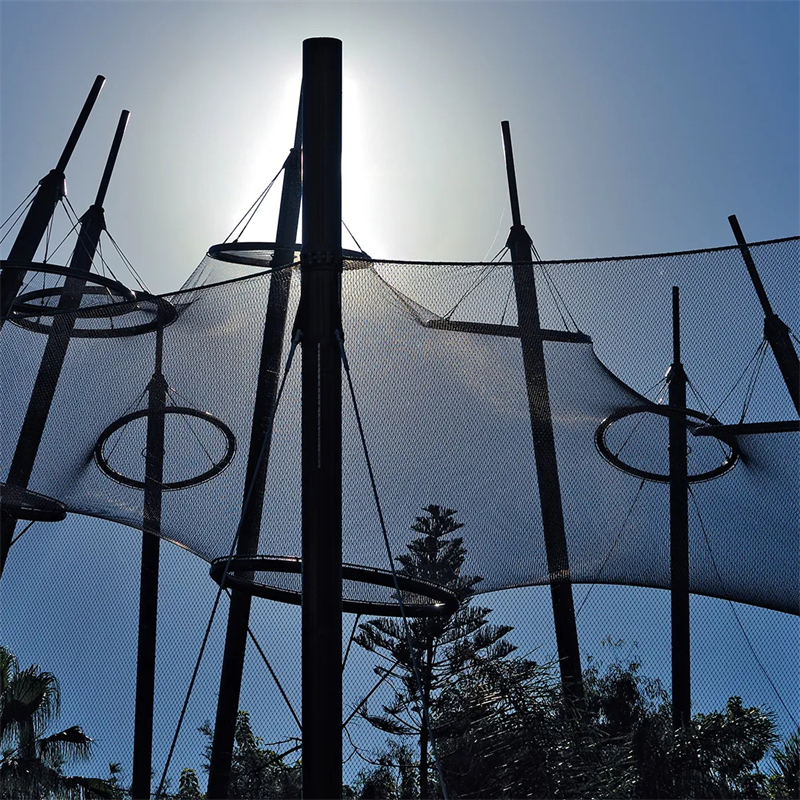

6. Application Areas Of Stainless Steel Wire Rope Mesh Fence

Stainless steel wire rope mesh fence can be tailored for many uses:

* Residential and commercial perimeters

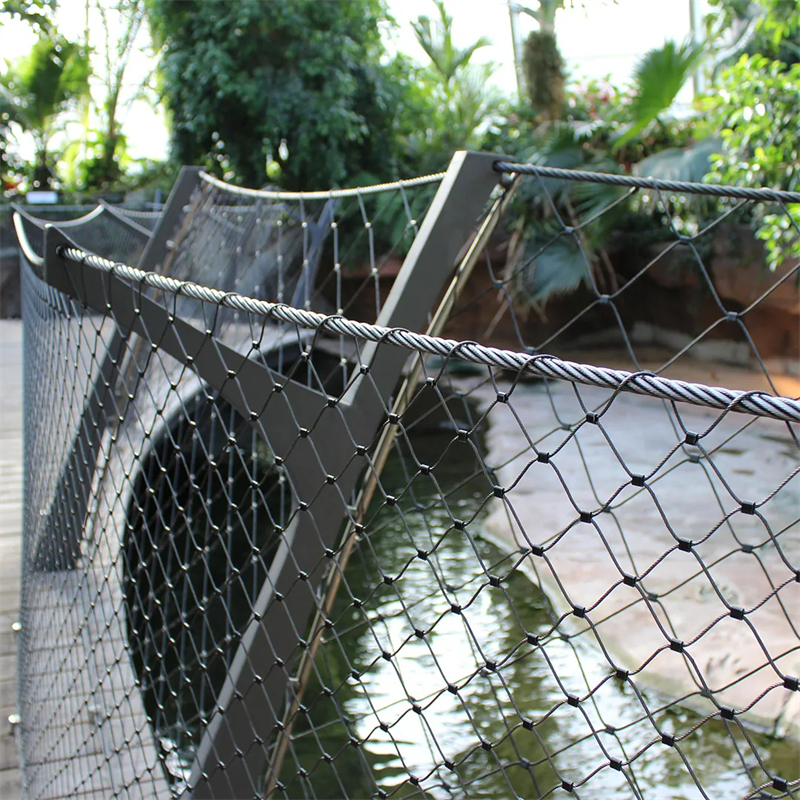

* Pedestrian bridges and overpasses

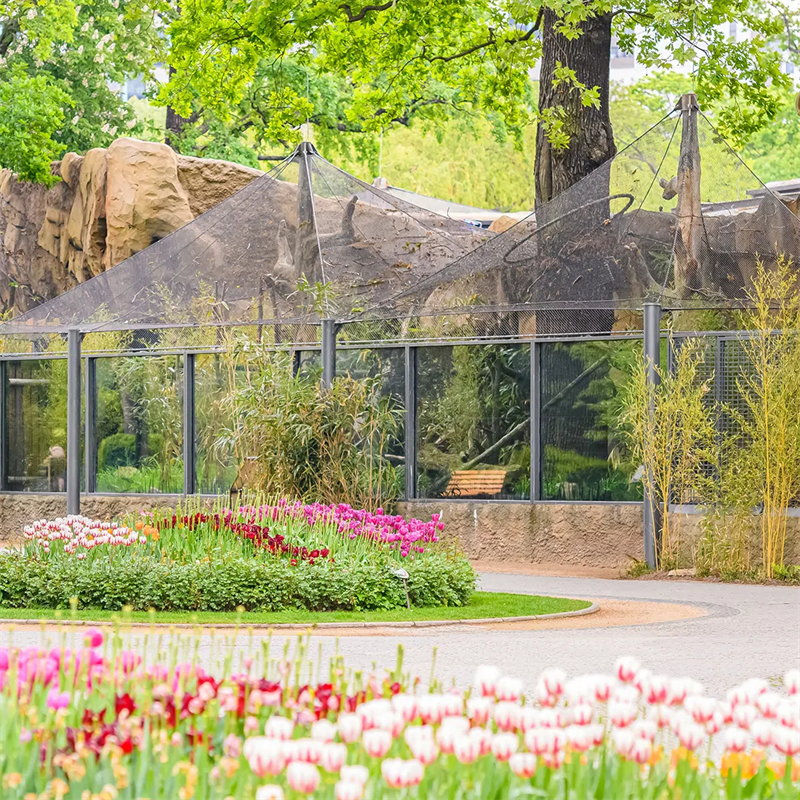

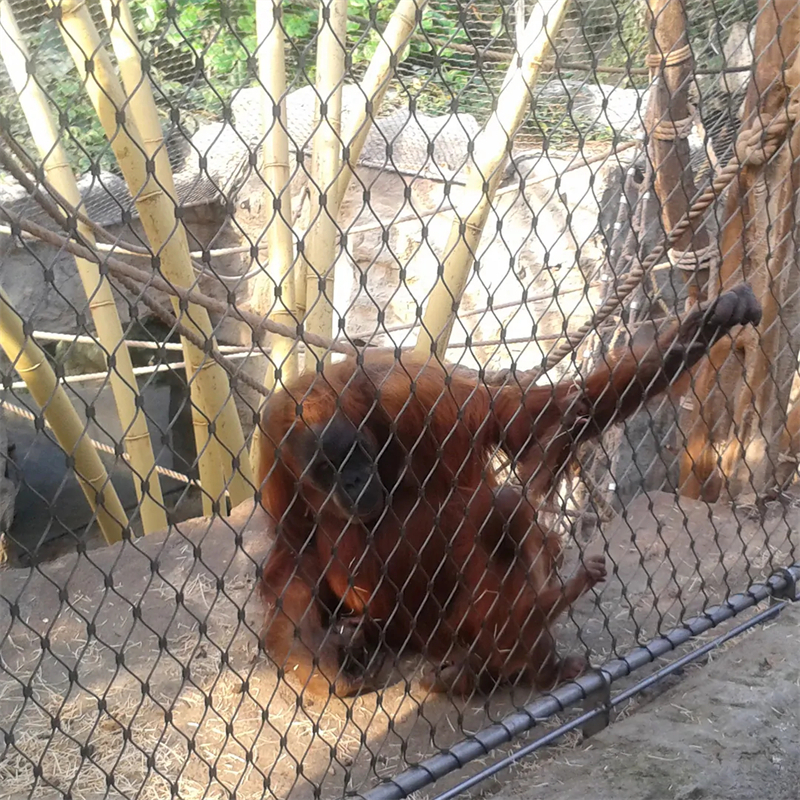

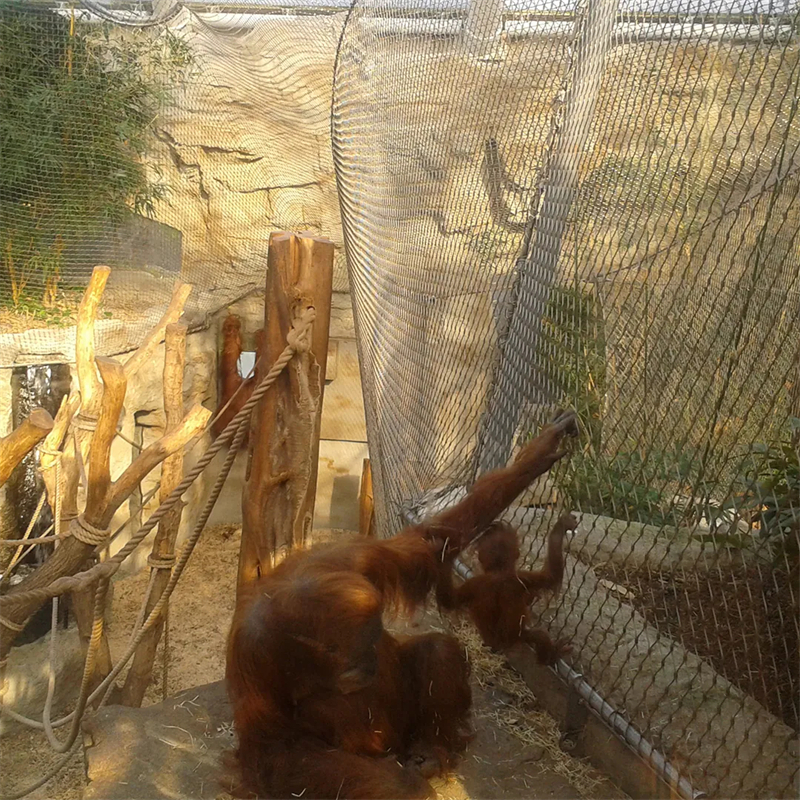

* Zoo and safari park enclosures

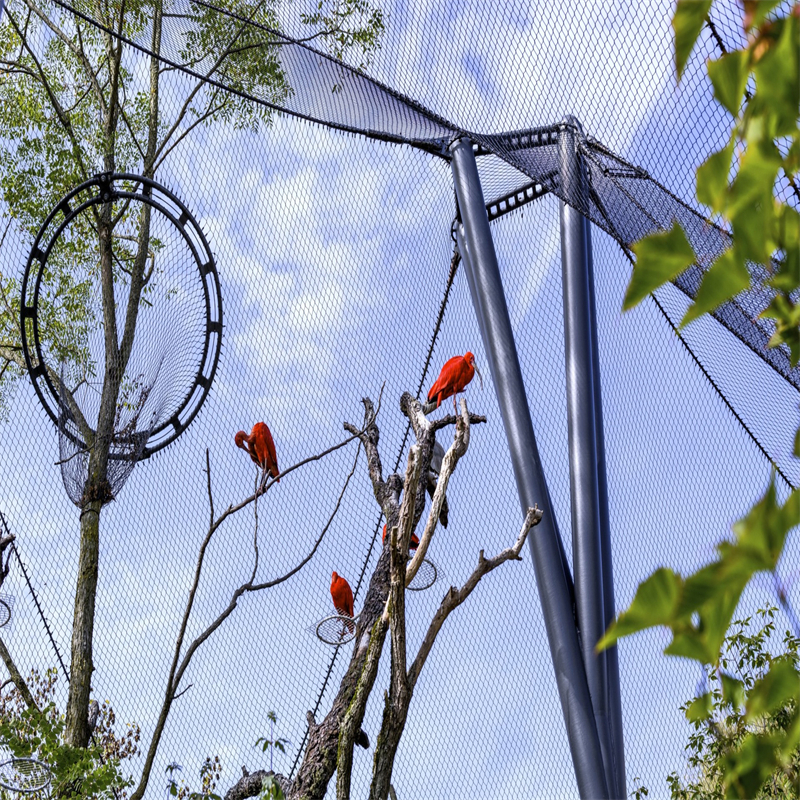

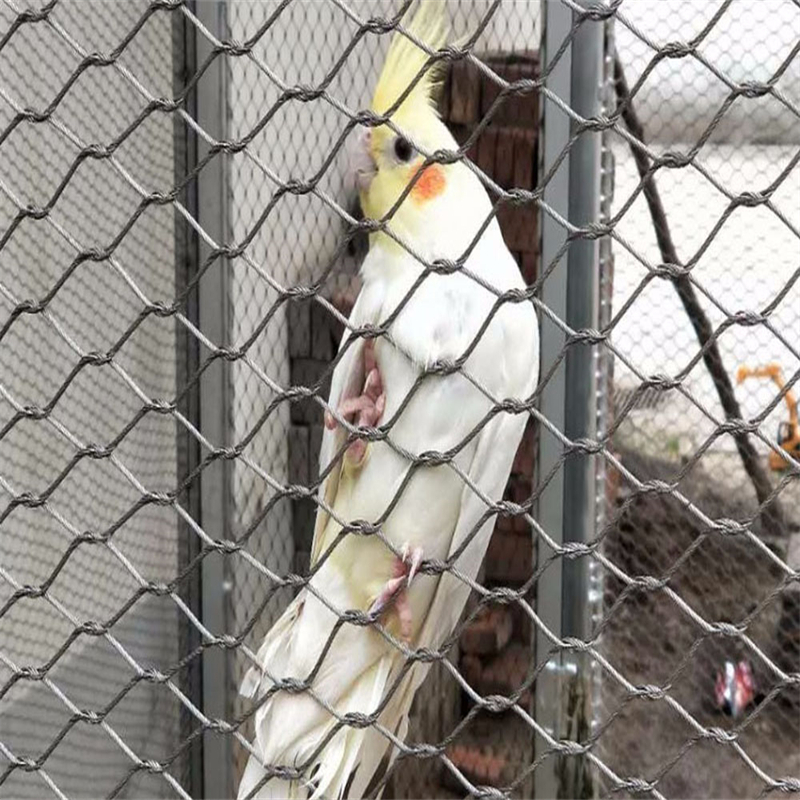

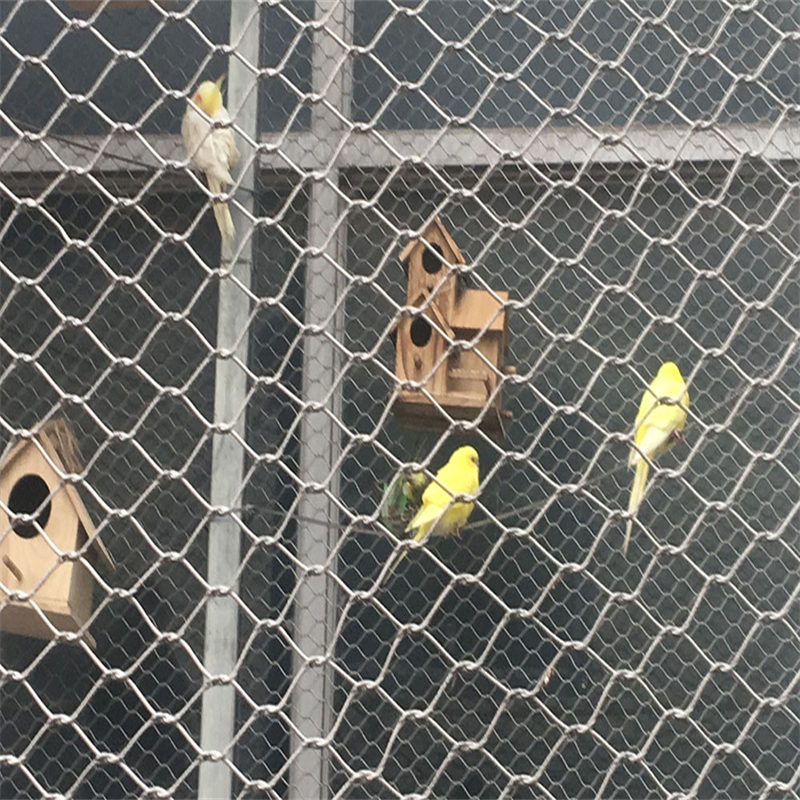

* Aviaries and bird exhibits
* Stadium fall protection and anti-throw screens
* Façade safety and green wall support
* Balcony and stair balustrades
* Security zones where climbing must be discouraged

Secret 11 – Ignoring climbability can turn your fence into a ladder

Some combinations of mesh aperture, angle degrees and frame details are easy for children or intruders to climb. Simply meeting strength and height rules is not enough—climbability must be considered in the design of a stainless steel wire rope mesh fence.

7. Installation, Tensioning And Maintenance

Good performance depends on good installation:

* Frames, posts and edge beams must be stiff and accurately aligned.
* Boundary cables and turnbuckles must be correctly sized and positioned.
* Mesh panels are fixed on one edge, then tensioned gradually from the opposite edge.
* Diamonds should stay regular; twisted or distorted cells indicate uneven load.
* All cut cable ends must be properly finished to avoid injury.

Maintenance is simple but essential:

* Rinse with clean water; use mild neutral detergents for stubborn dirt.
* Avoid steel wool or carbon steel brushes that scratch the passive layer.
* In coastal or industrial zones, clean more frequently to remove chlorides.
* Periodically re-check tensions and re-tighten where necessary.

Secret 12 – Poor tensioning can ruin a perfect design in a single day

Even the best stainless steel wire rope mesh fence design can feel unsafe if it is not tensioned correctly on site. Under-tensioned panels sag; over-tensioned ones overload anchors and posts. Always insist on clear installation guidelines and trained installers.

8. Trade Details: HS Code, Price, MOQ, Lead Time, Packing, Guarantee

Typical commercial parameters for stainless steel wire rope mesh fence:

* HS code: usually under stainless steel wire cloth / netting categories (exact code to be confirmed with your customs broker).
* Price: normally quoted per m² or per panel, depending on wire diameter, mesh aperture, angle degrees and material grade.
* MOQ: often 50–100 m² per specification, with smaller trial orders possible at higher unit cost.
* Production time: typically 10–25 days after deposit and drawing approval.
* Payment terms: T/T 30% deposit, 70% before shipment; L/C at sight for large projects.
* Packing: panels or rolls wrapped in plastic film, protected by edge boards, packed in cartons or wooden cases with clear labels.
* Guarantee: many suppliers offer 5–10 years against corrosion and manufacturing defects in normal environments when the correct grade is specified.

Secret 13 – One wrong HS code or weak packing can wipe out your profit

If your stainless steel wire rope mesh fence is declared under the wrong code or poorly packed, you risk customs delays, fines and damaged goods. The cost of re-fabrication and emergency airfreight can easily exceed your entire margin on the project.

9. How To Choose A Reliable Stainless Steel Wire Rope Mesh Fence Supplier

Check more than just the quote:

* Do they ask about environment, loads, mesh angle and local codes?
* Can they provide drawings, samples and reference projects?
* Do they offer both ferruled and knotted structures with clear specs?
* Can they support on-site installation guidance and tensioning advice?
* Are mill certificates, QC records and test reports available when needed?

Secret 14 – Treating stainless steel wire rope mesh fence as a commodity puts all risk on you

If you buy only by lowest price, without demanding technical support and documentation, all risk moves to your side: corrosion complaints, failed tests, redesign costs and even safety claims will target the buyer and installer, not the cheapest factory.

Secret 15 – Wind load on large fences is often underestimated

Wire rope mesh looks open, but large surfaces on high buildings or bridges still catch significant wind. If wind load is not properly checked, supports and foundations may be under-designed even though the mesh itself is strong enough.

Secret 16 – Accessories can quietly become the weakest link

Using low-grade clamps, turnbuckles or boundary cables to “save money” can create hidden weak points. A stainless steel wire rope mesh fence is only as strong as its poorest-quality accessory.

Secret 17 – Skipping mock-ups means discovering problems when it’s too late

A small on-site mock-up or test panel can reveal issues with angle degrees, visibility, climbability and user comfort before full production. Skipping this step pushes all surprises into the most expensive moment: after everything is installed.

10. Conclusion: Turn Stainless Steel Wire Rope Mesh Fence Into A Long-Term Asset

Stainless steel wire rope mesh fence is a powerful system: it can deliver almost invisible safety, excellent durability and premium aesthetics in one solution. But those advantages are not automatic. They depend on correct material grade, mesh aperture, angle degrees, structural support, installation quality and documentation.

By understanding and applying the **17 secrets** scattered through this article—especially around grade selection, frame stiffness, mesh angle, animal and human behaviour, public load rules and trade handling—you can turn stainless steel wire rope mesh fence into a reliable, long-term asset for your façades, perimeters, bridges and enclosures.

Ignore these hidden details, and the same stainless steel wire rope mesh fence that looks beautiful in renderings can quickly become the source of corrosion stains, failed inspections, redesign bills, schedule penalties and even serious safety claims.
