Wholesale stainless steel ferrule mesh net, also known as stainless steel cable ferrule type mesh, SS ferrule mesh or X-TEND mesh, is one of POLYMETAL’s core architectural wire rope systems for safety and decoration. The mesh is made from stainless steel cables and stainless steel ferrules; ferrules are threaded onto the cables and then pressed with special molds to form strong, regular diamond openings. This production method creates a stunning visual effect combined with excellent strength, flexibility and long service life. POLYMETAL can manufacture a wide range of ferrule mesh types in different cable diameters and mesh openings to meet project-specific requirements for balustrades, facades, green walls, zoo enclosures and safety nets.
Key Features of POLYMETAL Wholesale Stainless Steel Ferrule Mesh Net
- High-tensile stainless steel cables combined with pressed ferrules create a flexible yet load-bearing mesh structure with a standard 60° diamond angle.
- Custom-manufactured panels in width and length to suit each fence, railing, green wall or facade bay, including diagonal and irregular shapes.
- Compact, lightweight construction that reduces steelwork demand while delivering high safety performance.
- Excellent transparency and airflow, ideal for modern architecture where open views and natural ventilation are important.
- Durable in outdoor environments thanks to stainless steel 316 and optional surface treatments for additional protection and color.
- Compatible with a full range of installation accessories supplied by POLYMETAL for fast and secure on-site assembly.
Installation Accessories (Supplied by POLYMETAL)
- Self-tapping screws and machine screws for steel, concrete and timber substrates.
- Wall anchors, chemical anchors and expansion bolts for structural fixing.
- Aluminum or stainless steel tracks and flat bars for continuous edge support.
- Bolts, washers, nuts and washers for frame assembly and tension cable fixing.
- Turnbuckles, eye bolts, shackles and special clamps for fine tension adjustment.
Weave and Mesh Types Wholesale Stainless Steel Ferrule Mesh Net
- Plain weave wire rope mesh for standard architectural applications.
- Twill weave and dutch weave patterns for special visual effects.
- Plain dutch and twill dutch weave for tighter screening or shading requirements.

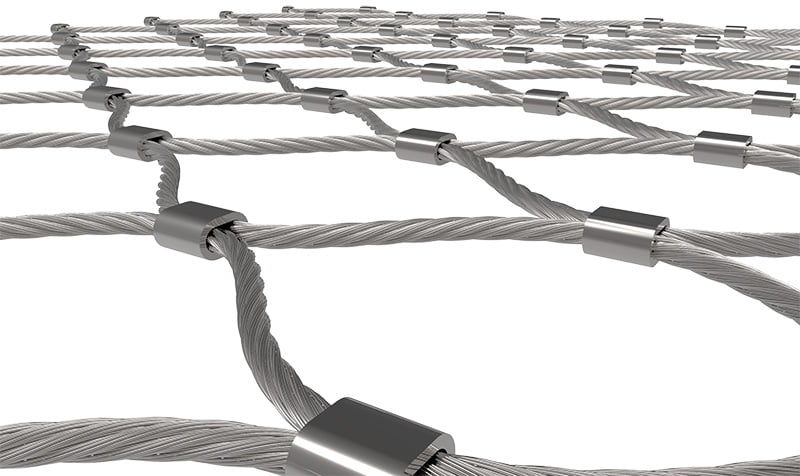

- Ferrule rope diamond mesh (X-TEND type) as the main form for wholesale stainless steel ferrule mesh net.
- Unique custom woven methods available for signature projects and artistic installations.
Surface Treatment Options Wholesale Stainless Steel Ferrule Mesh Net
- PVDF coating for enhanced weather resistance and easy cleaning.
- PVD coloring (black, gold, bronze, champagne and other tones) for premium decorative finishes.
- Spraying / powder-coating on fittings and frames to match architectural color schemes.
Product Characters
- High-quality stainless steel cables and pressed ferrules are combined to form a flexible, load-bearing mesh, typically arranged at a 60° mesh angle.
- Wholesale stainless steel ferrule mesh net panels are made-to-measure for each project, avoiding waste and simplifying installation.
- Panels can be rectangular, diagonal or irregular, allowing the mesh to follow complex geometries, sloping roofs and curved structures.
- Mesh can be supplied in natural stainless steel 316, blackened finish or galvanized appearance according to design needs.

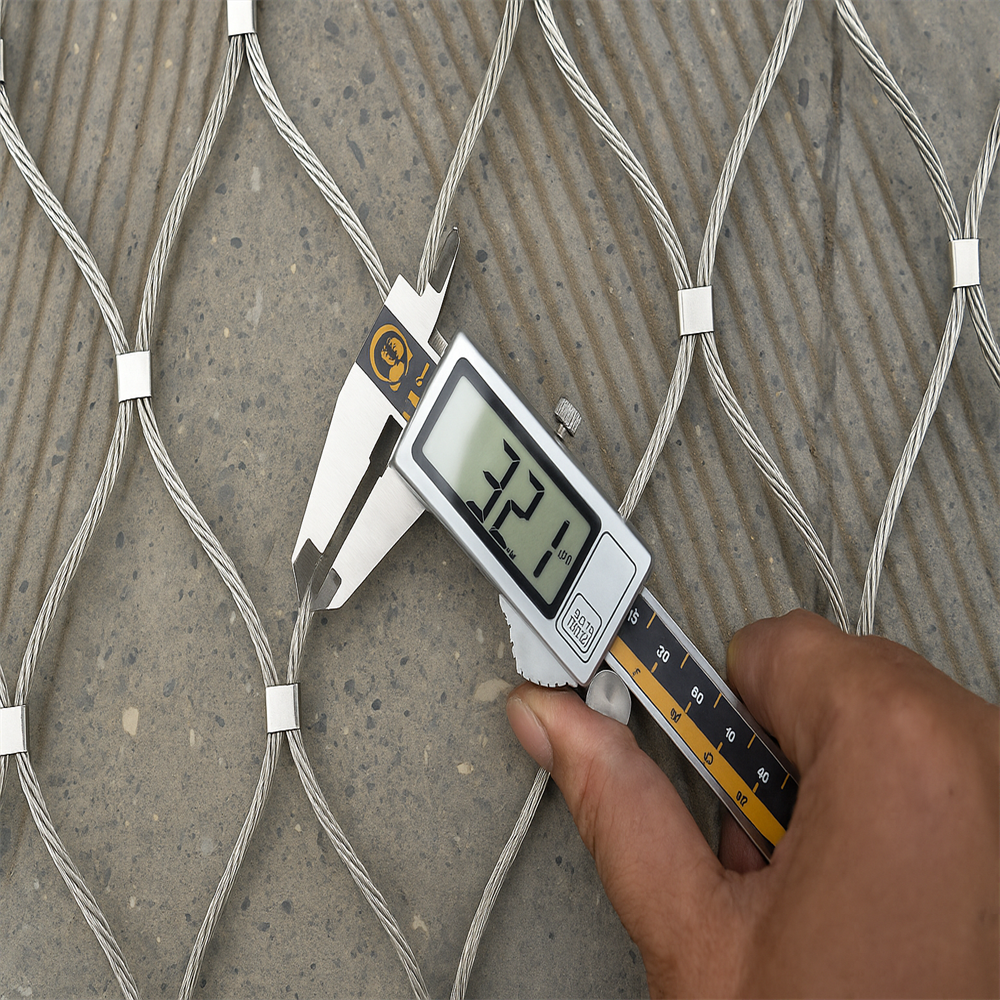

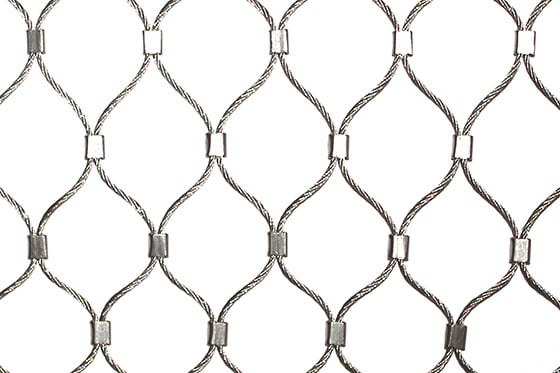

For measuring purposes the ferruled mesh is assumed to be stretched to create a 60° angle at the top and bottom of the diamond. OW = Opening Width, OH = Opening Height, d = Cable Diameter, θ = 60° Angle.
Standard Specification Codes – Ferrule Rope Diamond Mesh
| Opening (mm) OW × OH | Specification Codes / Weight per m² by Cable Diameter (d) |
| 1 mm | 1.5 mm | 2 mm | 3 mm | 4 mm |
| Code | Weight | Code | Weight | Code | Weight | Code | Weight | Code | Weight |
| 25 × 43 | 1025 | 0.64 kg | 1525 | 1.59 kg | | | | | | |
| 30 × 52 | 1030 | 0.53 kg | 1530 | 1.30 kg | | | | | | |
| 35 × 61 | 1035 | 0.42 kg | 1535 | 1.01 kg | 2035 | 1.74 kg | | | | |
| 40 × 69 | 1040 | 0.36 kg | 1540 | 0.88 kg | 2040 | 1.51 kg | | | | |
| 50 × 90 | 1050 | 0.27 kg | 1550 | 0.65 kg | 2050 | 1.12 kg | 3050 | 2.82 kg | 4050 | 5.09 kg |
| 60 × 104 | 1060 | 0.22 kg | 1560 | 0.52 kg | 2060 | 0.90 kg | 3060 | 2.24 kg | 4060 | 4.04 kg |
| 70 × 121 | 1070 | 0.18 kg | 1570 | 0.42 kg | 2070 | 0.73 kg | 3070 | 1.80 kg | 4070 | 3.25 kg |
| 80 × 139 | 1080 | 0.15 kg | 1580 | 0.36 kg | 2080 | 0.62 kg | 3080 | 1.51 kg | 4080 | 2.72 kg |
| 100 × 173 | 10100 | 0.12 kg | 15100 | 0.28 kg | 20100 | 0.49 kg | 30100 | 1.19 kg | 40100 | 2.14 kg |
| 120 × 242 | 10120 | 0.10 kg | 15120 | 0.23 kg | 20120 | 0.41 kg | 30120 | 0.97 kg | 40120 | 1.74 kg |
| 160 × 277 | 10160 | 0.07 kg | 15160 | 0.17 kg | 20160 | 0.30 kg | 30160 | 0.70 kg | 40160 | 1.26 kg |
| 180 × 312 | 10180 | 0.06 kg | 15180 | 0.15 kg | 20180 | 0.26 kg | 30180 | 0.60 kg | 40180 | 1.08 kg |
| 200 × 346 | 10200 | 0.05 kg | 15200 | 0.12 kg | 20200 | 0.22 kg | 30200 | 0.52 kg | 40200 | 0.92 kg |
Edging Options Wholesale Stainless Steel Ferrule Mesh Net
Rope diamond ferruled mesh is delivered as standard with spare ferrules, lashing wire and a specialist fixing tool. It can optionally be edged to order by POLYMETAL, ready for immediate installation.

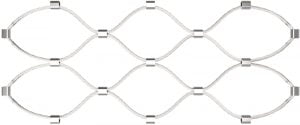

Loose Ferrules

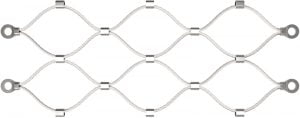

Loose edging ferrules enable easy attachment of the mesh to a frame or tension cable. | Eyelets
The ferruled mesh can be edged with a combination of loose ferrules and eyelets for fixing to solid surfaces and frames. |
Orientation Options Wholesale Stainless Steel Ferrule Mesh Net

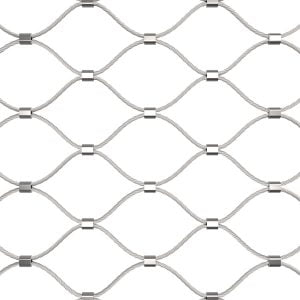

Horizontal

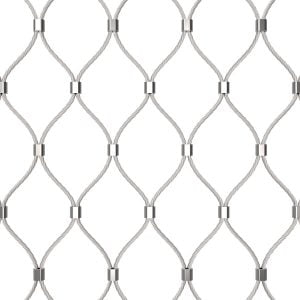

 | Vertical
|
Rope diamond ferruled wire mesh can be installed horizontally or vertically depending on the visual result and structural requirements. Its flexibility means it can be stretched, bunched and twisted to fit the underlying structure and create interesting effects without compromising strength or security.
Applications of Wholesale Stainless Steel Mesh Net from POLYMETAL
The stainless steel cable mesh, especially the ferrule stainless steel mesh net that POLYMETAL supplies wholesale, is widely used for balustrades on bridges and staircases, large barrier fences, security infills and building facade trellis systems. As an emerging product in architectural decoration and protection, stainless steel rope mesh has brought a new, stylish element to modern building design and horticultural engineering and is increasingly appreciated by designers and clients worldwide.
 | | |

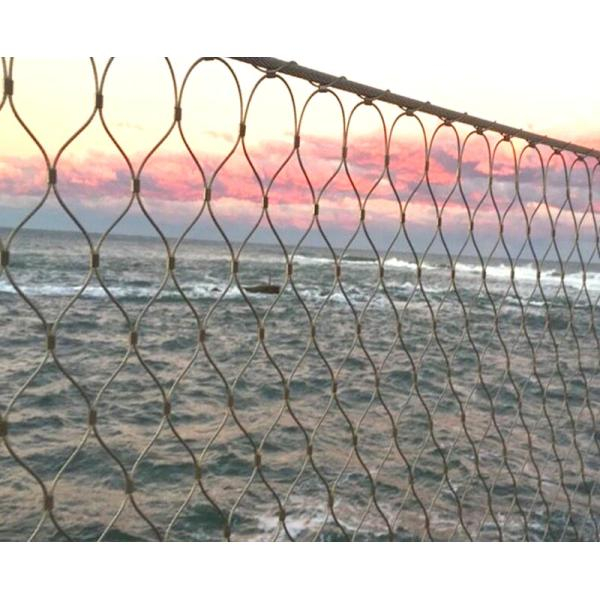

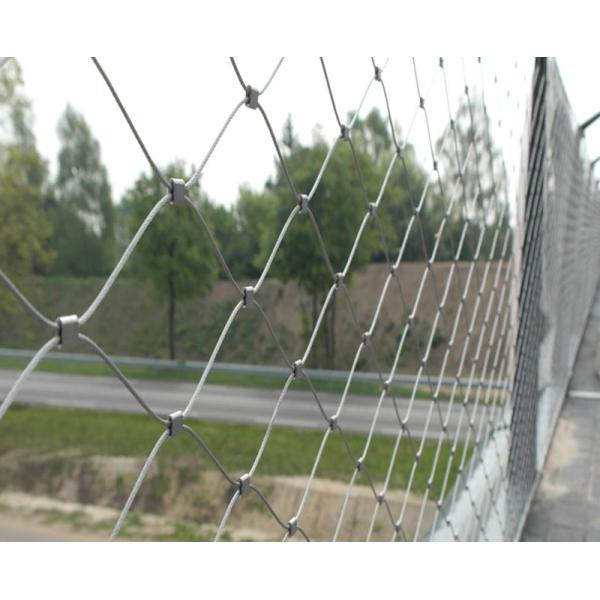

| Ferrule mesh handrail infills | Safety mesh for elevated platforms and walkways | Protection mesh for public areas and fall protection |
| | |
| Stainless steel cable mesh green wall | Ferrule mesh handrail infills for stairs and balconies | Ferrule mesh facade trellis and perimeter protection |
Why Choose POLYMETAL for Wholesale Stainless Steel Ferrule Mesh Net
- Specialized manufacturer and exporter of stainless steel ferrule mesh nets with stable quality control and full traceability.
- Large selection of standard specifications and full custom production service for special mesh sizes and panel shapes.
- Professional engineering support including 3D design assistance, shop drawings and installation guidance.
- Complete accessory packages supplied with each order to simplify on-site installation and save labor time.
- Reliable lead times and export packaging suitable for sea and air freight.

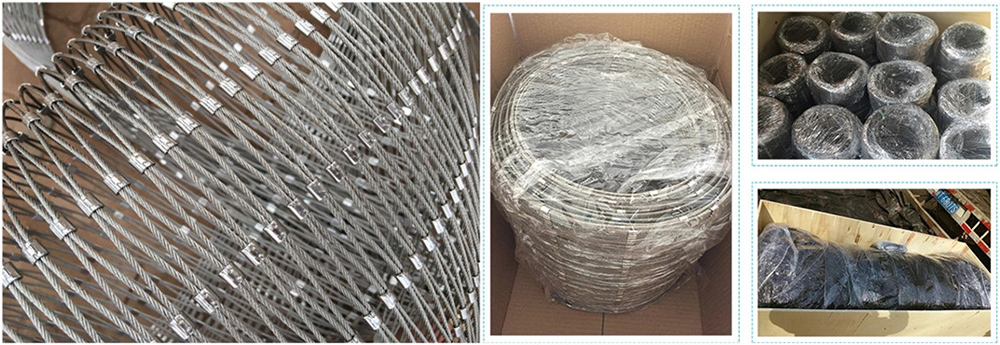

Packing and Shipping
