Stainless steel rope mesh for bridge railings is a modern safety and decoration system that combines strength, transparency and long service life. The bridge fence is made of stainless steel wire rope braided or ferrule-connected into diamond-shaped openings. The overall appearance is very beautiful and elegant, and in normal outdoor conditions the service life is generally more than 30 years.

Because the mesh is light, open and flexible, it does not block the view from the bridge. At the same time, it provides reliable protection for pedestrians, cyclists and vehicles, so it is widely used on pedestrian bridges, highway bridges, city overpasses and viewing platforms.

1. Material and Structure Stainless steel rope mesh for bridge railings

  • Material:

  • Rope structure:

    • Commonly 7×7 or 7×19 stainless steel wire rope

    • Smooth surface, high tensile strength, low elongation

  • Connection type:

    • Ferruled rope mesh: cables joined by stainless steel ferrules at each intersection

    • Braided / knotted rope mesh: cables woven and knotted without ferrules

  • Mesh shape:

    • Diamond (rhombus) openings, often with a 60° mesh angle

    • Mesh can be stretched and adapted to straight, curved or inclined railings

This structure gives stainless steel rope mesh excellent flexibility in installation and high strength in use.

2. Main Advantages for Bridge Railings

  • High safety performance
    Stainless steel rope mesh can withstand large impact forces and provide effective fall protection. It reduces the risk of people or objects falling from the bridge while staying light and elegant.

  • Long service life
    Made from corrosion-resistant stainless steel, the mesh can work outdoors for decades with only simple inspection and cleaning. It does not crack, peel or fade like many coated materials.

  • Beautiful and transparent
    The thin cables and diamond apertures create a almost “invisible” barrier. From a distance, the mesh is very light and does not block landscape views, river scenery or city skylines.

  • Lightweight and flexible
    The mesh weight is low compared with solid panels or bar railings. It reduces the load on the bridge structure and can easily follow curves and special shapes.

  • Low maintenance
    No painting is required, and there is no risk of coating aging. Normal rain often helps clean the surface; only occasional manual cleaning is needed in dusty or salty environments.

  • Environmentally friendly
    Stainless steel is recyclable and the open structure allows natural light, ventilation and, in some cases, climbing plants, which supports green and sustainable bridge design.

3. Typical Specification Range

(Values can be adjusted according to project and codes.)

  • Cable diameter: about 1.2 mm – 3.2 mm

  • Mesh aperture (diamond size): about 25 × 25 mm – 100 × 100 mm

    • Smaller apertures are used where anti-climb or child safety is important

    • Larger apertures are used where more transparency is desired

  • Mesh angle: standard 60° diamond layout, can be customized

  • Panel size: custom-made to fit each bridge span, railing bay or post spacing

Engineers can choose cable diameter and mesh aperture according to loading requirements, design style and safety regulations.

4. Installation on Stainless steel rope mesh for bridge railings

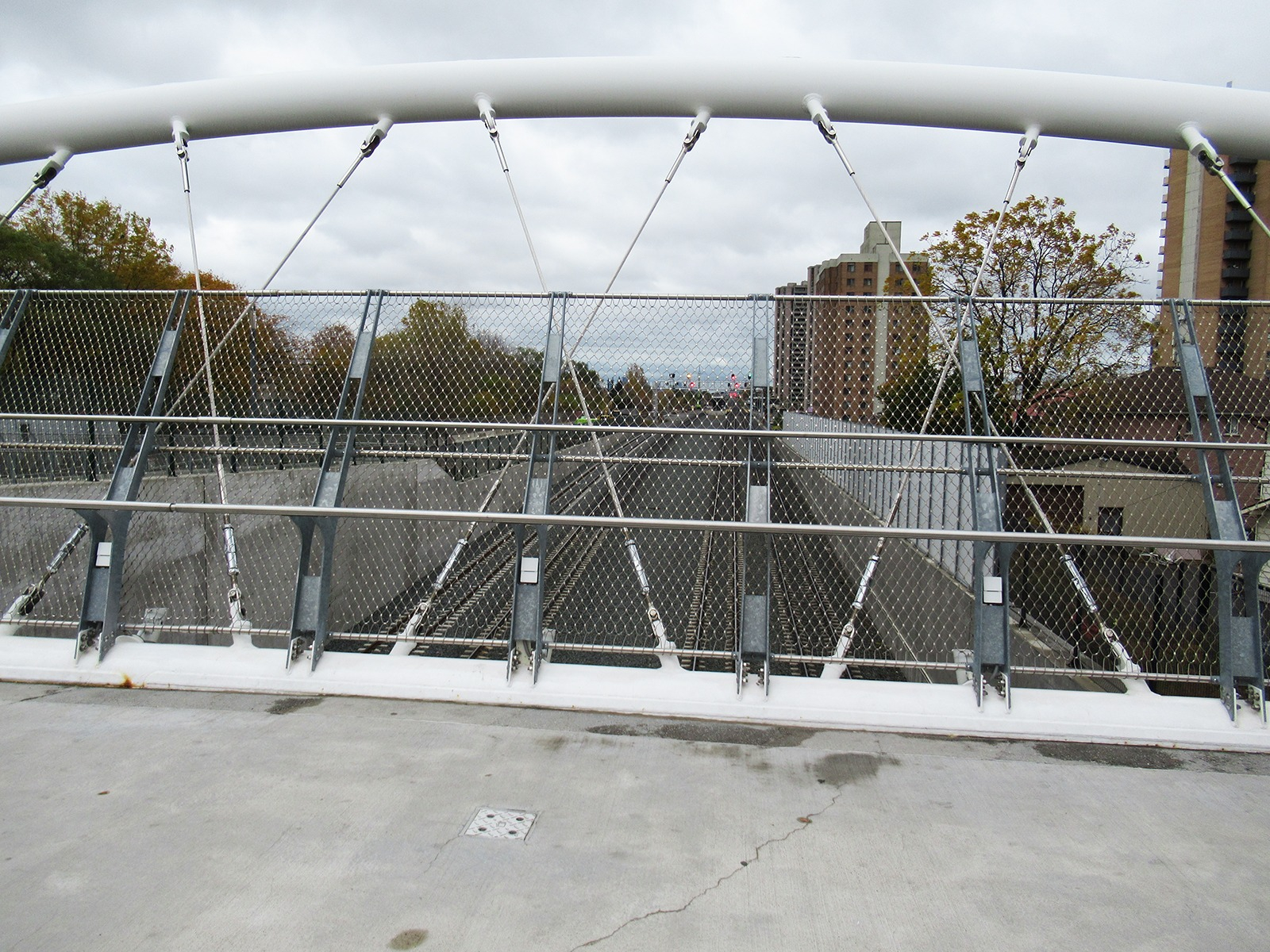

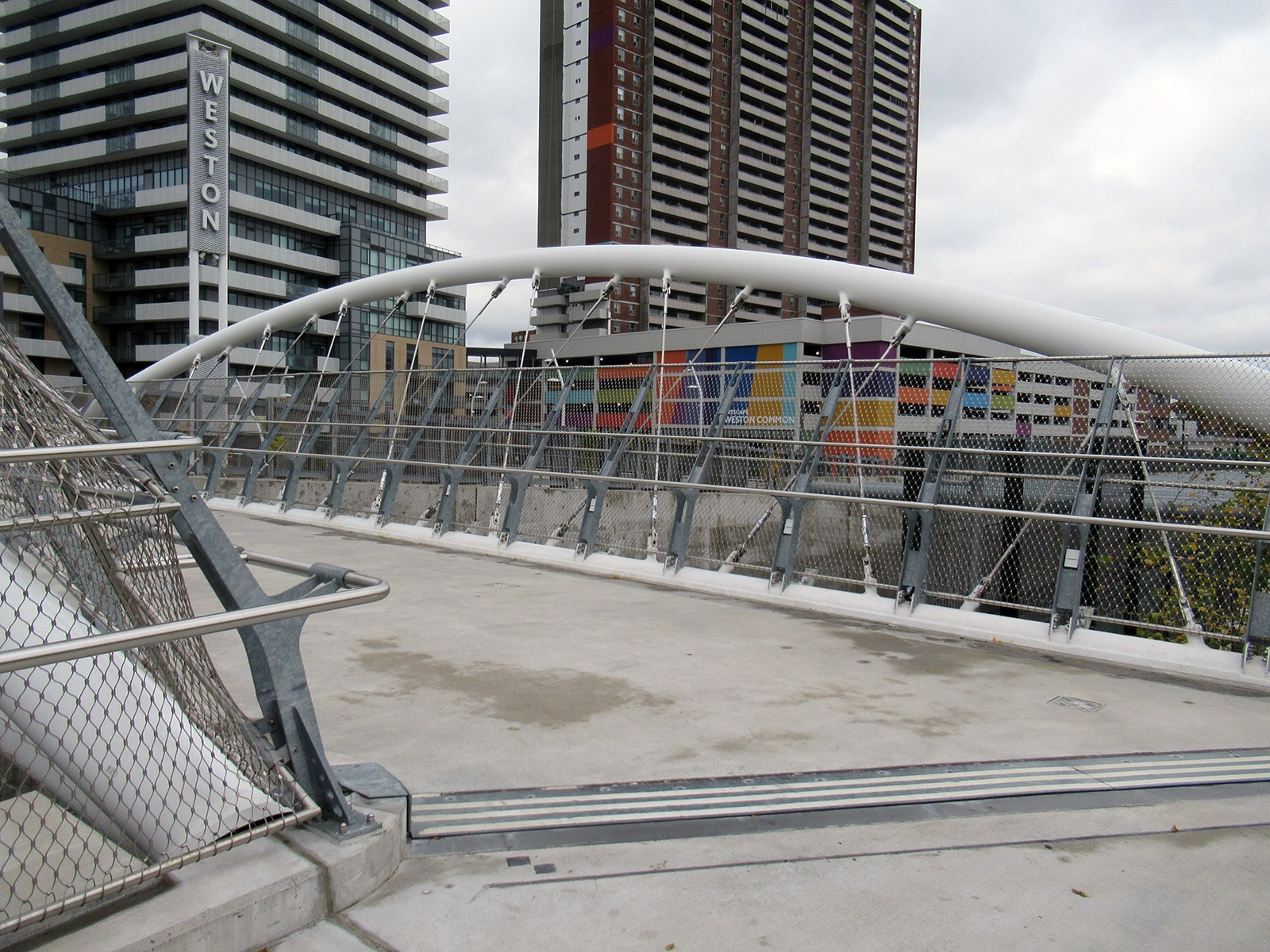

  • The stainless steel rope mesh is usually framed or tensioned between posts, handrails and lower rails.

  • Edge cables, frames or flat bars are used to clamp and fix the mesh.

  • The mesh is pre-fabricated in the factory according to onsite measurements, then installed and tensioned on site.

  • Proper tension ensures that the mesh remains flat, safe and visually neat.

Because of its flexibility, stainless steel rope mesh can be installed on straight railings, curved pedestrian bridges, spiral ramps and irregular structures.

5. Stainless steel rope mesh for bridge railings Applications

Stainless steel wire rope mesh for bridge railings can be used in many scenarios:

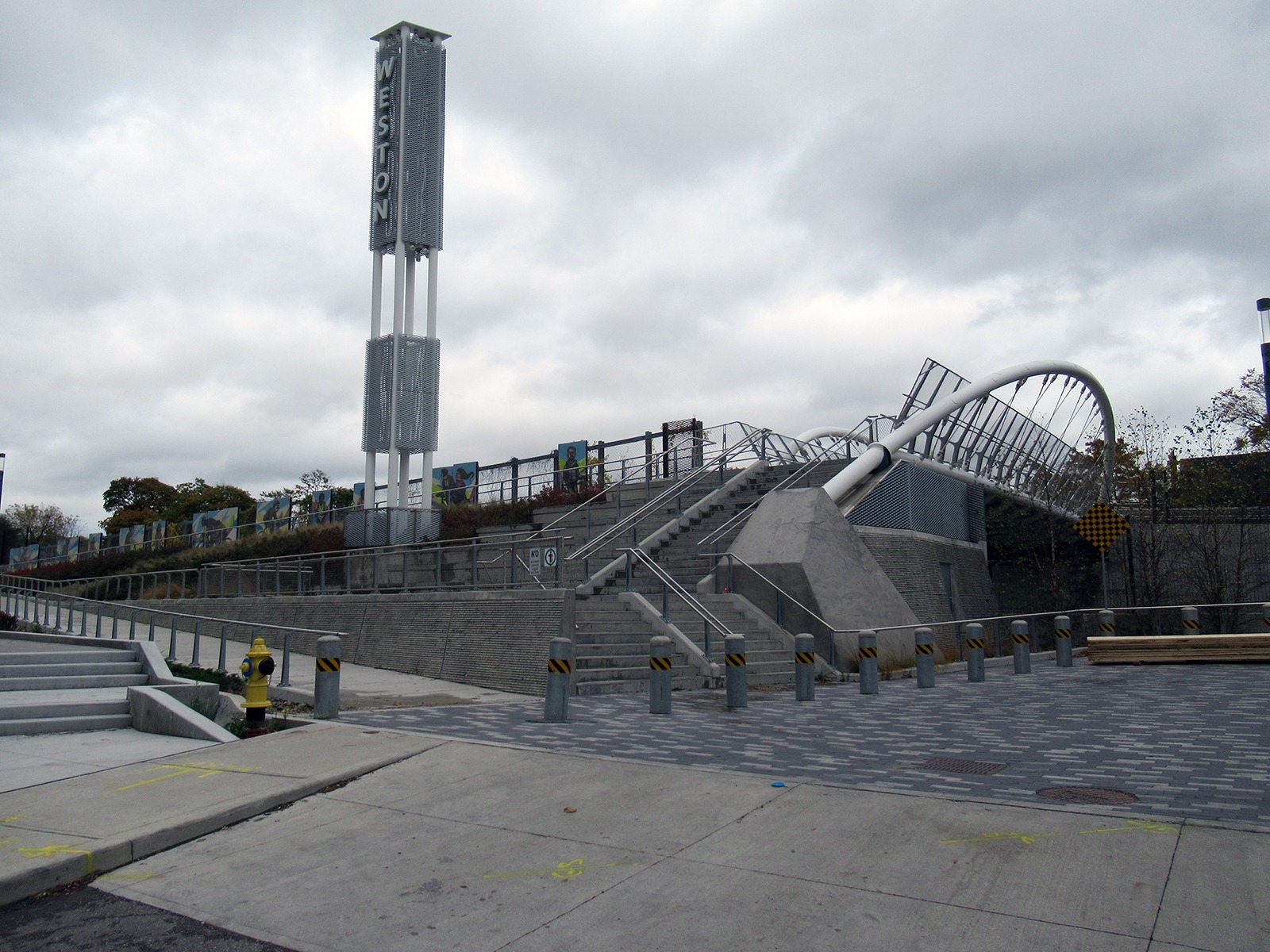

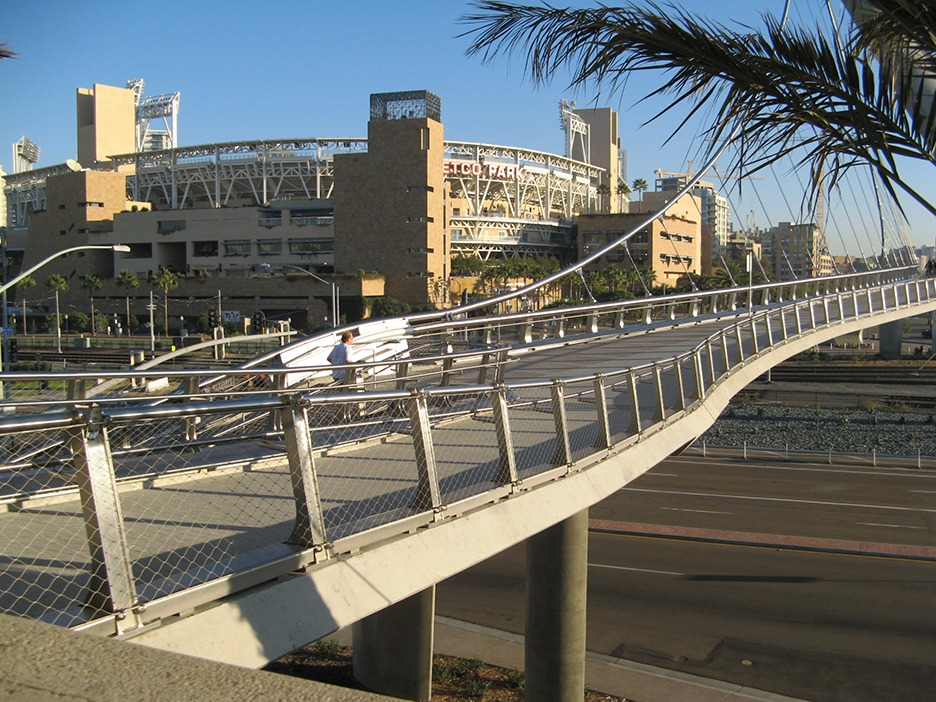

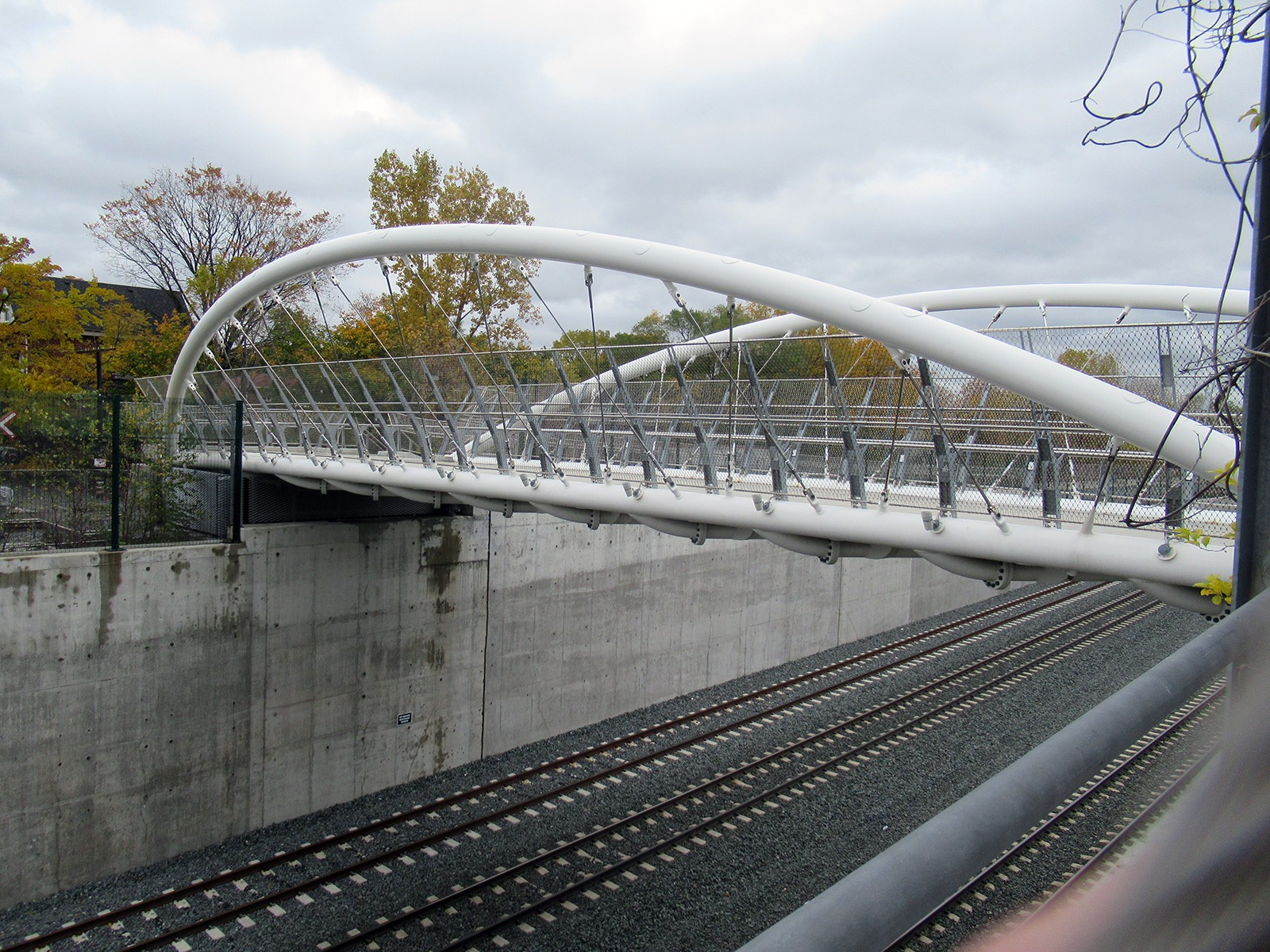

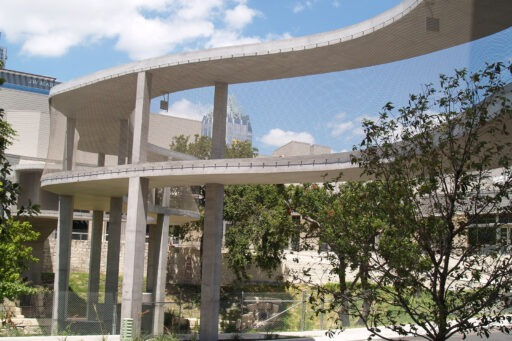

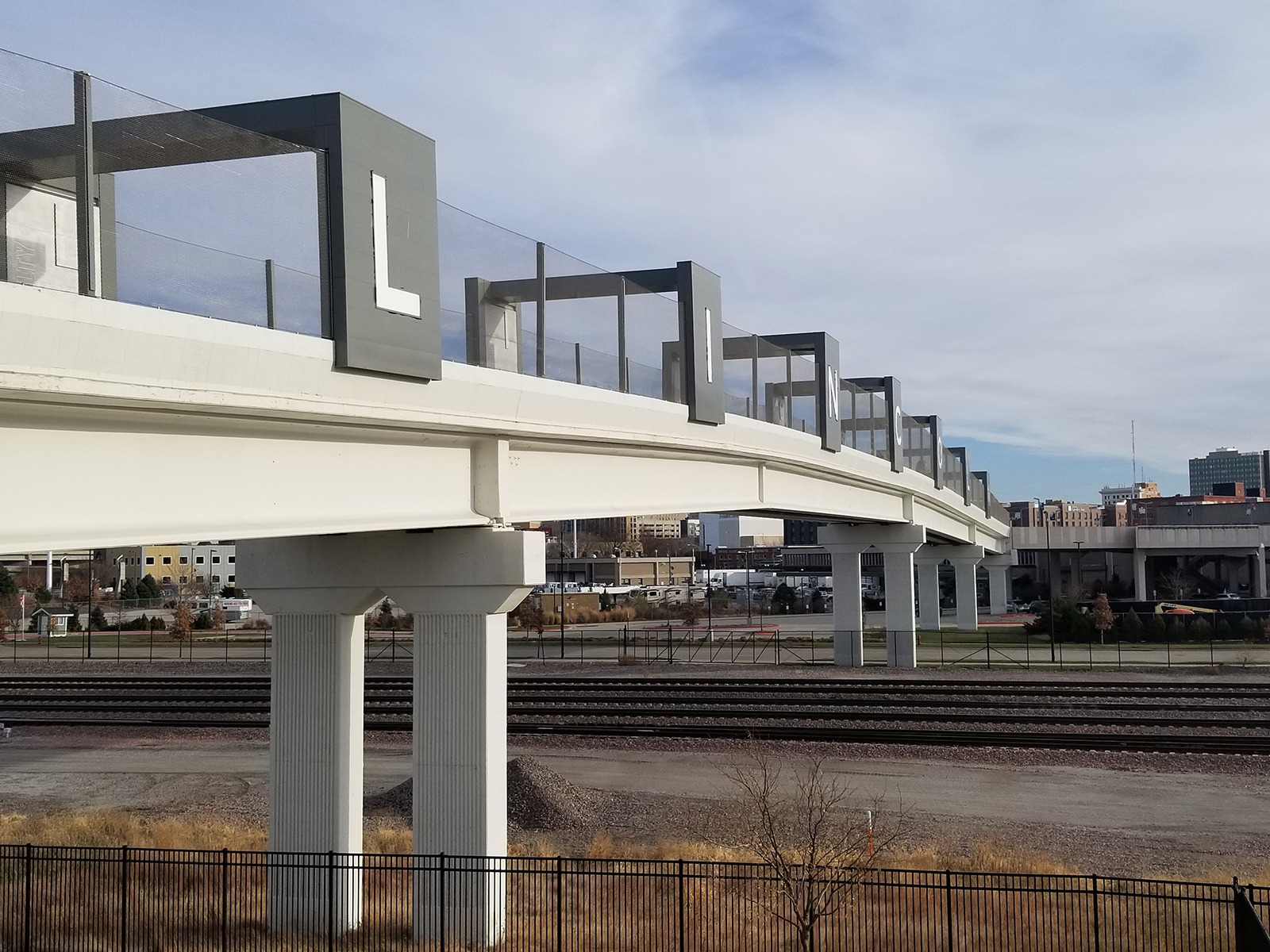

  • Pedestrian bridges and footbridges

  • City overpasses and flyovers

  • River, lake and sea-crossing bridges

  • Viewing platforms, skywalks and canyon bridges

  • Bicycle bridges and park bridges

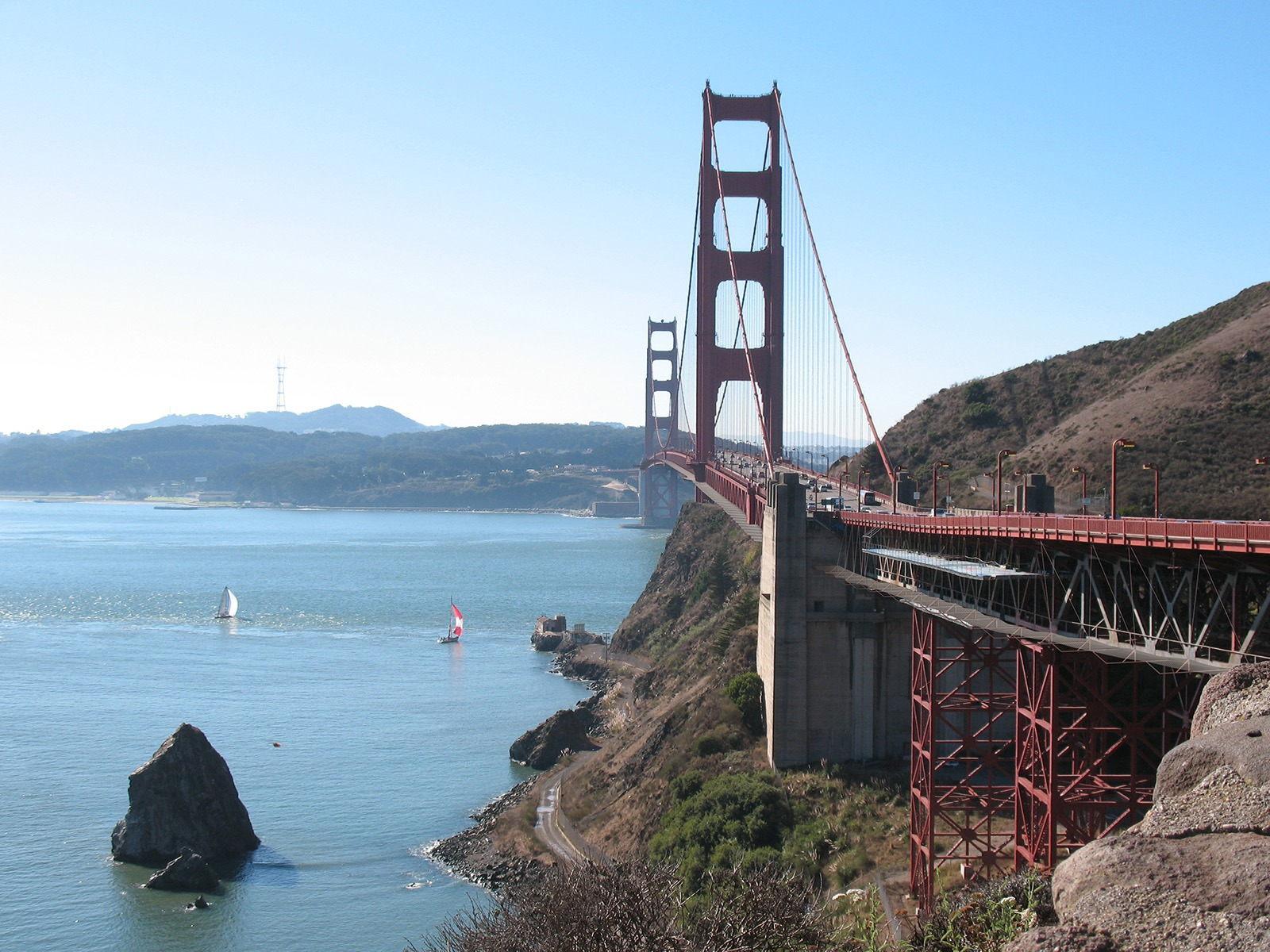

  • Anti-climb and anti-suicide safety nets along bridges

In each application, the mesh provides both safety and decoration, matching modern architectural styles.

6. Summary

Stainless steel rope mesh for bridge railings is a durable, safe and attractive solution for modern bridge design. With stainless steel wire rope braided or ferrule-connected into elegant diamond mesh, it combines long service life, high strength, good visibility and strong decorative value. Whether used on pedestrian bridges, urban overpasses or scenic river bridges, stainless steel wire rope mesh for bridge railings helps create open, secure and visually pleasing structures.
