Helideck Safety Net – Stainless Steel Rope Helimesh
Helideck safety net (rope helideck mesh / helimesh) is a stainless steel rope mesh system surrounding offshore helicopter landing deck structures to reduce accident risk and protect passengers and equipment. It offers high flexibility, tensile strength, and corrosion resistance in harsh marine environments. Note: helideck safety net is not an anti-skid landing net; the anti-skid net on the touchdown/landing area is typically a fiber/rope friction net, not stainless steel rope mesh.
304 / 316 / 304L / 316L
7×7 / 7×19
Ferrule / Knotted / Square
30+ Year Service Life
7×7 / 7×19
Ferrule / Knotted / Square
30+ Year Service Life
Rope Helimesh Advantages
- Diamond-shape openings & aesthetic appearance: visually open, clean lines that complement deck architecture.
- High flexibility: mesh aperture and rope diameter can be customized to project requirements.
- High strength: withstands snow, rain, gale; resists fatigue and impact.
- Corrosion resistance: stainless construction suitable for long-term sun and humidity exposure offshore.
- Durable & maintenance-free: service life can exceed 30 years; panels can be re-used.
Helideck Safety Net Photos

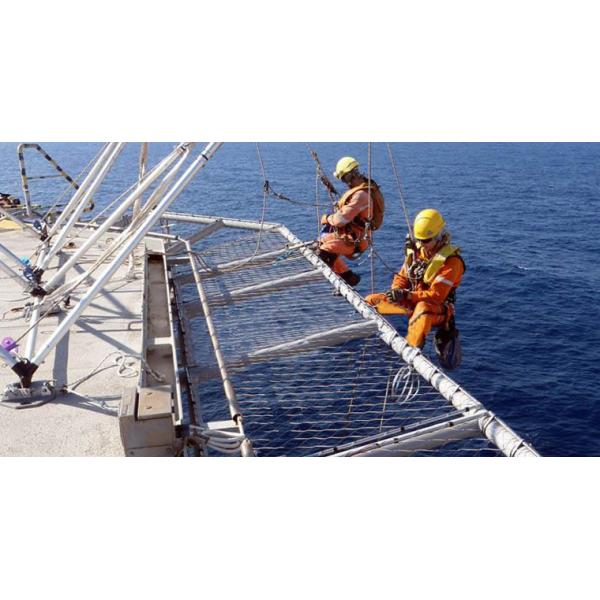

 Rope helimesh provides a landing area safeguard for safe approaches. |  Square helideck rope mesh improves safety while keeping a neat look. |  Lightweight mesh simplifies handling and installation. |
The Specification of Helideck Mesh (Diamond Openings)
- Material: Stainless steel 304, 316, 304L, 316L
- Diameter: 1.2–3.2 mm (others on request)
- Construction: 7×7 / 7×19 (also 1×7 / 1×19)
- Helimesh Type: Stainless steel ferrule rope mesh or square rope mesh
| Code | Rope Construction | Rope Diameter | Aperture (mm) | Breaking Force (kN) | |
|---|---|---|---|---|---|
| Inch | mm | ||||
| SHRM-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| SHRM-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| SHRM-03 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| SHRM-04 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
| SHRM-04 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
| SHRM-06 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| SHRM-07 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| SHRM-08 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| SHRM-09 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
| All parameters can be customized to project requirements. | |||||
Helideck Mesh (Square Openings)
| Code helimesh | Rope diameter (mm) | Rope construction | Min breaking force (kN) |
|---|---|---|---|
| SHRM-10 | 1.5 | 7 × 7 | 1.7 |
| SHRM-11 | 2.0 | 7 × 7 | 2.5 |
| SHRM-12 | 2.5 | 7 × 7 | 3.9 |
| SHRM-13 | 3.0 | 7 × 7 | 5.6 |
| SHRM-14 | 4.0 | 7 × 7 | 10.7 |
| SHRM-15 | 5.0 | 7 × 19 | 13.7 |
| SHRM-16 | 6.0 | 7 × 19 | 20.5 |
| All parameters can be customized to project requirements. | |||
Helideck safety note: The perimeter safety net is rope mesh (stainless steel). The touchdown/landing anti-skid net is typically a fiber/rope friction net, not stainless steel rope mesh.
perimeter rope helideck mesh — modular panels on a robust support frame.

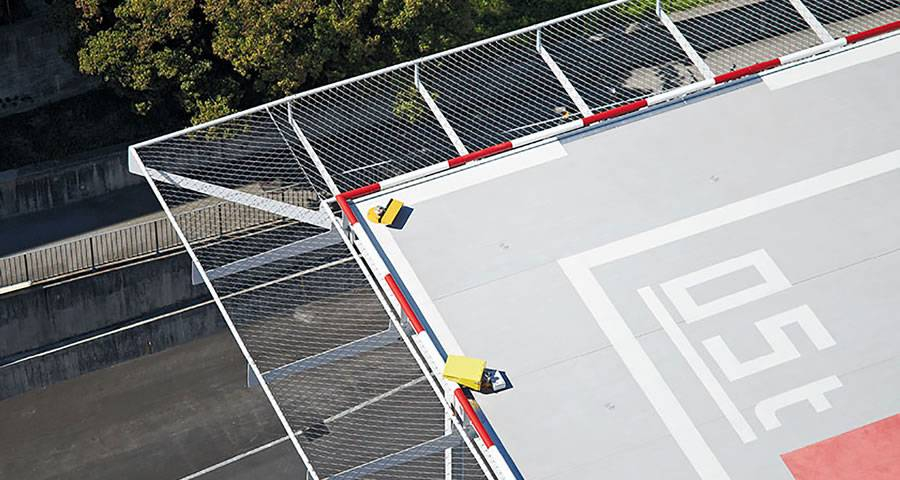

Rooftop helideck — stainless steel rope mesh perimeter for fall protection.

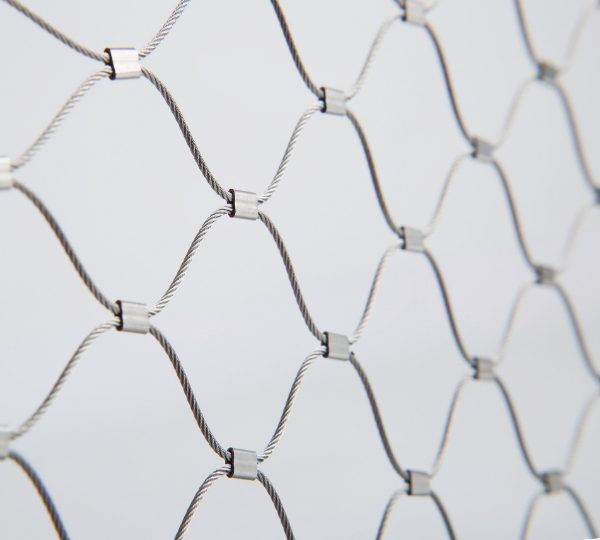

Close-up — diamond aperture ferrule mesh with smooth, snag-free finish.

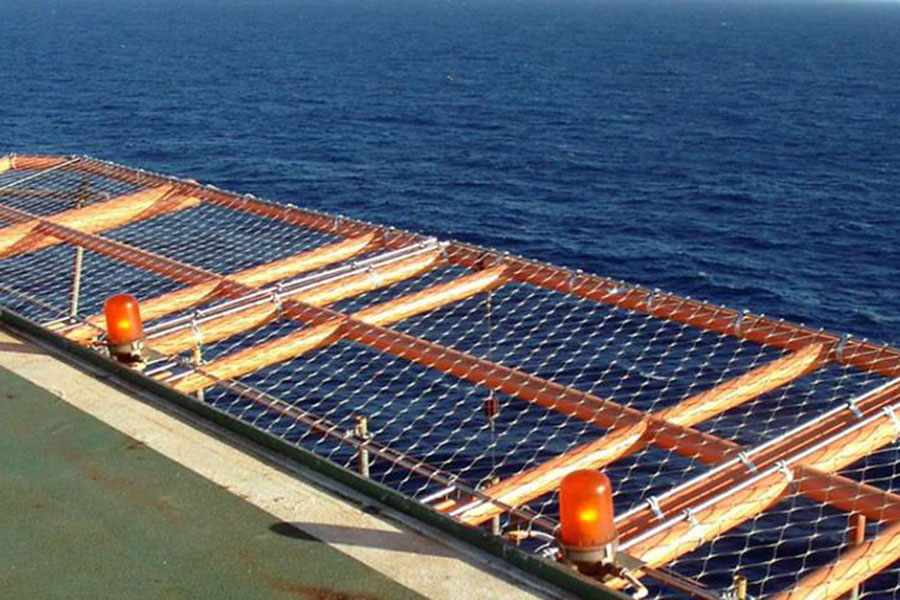

Offshore helideck — wire rope perimeter mesh providing clear views and safety.
Offshore & Rooftop Examples

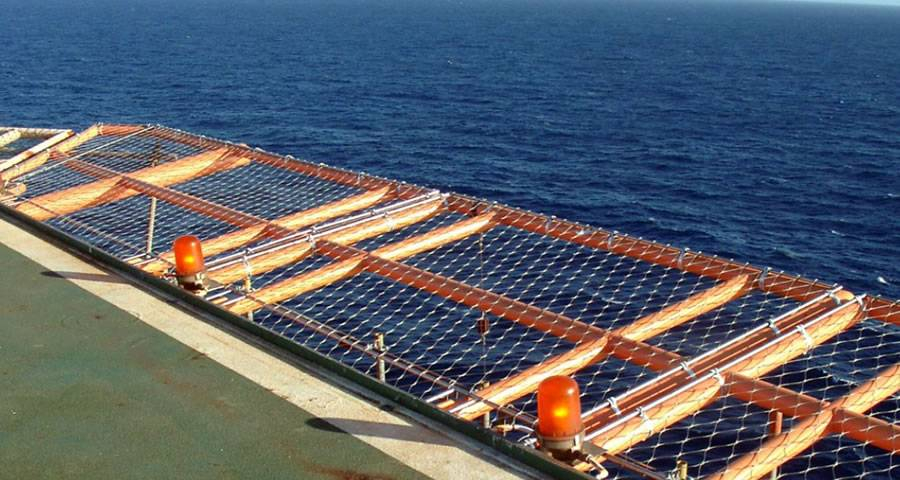

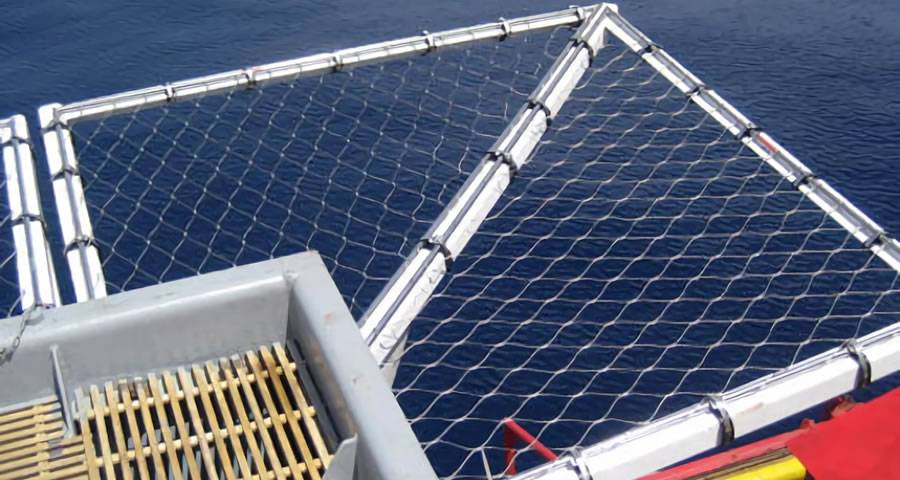

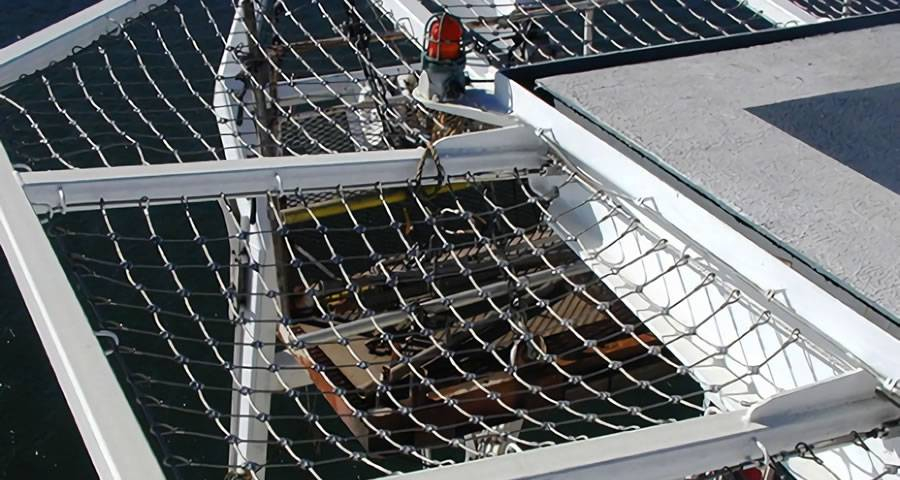

 Offshore helipad — rope perimeter safety net over open water. |  Offshore helideck — wire rope safety mesh integrated with handrails. |

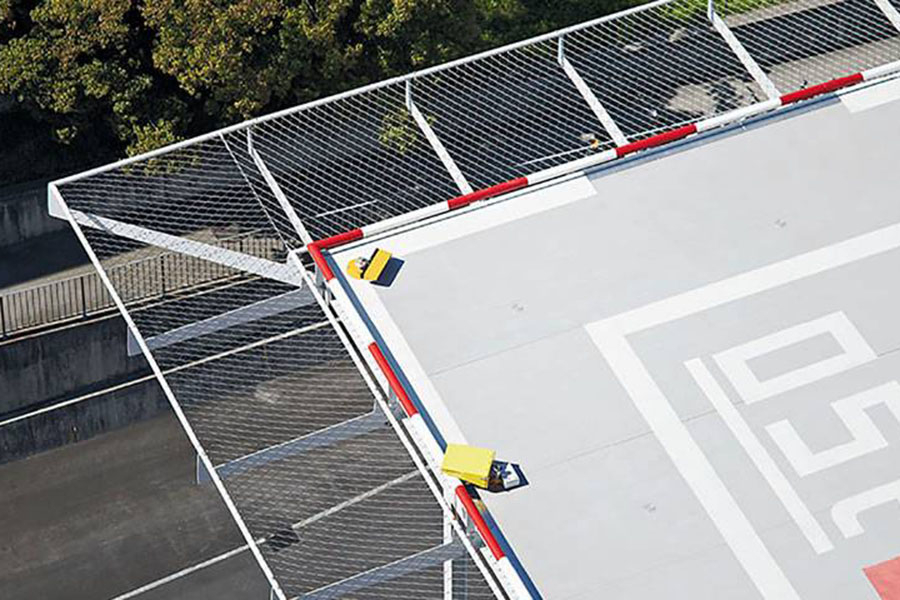

 Ferrule rope mesh — diamond aperture and smooth, snag-free ferrules. |  Rooftop helideck — rope mesh perimeter for clear views and protection. |

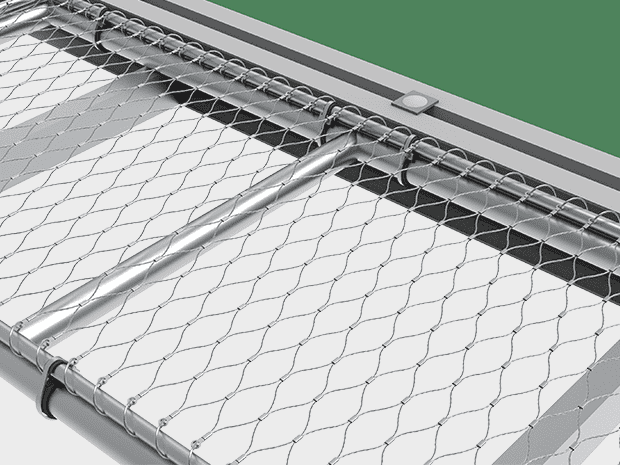

 Helideck safety net system — stainless rope mesh and frame layout. | |
Features
- Firm & durable structure
- Highest corrosion resistance
- Light weight yet high strength
- Flexible & pliable
- Easy to install, long service life
Specification (General)
- Material: Stainless steel (304/316/304L/316L)
- Rope diameter: 1.2–3.2 mm
- Rope structure: 7×7, 7×19 (also 1×7, 1×19)
- Mesh type: Ferrule/knotted, square rope mesh
- Width: ≥ 1.5 m • Border: Tubular frame
- Package: Wrapped with plastic film, packed in wooden case
Rope Mesh Types
 Wire rope ferrule mesh – flexible installation & cost-effective. |  Hand inter-woven knotted mesh – high flexibility and tensile strength. |
Connections

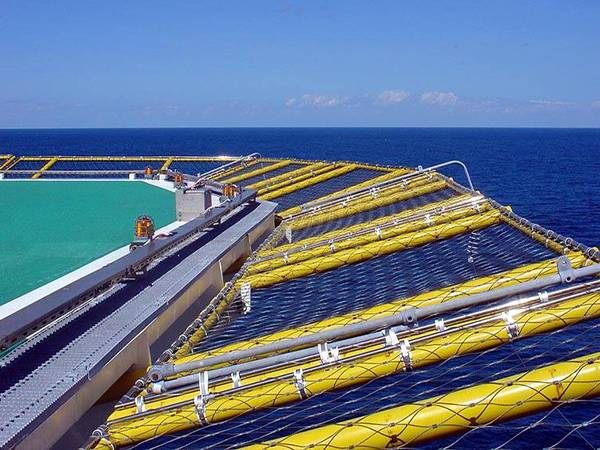

 Cable connection — stainless steel cable & clamps secure the perimeter net to the frame. |  Tie strap connection — 316 SS tie straps and buckles provide fast, reliable attachment. |

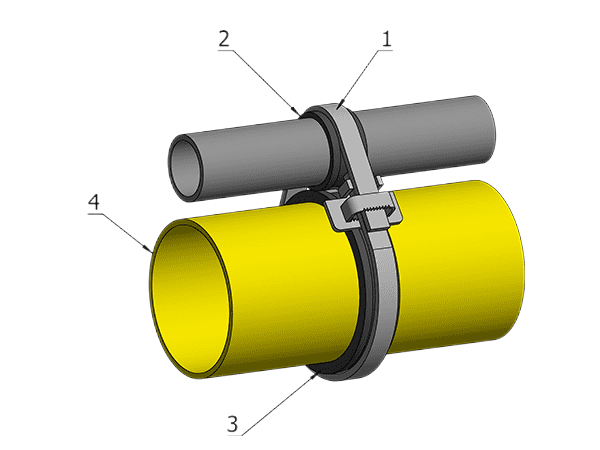

Structure & Components
- 316 stainless steel strapping and buckles
- Heliclip (fixes Heliband and support frame)
- Heliband (supports frames/tubes)
- Existing helideck perimeter structure
- Stainless steel strap tensioning tool (not shown)
 Frame connection detail | |

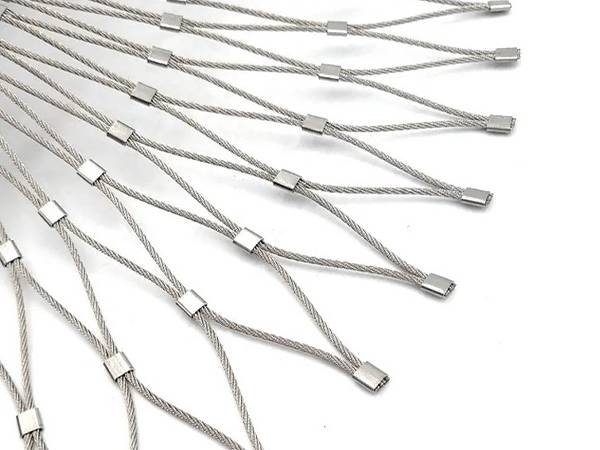

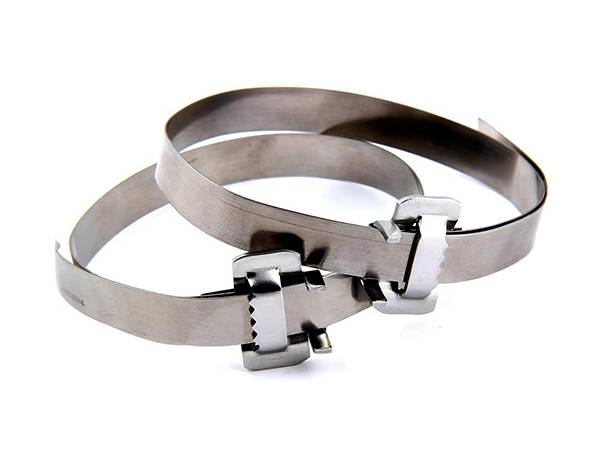

 Stainless steel rope mesh |  Stainless steel tie strap |

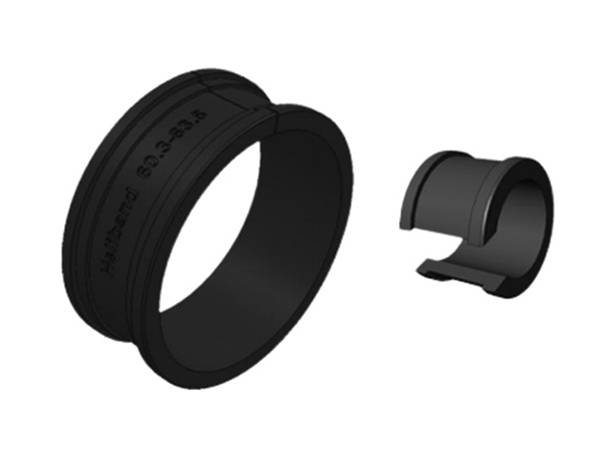

 Stainless steel buckle |  Heliclip & Heliband |

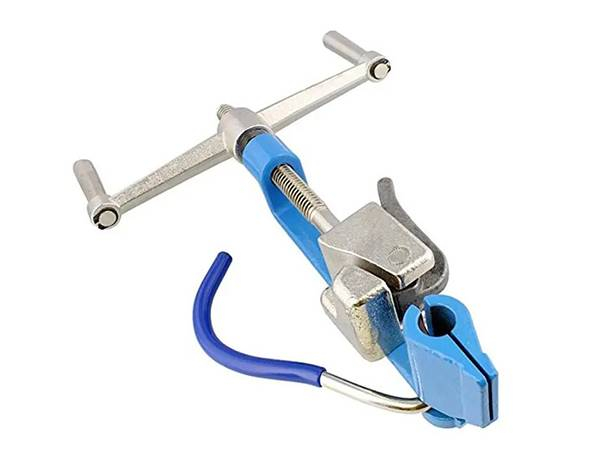

 Stainless steel tensioning tool | |
Reminder: Choose rope construction and aperture to meet project-specific load, deflection, and transparency targets. Perimeter helideck safety nets are stainless rope mesh; touchdown area friction nets are fiber-based.
