Black oxide steel ferrule rope mesh: 9 powerful benefits

Black oxide steel ferrule rope mesh is a flexible, high-strength enclosure mesh made from marine grade stainless steel cable with a matte black oxide surface finish. It is widely used for zoo enclosures, aviaries, architectural façades, balustrades and safety guarding where designers need both safety and a dark, low-reflection visual effect.

The mesh is fabricated from high-grade stainless steel wire rope in material classes 1.4401, AISI 316, AISI 316L. After forming, the surface receives a black oxide treatment, giving the mesh a deep black color that blends perfectly with surroundings, reduces glare and looks elegant in modern architecture.

1. Material & Surface Finish

• Base material:
  • Stainless steel 1.4401 / AISI 316 / AISI 316L
  • Excellent resistance to rust, chemicals and marine environments
• Surface finish:
  • Black oxide stainless steel finish
  • Matte, non-reflective surface – ideal for zoos, theatres, museums, bridges and façades
  • Enhances corrosion protection and improves appearance compared with plain bright stainless
• Cable diameter range:
  • From 1.2 mm to 3.2 mm
  • Typical sizes: 1.2, 1.5, 1.6, 2.0, 2.4, 3.0, 3.2 mm
• Mesh aperture range (W×H):
  • From 20 mm to 200 mm, or larger upon request
  • Opening size is selected according to animal type, fall-protection requirements or façade design

2. Ferrule Rope Mesh Construction

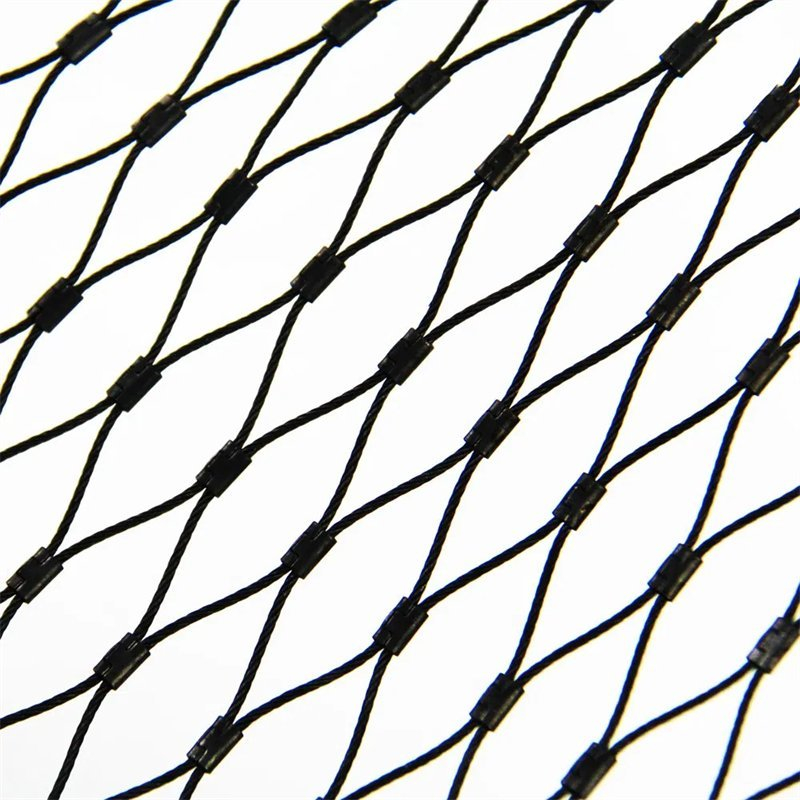

Black oxide steel ferrule rope mesh is a ferrule type flexible cable mesh:

• Structure:
  • Stainless steel wire ropes are laid diagonally and connected by stainless steel ferrules at every crossing.
  • This forms a diamond-shaped rhombus mesh, very flexible in one direction and can be tensioned in another.
• Ferrules:
  • Made from stainless steel and treated to match the black oxide finish.
  • Provide neat, uniform nodes and stable geometry.
• Mesh behaviour:
  • Can be bent, curved and draped around complex structures.
  • When tensioned, it becomes a stable, load-bearing net panel.

3. Technical Specifications (Ferrule Type )

4. Types: Ferruled and Plaited (Woven) Black Oxide Cable Mesh

For black oxide steel cable mesh, you offer two main structures:

1. Ferruled black oxide steel ferrule rope mesh
   • Stainless cables joined with metal ferrules.
   • Very dimensionally stable, easy to install on frames and tensioning systems.
   • Ideal for large zoo enclosures, bridges and façade nets.
2. Plaited (woven) black oxide cable mesh
   • Cables are manually woven and crossed without ferrules.
   • Very flexible and smooth surface appearance.
   • Often used in decorative railings, stair balustrades, and interior design.

Both types can be produced in black oxide finish, so the designer can choose based on appearance, budget and installation method.

5. Advantages of Black Oxide Steel Ferrule Rope Mesh

Mechanical & Safety Advantages

• High strength and toughness
  – Stainless steel cables with high tensile load capacity, suitable for large animals, fall protection and crowd safety.
• Low elongation and excellent impact resistance
  – Mesh can absorb impacts while still keeping its shape.
• Free-angle curving and folding
  – The mesh can follow curved, inclined or irregular structures easily.
• Snow, wind and weather resistant
  – Designed to withstand heavy snow loads, strong winds and storms without damage.

Durability & Corrosion Resistance

• Anti-corrosive, rust-resistant stainless steel base material.
• Black oxide finish adds extra surface protection and a longer aesthetic life.
• Suitable for outdoor, coastal and marine projects.

Aesthetic & Visual Advantages

• Matte black, low-glare appearance
  – Reduces reflection under strong sunlight and spotlights, perfect for zoos and architectural lighting.
• Discreet and elegant
  – Black mesh visually disappears, so visitors focus on animals or the building, not the barrier.
• Wide design freedom
  – Different apertures, panel shapes and edge details possible.

Environmental & Safety Advantages

• Non-toxic, no harmful coatings
• Resists chewing by rodents and other animals.
• No loose sharp edges, safe for animals, staff and visitors.
• Fully recyclable stainless steel, environmentally friendly.

6. Typical Applications of Black Oxide Steel Ferrule Rope Mesh

• Zoo enclosures for big cats, primates, herbivores and small mammals
• Aviaries and bird cages, including large walk-through aviaries
• Animal parks, wildlife parks and ocean parks
• Bridge, stair and balcony balustrades with dark, minimal visual impact
• Stadiums and sports arenas – fall protection and barrier nets
• Architectural façades and suspended safety nets
• Green façades and climbing plant supports
• Helipad safety nets and high-level fall-protection nets
• Anti-suicide nets in public buildings, car parks and bridges

Because of the black oxide finish, the mesh is especially popular where designers want a “disappearing” safety barrier that does not reflect light or disturb the view.

7. Why Choose Our Black Oxide Steel Ferrule Rope Mesh

• 100% QC inspection before shipment to ensure consistent quality.
• Factory direct supply – competitive price with controlled quality, not a trading middleman.
• Fast response – professional communication and quick quotation based on your drawings or data.
• Full customization – as long as you provide the specifications, we can produce the mesh you need.
• After-sales guarantee – if there is any quality problem with the products you receive, we support returns or replacement.
• Flexible payment options – such as T/T, Western Union and Escrow.
• Samples available – free mesh samples can be provided (courier cost borne by the customer).
