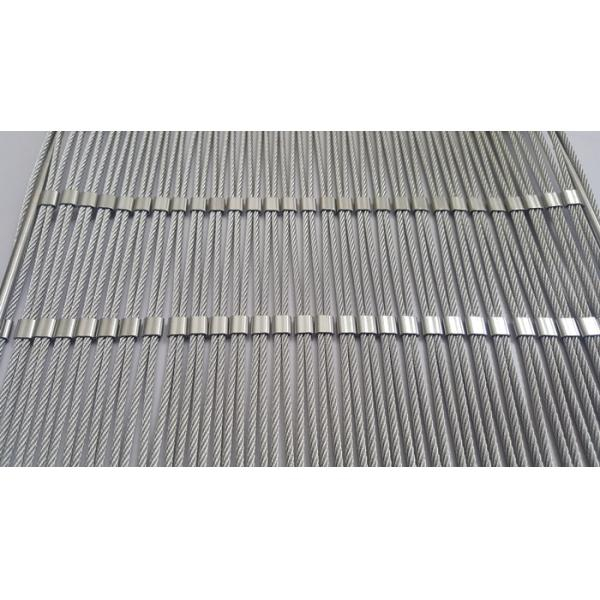

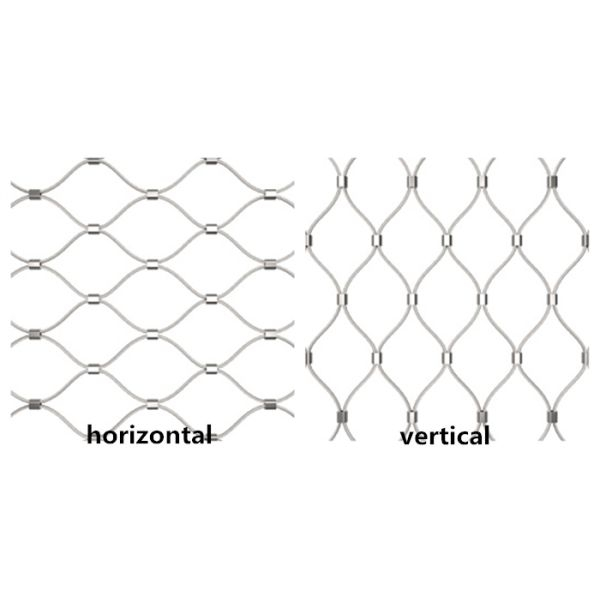

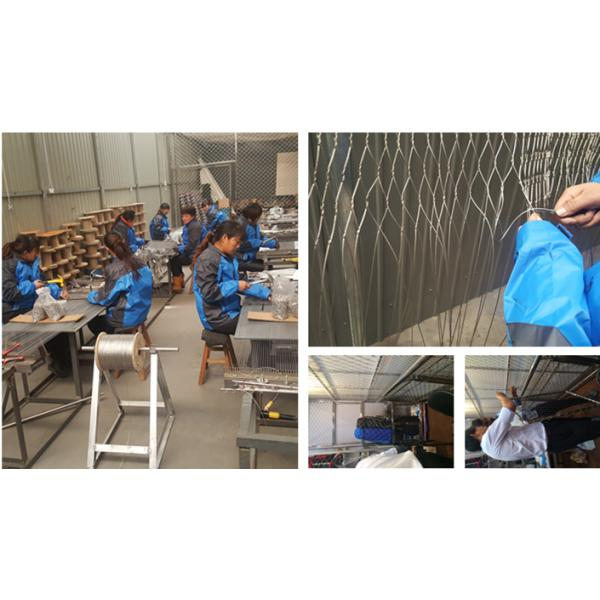

Flexible stainless steel wire rope mesh is the future of enclosure and safety infill materials. It is manufactured from high-grade stainless steel cables in material class AISI 304, AISI 304L, AISI 316 or AISI 316L and is available as knotted mesh or ferrule mesh. The mesh can be installed in either a vertical or horizontal direction. Each panel is hand woven from stainless steel wire. Common mesh sizes range from 20 mm × 20 mm to 300 mm × 300 mm with stainless cable diameters from 1.0 mm to 4.0 mm, allowing architects and designers to select the right specification for their required loads. Because the mesh opening and panel size are infinitely customizable, it can be produced exactly to your project dimensions, no matter how large or how small.
Webnet Micro – Rope Ø 1.5 mm (AISI 316)| Item No. | Rope Ø (mm) | Mesh aperture W × H (mm) | Weight (kg/m²) | Rope length (m/m²) | Number of sleeves (pcs/m²) | Light transmission (%) |
|---|
| 20261-0150-025 | 1.5 | 25 × 45.46 | 1.84 | 88 | 1822 | 83.8 |
| 20261-0150-030 | 1.5 | 30 × 60.73 | 1.28 | 73 | 1105 | 87.2 |
| 20261-0150-035 | 1.5 | 35 × 67.98 | 1.20 | 62 | 855 | 89.3 |
| 20261-0150-040 | 1.5 | 40 × 75.40 | 0.85 | 55 | 663 | 90.7 |
| 20261-0150-050 | 1.5 | 50 × 91.39 | 0.64 | 44 | 451 | 92.7 |
| 20261-0150-060 | 1.5 | 60 × 107.78 | 0.50 | 38 | 315 | 93.8 |
| 20261-0150-070 | 1.5 | 70 × 124.78 | 0.47 | 32 | 232 | 94.8 |
| 20261-0150-080 | 1.5 | 80 × 141.45 | 0.34 | 29 | 189 | 95.3 |
| 20261-0150-100 | 1.5 | 100 × 175.34 | 0.30 | 22 | 126 | 96.5 |
| 20261-0150-120 | 1.5 | 120 × 210.36 | 0.24 | 18 | 85 | 97.2 |
| 20261-0150-140 | 1.5 | 140 × 244.98 | 0.20 | 16 | 60 | 97.5 |
| 20261-0150-160 | 1.5 | 160 × 280.10 | 0.17 | 14 | 46 | 97.8 |
| 20261-0150-180 | 1.5 | 180 × 314.33 | 0.14 | 14 | 39 | 97.8 |
| 20261-0150-200 | 1.5 | 200 × 348.51 | 0.13 | 11 | 33 | 98.3 |
| 20261-0150-250 | 1.5 | 250 × 435.60 | 0.12 | 9 | 22 | 98.6 |
| 20261-0150-400 | 1.5 | 400 × 694.10 | 0.07 | 6 | 12 | 99.1 |
Webnet Micro – Rope Ø 2.0 mm (AISI 316)| Item No. | Rope Ø (mm) | Mesh aperture W × H (mm) | Weight (kg/m²) | Rope length (m/m²) | Number of sleeves (pcs/m²) | Light transmission (%) |
|---|
| 20261-0200-040 | 2.0 | 40 × 74.93 | 1.54 | 55 | 663 | 89.0 |
| 20261-0200-050 | 2.0 | 50 × 91.11 | 1.16 | 44 | 451 | 91.2 |
| 20261-0200-060 | 2.0 | 60 × 107.54 | 0.92 | 38 | 315 | 92.4 |
| 20261-0200-070 | 2.0 | 70 × 124.10 | 0.74 | 32 | 232 | 93.6 |
| 20261-0200-080 | 2.0 | 80 × 141.03 | 0.65 | 29 | 189 | 94.2 |
| 20261-0200-100 | 2.0 | 100 × 175.16 | 0.48 | 22 | 126 | 95.6 |
| 20261-0200-120 | 2.0 | 120 × 209.78 | 0.37 | 18 | 85 | 96.4 |
| 20261-0200-140 | 2.0 | 140 × 244.11 | 0.32 | 16 | 60 | 96.8 |
| 20261-0200-160 | 2.0 | 160 × 278.29 | 0.27 | 14 | 46 | 97.2 |
| 20261-0200-180 | 2.0 | 180 × 313.20 | 0.26 | 14 | 39 | 97.4 |
| 20261-0200-200 | 2.0 | 200 × 348.40 | 0.21 | 11 | 33 | 97.8 |
| 20261-0200-250 | 2.0 | 250 × 435.20 | 0.17 | 9 | 22 | 98.2 |
| 20261-0200-400 | 2.0 | 400 × 693.00 | 0.11 | 6 | 12 | 98.8 |
Product Features:
- 1. Easy to install with good flexibility, flexible stainless steel wire rope mesh adapts to complex terrain, curved structures and different installation angles.
- 2. All parameters of the stainless steel cable net, including mesh aperture, rope diameter and panel size, can be manufactured according to customer requirements.
- 3. Made of high-quality stainless steel wire, the mesh has strong corrosion resistance, light weight, high tensile strength and can remain stable even under extreme conditions.
- 4. Service life can reach several decades, and the maintenance cost of flexible stainless steel wire rope mesh is very low.
- 5. The decorative stainless steel cable net has elegant diamond-shaped openings, a clean and modern appearance and is easy to clean.
Stainless steel cable net applications:

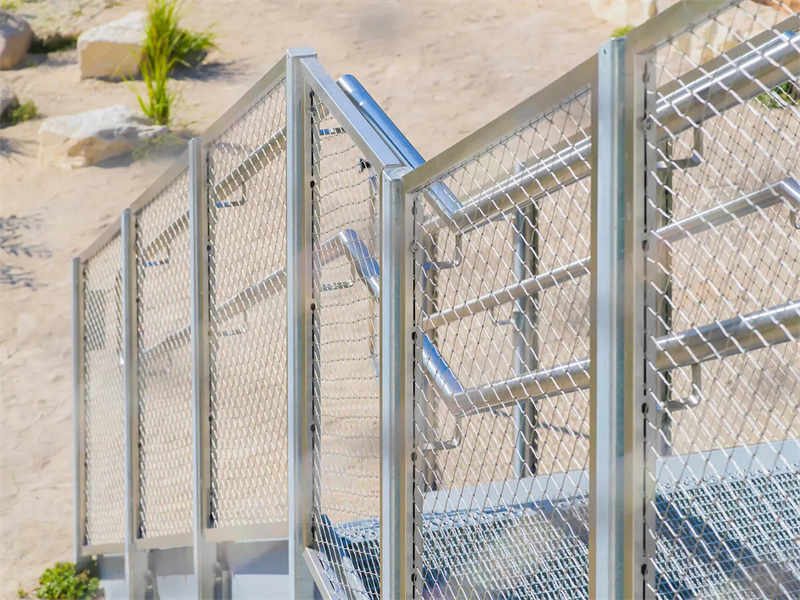

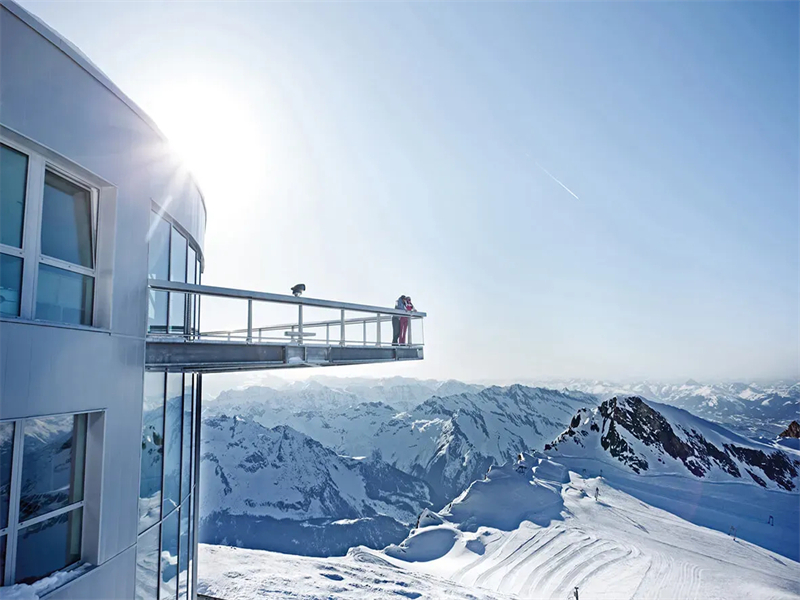

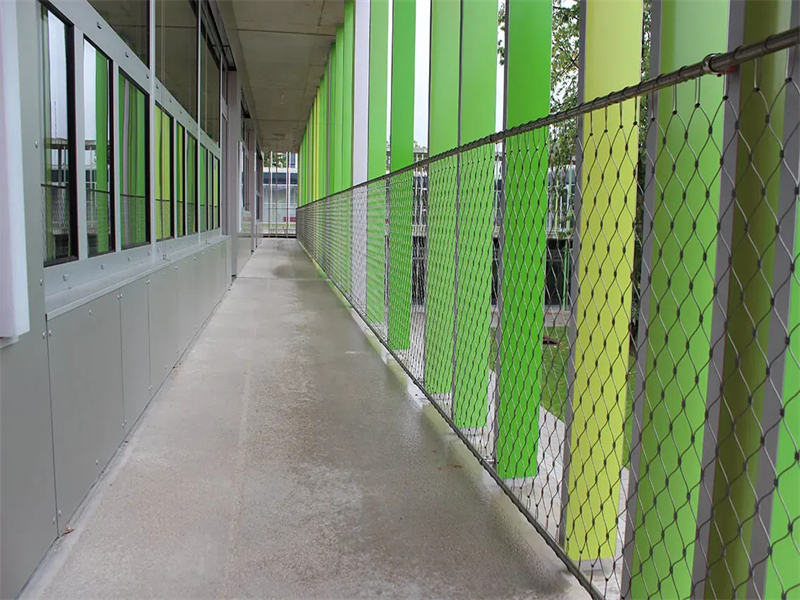

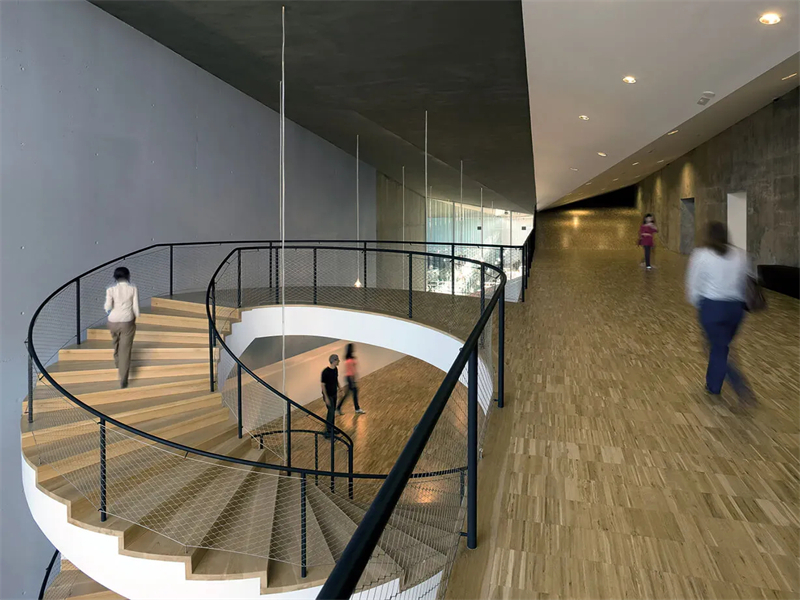

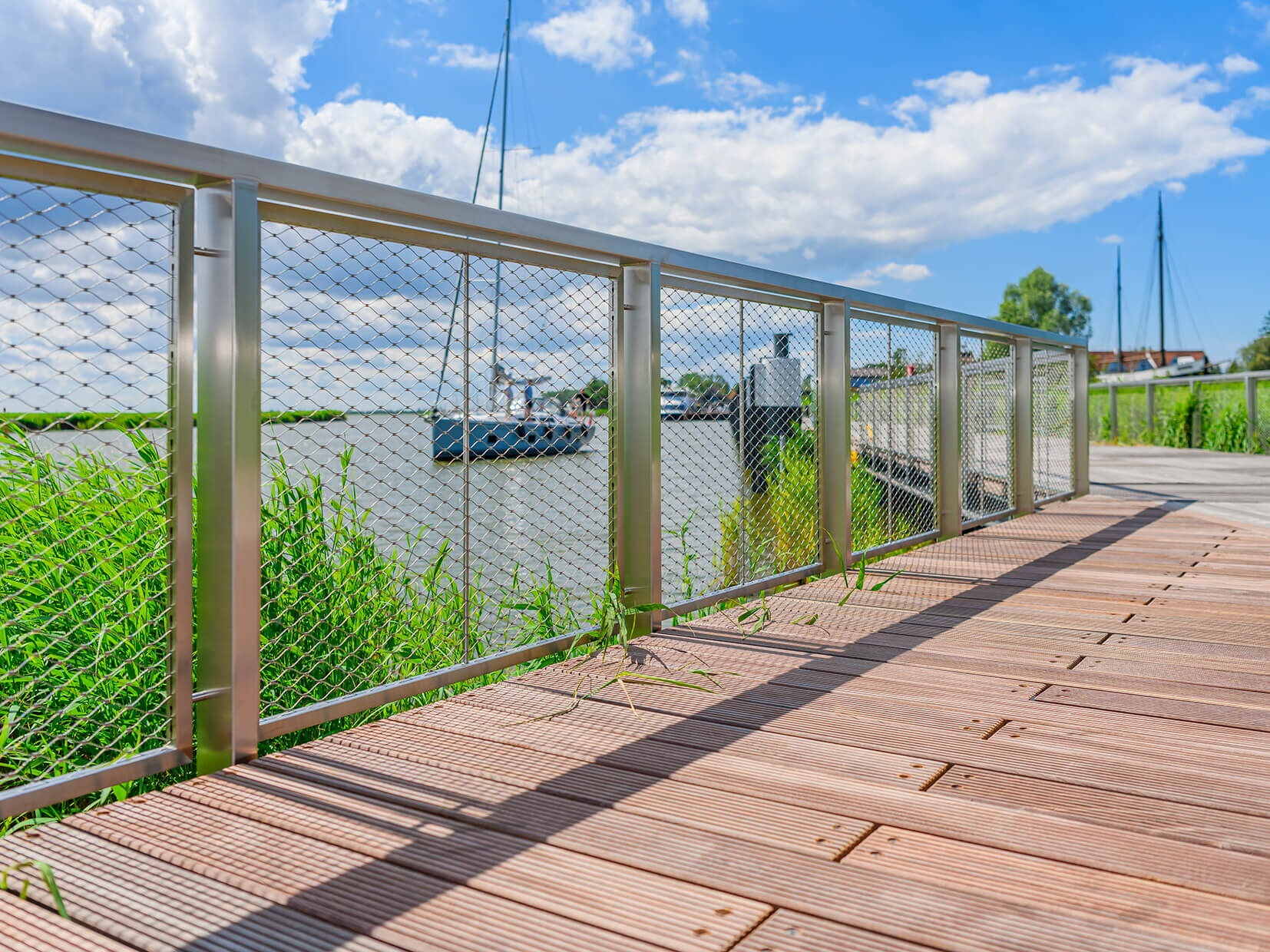

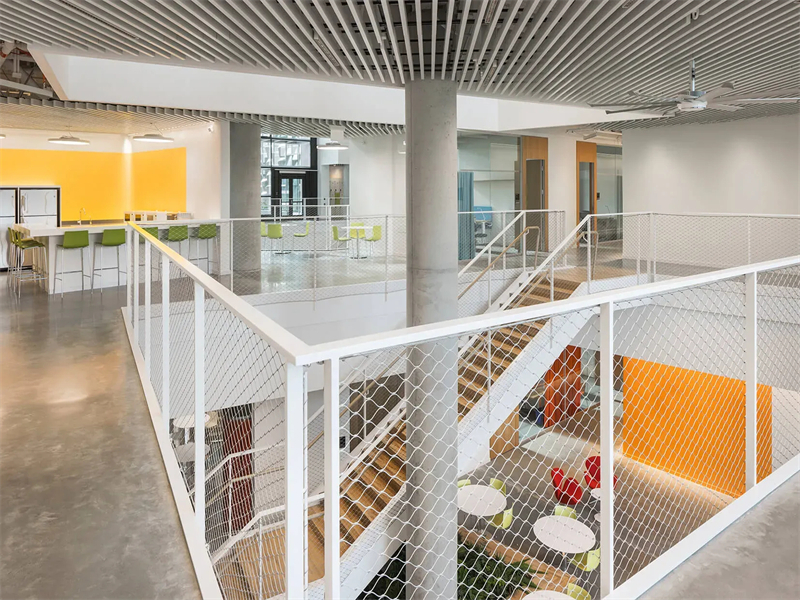

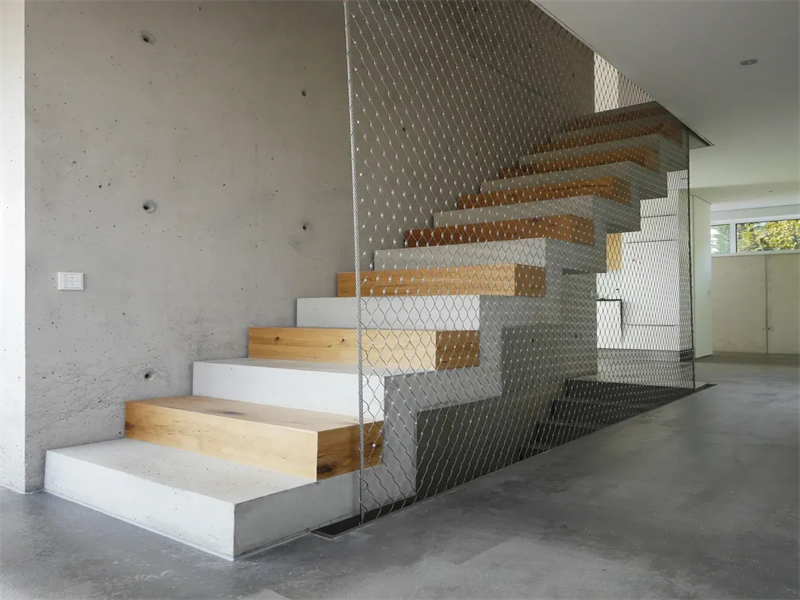

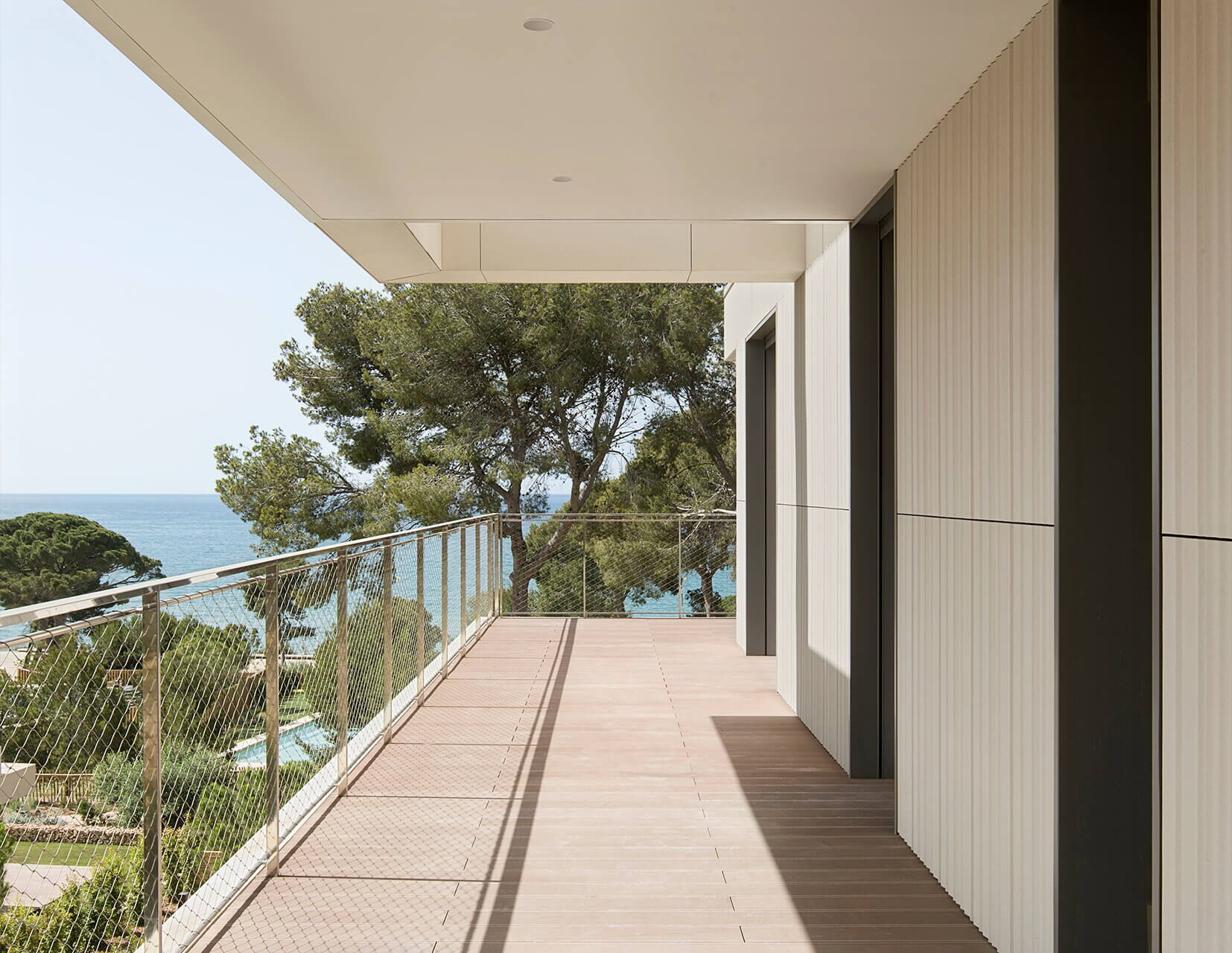

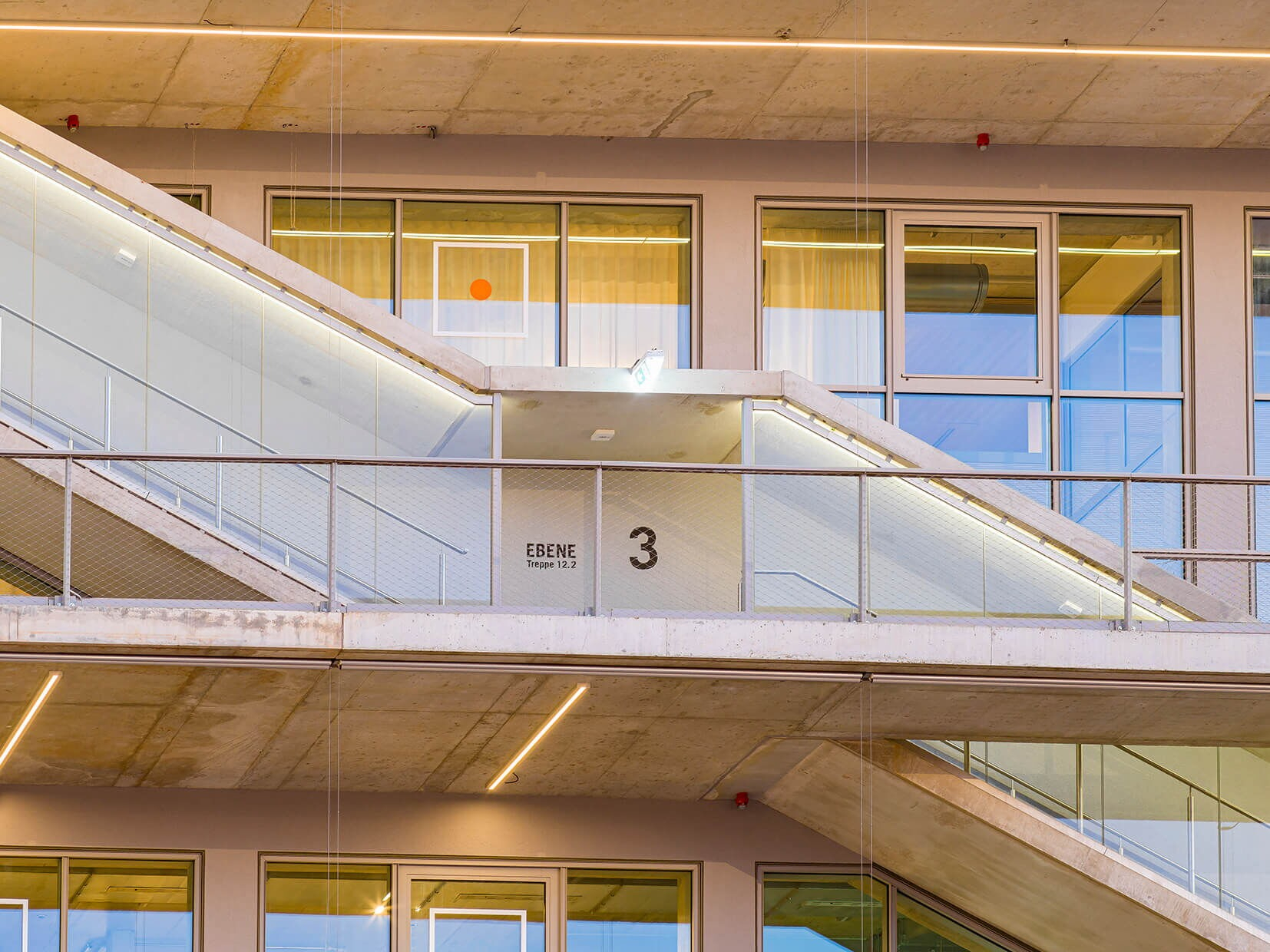

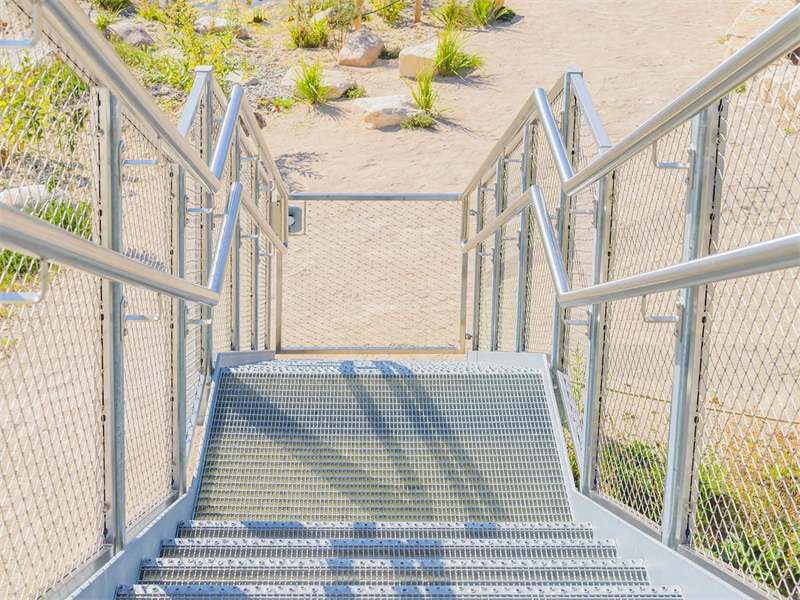

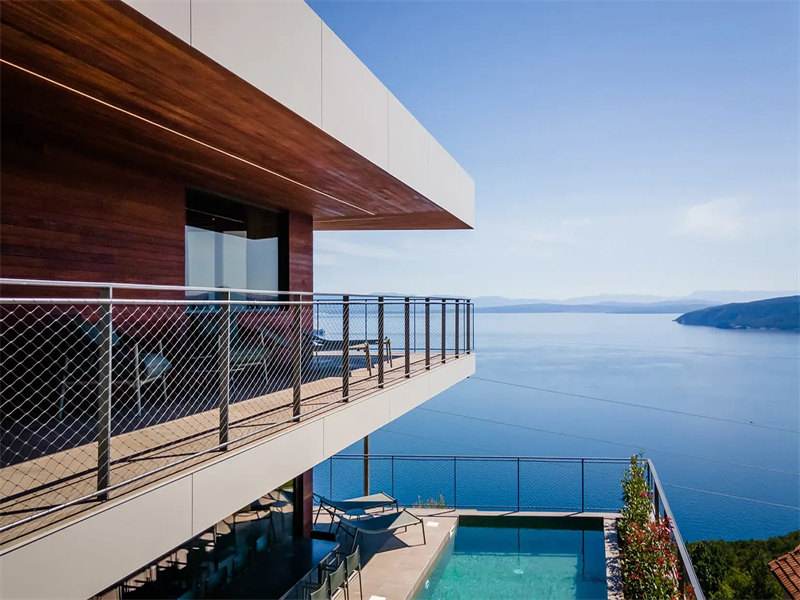

Flexible stainless steel wire rope mesh has excellent flexible performance and a very wide range of applications, including balustrade infill, zoo and aviary animal enclosures, façade and bridge safety nets, stadium and sports barrier nets, plant trellis rope mesh, fall protection, safety fencing and decorative art structures. Because of its high flexibility, it can be applied to almost all complex terrain and irregular spaces.

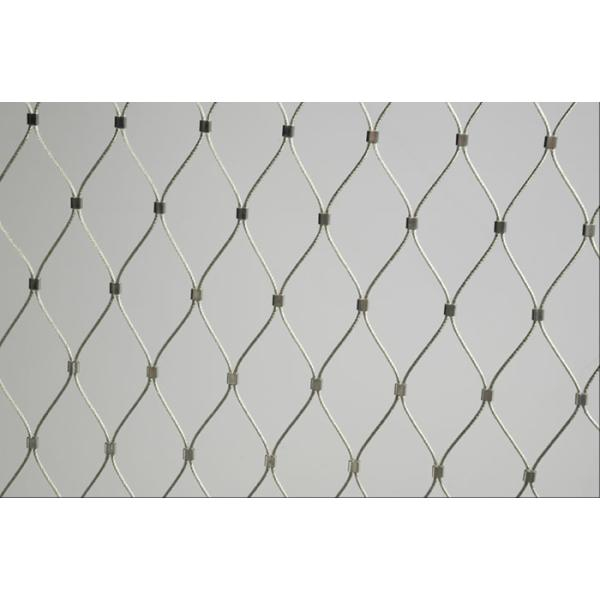

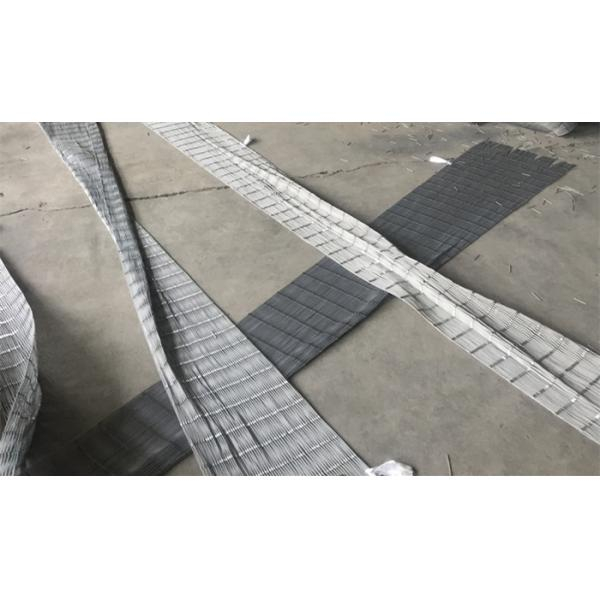

Products show:
Packing details:

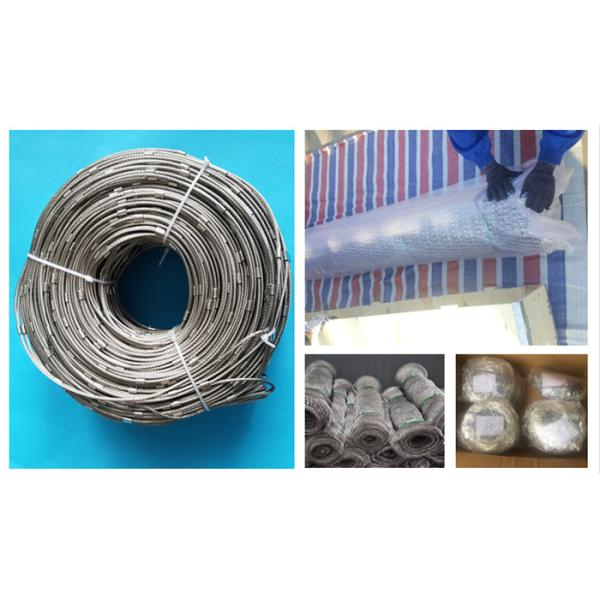

Flexible stainless steel wire rope mesh is normally supplied in rolls. Each roll is wrapped and then packed into strong wooden cases or cartons to protect the mesh during transportation and handling.
